Gigabyte GA-AX370M-DS3H (rev. 1.x) [14/42] 4 cpu_fan sys_fan1 fan headers

• Be sure to connect fan cables to the fan headers to prevent your CPU and system from

overheating. Overheating may result in damage to the CPU or the system may hang.

• Thesefanheadersarenotcongurationjumperblocks.Donotplaceajumpercapontheheaders.

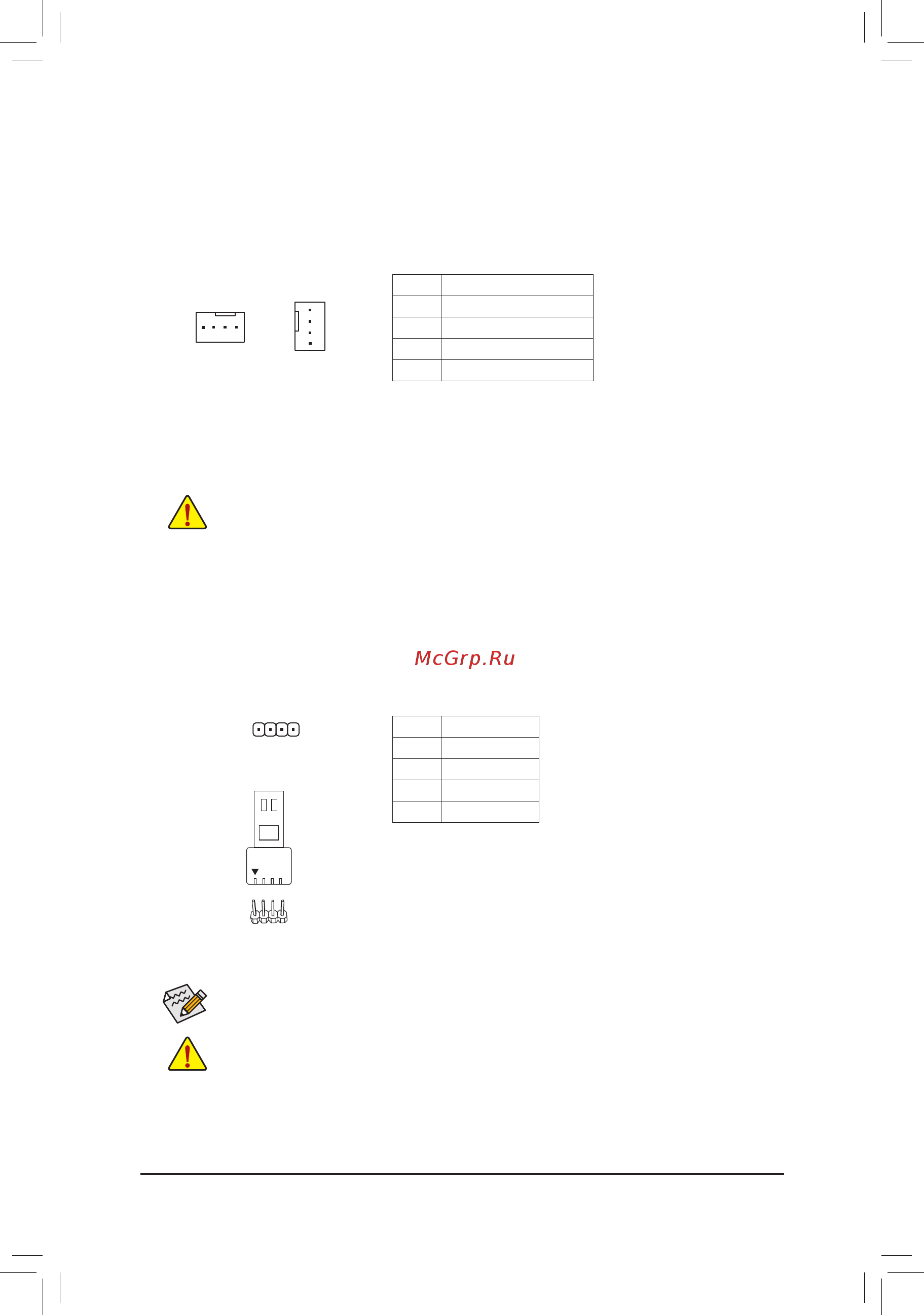

3/4) CPU_FAN/SYS_FAN1 (Fan Headers)

All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.

When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire

is the ground wire). The motherboard supports CPU fan speed control, which requires the use of a CPU

fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be

installed inside the chassis.

 Theheadercanbeusedtoconnectastandard5050RGBLEDstrip(12V/G/R/B),withmaximumpower

rating of 2A (12V) and maximum length of 2m.

Pin No. Denition

1 12V

2 G

3 R

4 B

Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

For how to turn on/off the lights of the LED strip, refer to the instructions on in Chapter 2, "BIOS

- 14 -
