- 12 -

7) CLR_CMOS (Clear CMOS Jumper)

Use this jumper to clear the BIOS conguration and reset the CMOS values to factory defaults. To clear

the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

• Always turn off your computer and unplug the power cord from the power outlet before clearing the CMOS values.

• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or manually

congure the BIOS settings (refer to Chapter 2, "BIOS Setup," for BIOS congurations).

Open: Normal

Short: Clear CMOS Values

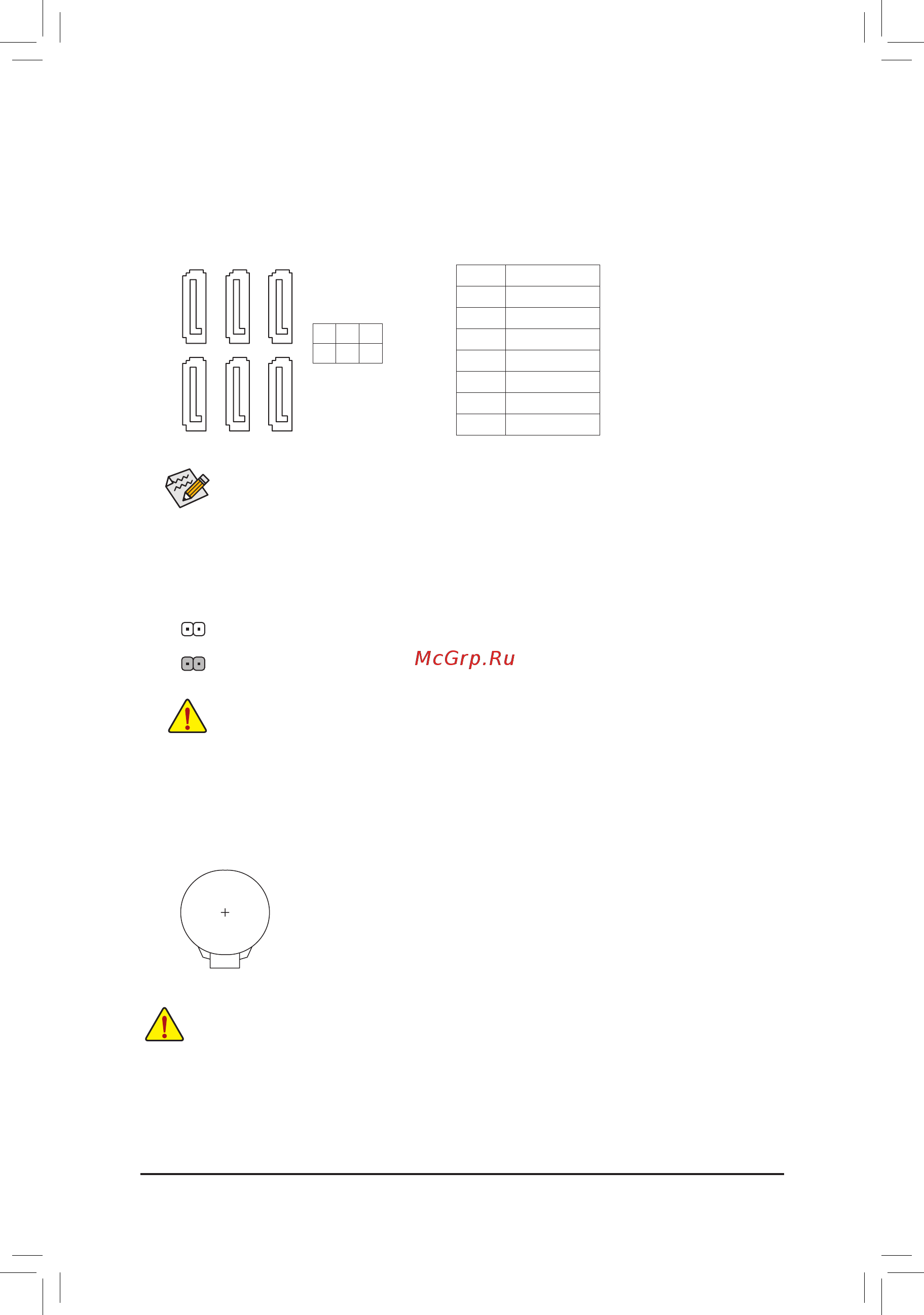

6) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors)

The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA

1.5Gb/s standard. Each SATA connector supports a single SATA device. The AMD South Bridge supports

RAID 0, RAID 1, RAID 5, RAID 10, and JBOD. Refer to Chapter 3, "Conguring a RAID Set," for instructions

on conguring a RAID array.

To enable hot-plugging for the SATA ports, refer to Chapter 2, "BIOS Setup," "Peripherals\SB SATA

Conguration," for more information.

Pin No. Denition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

8) BAT (Battery)

The battery provides power to keep the values (such as BIOS congurations) in the CMOS when the

computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS

values may not be accurate or may be lost.

0 2 4

1 3 5

7 7 7

1 1 1

DEBUG

PORT

G.QBOFM

DEBUG

PORT

G.QBOFM

DEBUG

PORT

G.QBOFM

DEBUG

PORT

G.QBOFM

DEBUG

PORT

G.QBOFM

DEBUG

PORT

G.QBOFM

SATA3

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

2. Gently remove the battery from the battery holder and wait for one minute. (Or use a metal

object like a screwdriver to touch the positive and negative terminals of the battery holder,

making them short for 5 seconds.)

3. Replace the battery.

4. Plug in the power cord and restart your computer.

• Always turn off your computer and unplug the power cord before replacing the battery.

• Replace the battery with an equivalent one. Damage to your devices may occur if the battery is replaced with an

incorrect model.

• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain

about the battery model.

• When installing the battery, note the orientation of the positive side (+) and the negative side (-) of the battery (the

positive side should face up).

• Used batteries must be handled in accordance with local environmental regulations.
