(except for QP-320)
11
Model No. Output Tol. R&N Effi. Max.
TP-100A 5V, 3.0~15A ±3% 100mV 75% 101W
12V, 0.4~5.0A ±7% 120mV
-5V, 0.0~1.0A ±6% 100mV
TP-100B 5V, 3.0~15A ±3% 100mV 78% 105W
12V, 0.4~5.0A ±6% 120mV
-12V, 0.0~1.0A ±6% 100mV
TP-100C 5V, 3.0~15A ±3% 100mV 77% 104W
15V, 0.4~4.0A +10%,-6% 150mV
-15V, 0.0~1.0A ±6% 100mV
TP-100D 5V, 3.0~15A ±3% 100mV 78% 105W
24V, 0.4~3.0A ±8% 150mV
12V, 0.0~1.0A ±6% 100mV
Model No. Output Tol. R&N Effi. Max.
TP-75A 5V, 1.5~10A ±3% 100mV 70% 74W
12V, 0.2~4.0A ±4% 120mV
-5V, 0.0~0.6A ±8% 100mV
TP-75B 5V, 1.5~10A ±3% 100mV 70% 76W
12V, 0.2~4.0A ±4% 120mV
-12V, 0.0~0.6A ±8% 120mV
TP-75C 5V, 1.5~10A ±3% 100mV 70% 75W
15V, 0.2~3.0A ±4% 120mV
-15V, 0.0~0.6A ±8% 120mV
TP-75D 5V, 1.5~10A ±3% 100mV 70% 76W
24V, 0.2~2.5A ±4% 120mV
12V, 0.0~0.6A ±8% 120mV
TP-7503 5V, 1.5~10A ±3% 100mV 70% 75W
3.3V, 0.2~8.0A ±4% 50mV
12V, 0.0~0.6A ±8% 120mV
100WŇTriple Output
75WŇTriple Output
Features
• Universal AC input / Full range
• Protections: Short circuit / Overload /
Over voltage / Over temperature
• Over temperature protection
(200~320W built-in, option for 100W and 150W)
• Built-in active PFC function
• Cooling by free air convection (75W / 100W)
• Forced air cooling by built-in DC fan
(150W / 200W / 320W)
• 3 years warranty
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. TP-75 TP-100
TP-150
QP-150
QP-200 QP-320
AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.)
Cold start,
20A at 230VAC
Cold start,
40A at 230VAC
Cold start,
50A at 230VAC
Cold start,
45A at 230VAC
DC adjustment range
CH1:
-5%~+10% rated output voltage
CH1: -5%~+10% rated output voltage
(CH1&2 for QP-150-3x, QP-150-D/F)
CH1&2:
-5%~+10% rated output voltage
Overload
protection
Range 105%~150%
Type Hiccup mode, auto-recovery
Constant current
limiting,
auto-recovery
Fold back current
limiting,
auto-recovery
Over voltage protection CH1: 115%~135% 115%~135% for CH1 or CH1&2
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 2kVAC, O/P - FG:0.5kVAC, 1 minute
Working temperature -10~+60°C (refer to output derating curve) -10~+70°C
Setup, rise, hold up time
800ms, 60ms, 36ms at full
load and 230VAC
800ms, 60ms, 24ms at full load
and 230VAC(TP-100/150);
800ms, 50ms, 24ms at full load
and 230VAC (QP-150)
800ms, 50ms, 24ms
at full load and
230VAC
800ms, 50ms, 16ms
at full load and
230VAC
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection
8P/7.62mm
pitch terminal block with cover
9P/7.62mm
pitch terminal block with cover
9P/9.5mm
pitch terminal block with cover
Dimension (LxWxH)(mm) 179x 99x 33 199x 99x 50 215x 115x 50
Case No. 920A 916A 916B 912B
912I

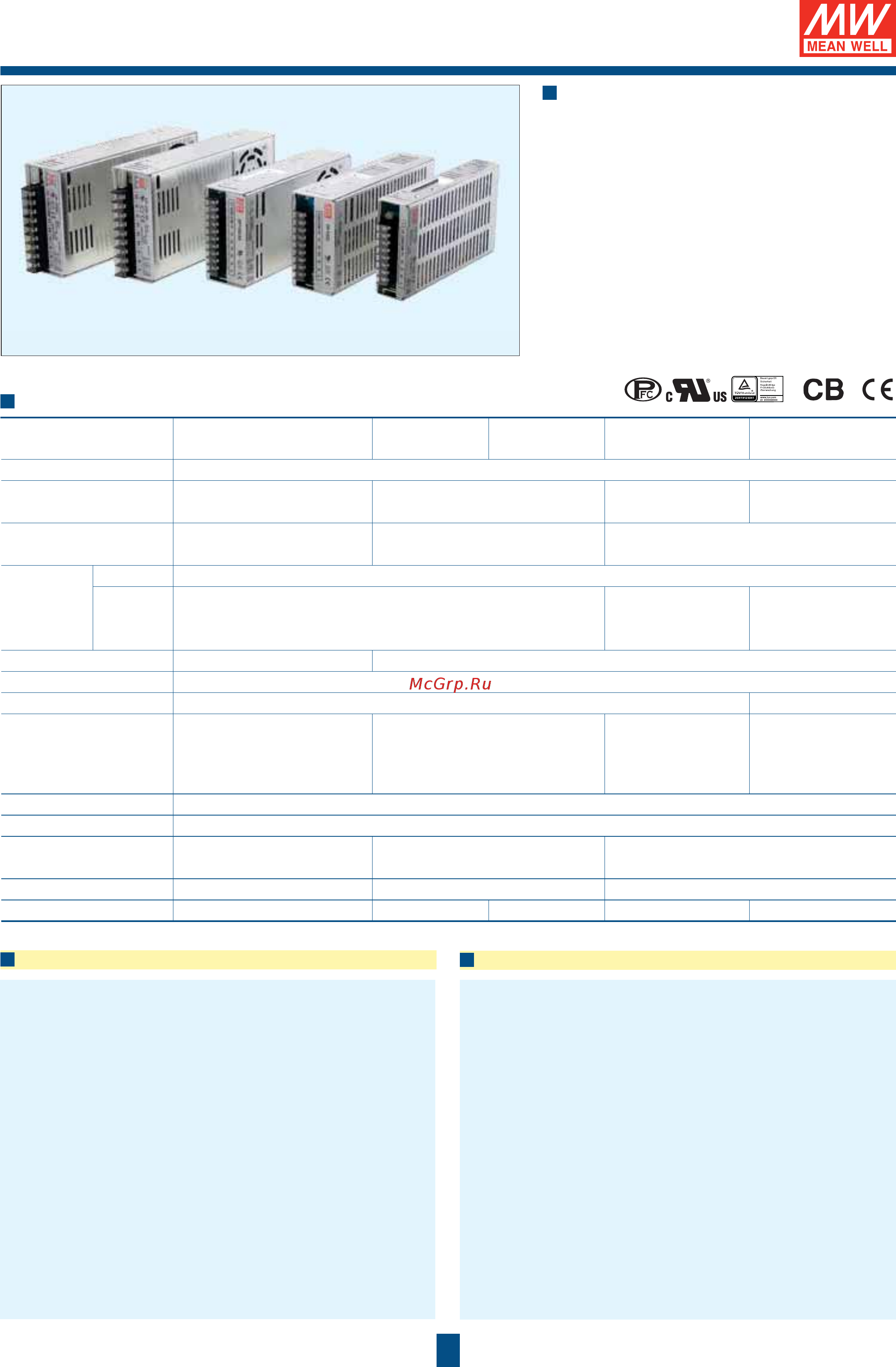

TP-75TP-100TP-150
QP-150
QP-200QP-320
75~320W 3~4 Output
Enclosed-PFC
