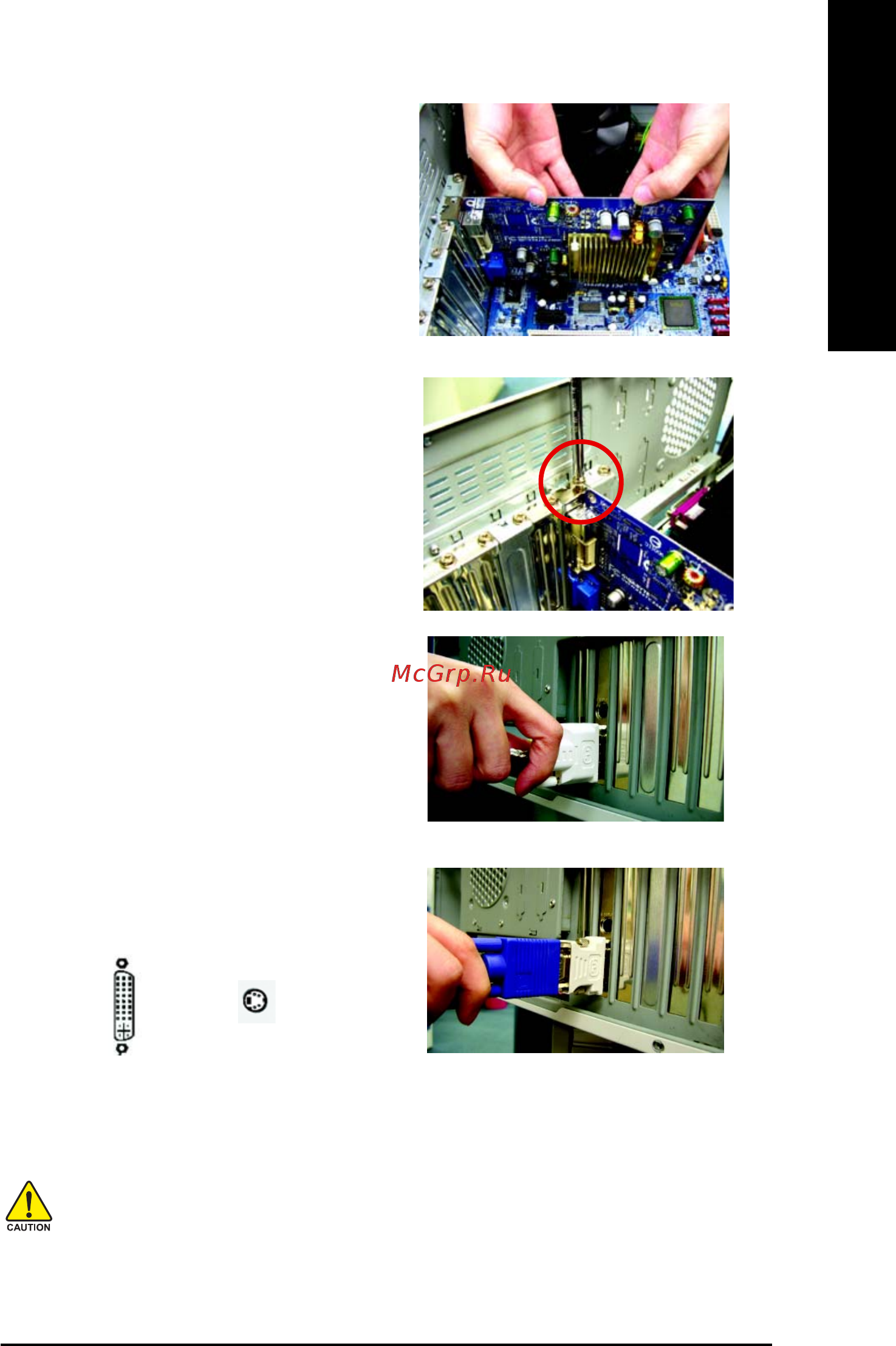

To install your new graphics card:

1. Locate the PCI Express x 16 slot. If

necessary, remove the metal cover from this

slot; then align your graphics card with the

PCI Express x 16 slot, and press it in firmly

until the card is fully seated.

2. Replace the screw to fasten the card in place,

and replace the computer cover.

You are now ready to proceed with the installation of the graphics card driver. Please

refer to next chapter for detailed instructions.

Warning!

To avoid system instability, do not touch the graphics card when it is runnnig .

3. Plug the display cable into your graphics

card; then turn on the computer and monitor.

To connect a flat panel directly to your graphics

card, use the DVI-I connector. To connect a

VGA monitor to the DVI-I connector, plug

the DVI-I to D-sub adapter into the DVI-I

connector, then plug the monitor cable into

the adapter.

Connect a flat panel

To Flat Panel Display

To TV or VCR
