Software Installation- 13 -
English

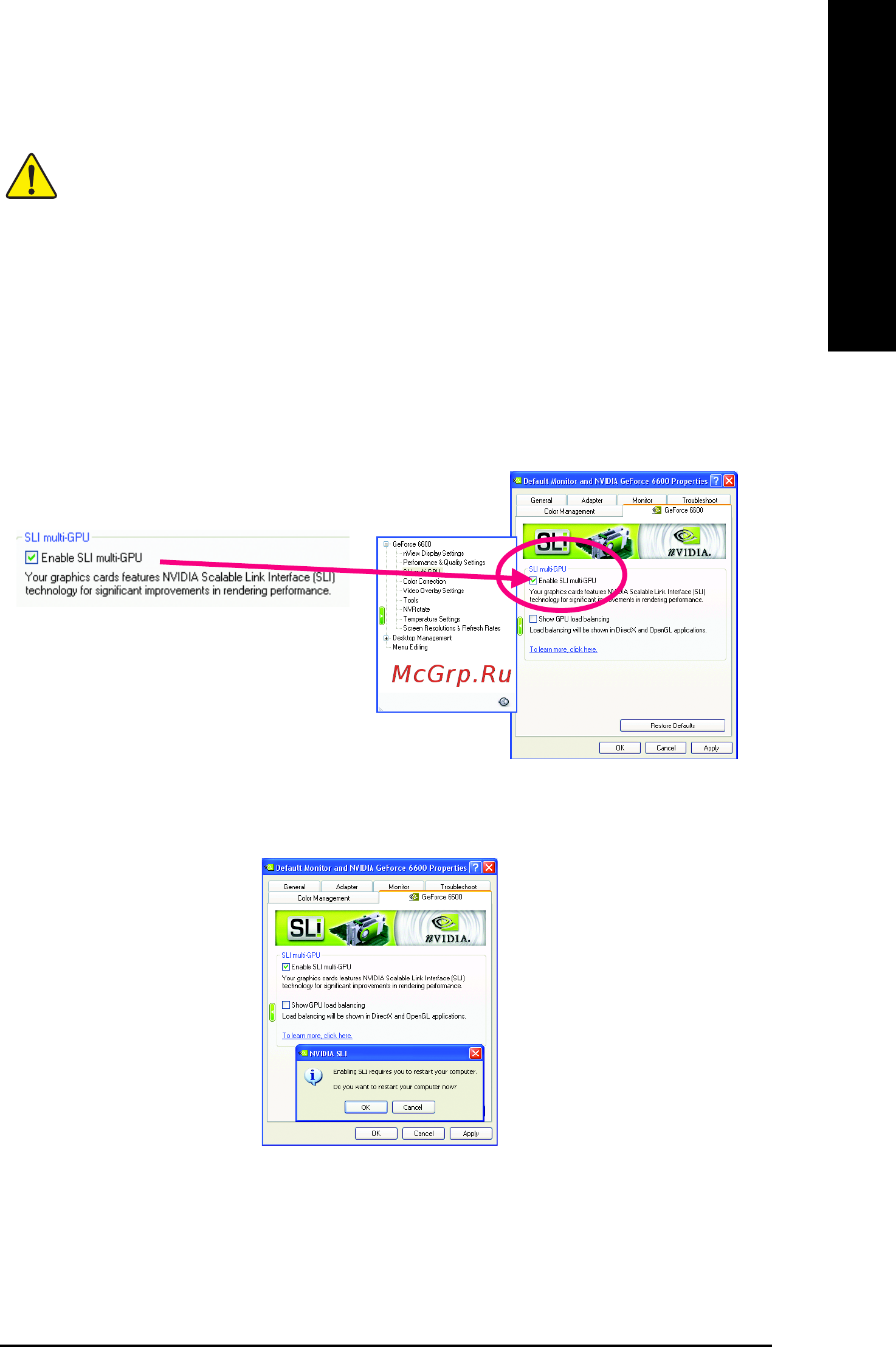

3.1.4. Enabling the dual GeForce 6600 GPUs
Step 1: Right-click on Desktop and select Properties. When Display Properties dialog
box appears, select the Settings tab. In Settings, click the Advanced button.
Step 2: Click the Geforce 6600 tab when advanced properties dialog box appears.Select
SLI multi-GPU from the side menu and select the Enable SLI multi-GPU check box and
click Apply.
Step 3: Restart your system when prompted.
Select the Enable SLI multi-GPU check
box
Important After installation of the GV-3D1-XL graphics driver, assure that the dual
6600 GPUs are enabled* by following the steps below.
"*" Only Windows XP operating system supports the dual GPUs mode. Please do not
enable SLI multi-GPU in Windows 2000.
