Hardware Installation- 7 -

English

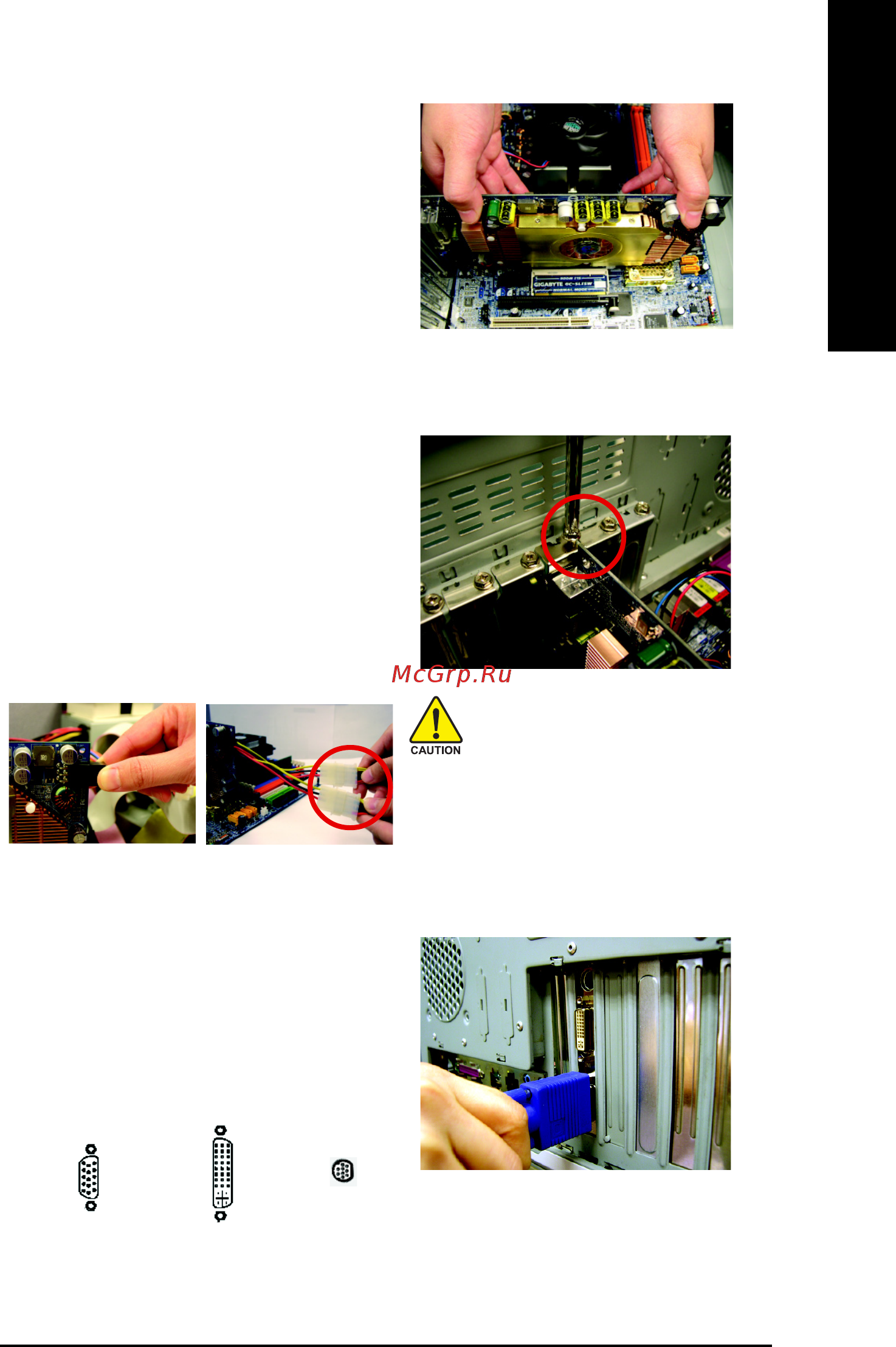

5. When Normal Mode is enabled, only the

first PCI Express x 16 slot (PCIE_16_1) is

available (please refer to the motherboard

user's manual). Locate the PCIE_16_1 slot.

If necessary, remove the metal cover from

this slot; then align your graphics card with

the PCI Express x 16 slot, and press it in

firmly until the card is fully seated.

6. Replace the screw to fasten the card in place,

and replace the computer cover.

7. Plug the display cable into your card; then

turn on the computer and monitor. If your

graphics card came with a DVI-I connector,

you can connect a flat panel display to the

appropriate connector, as shown below...

You are now ready to proceed with the installation of the graphics card driver. Please

refer to next chapter for detailed instructions.

To TV/VCR

To VGA Monitor

To Flat Panel Display

After installation, you must connect

the power cable to your GV-3D1-XL

graphics card (connect the black power

connector to the graphics card and both of

the two white power connectors to the

power supply), or system will not boot.
