BIOS Setup - 68 -

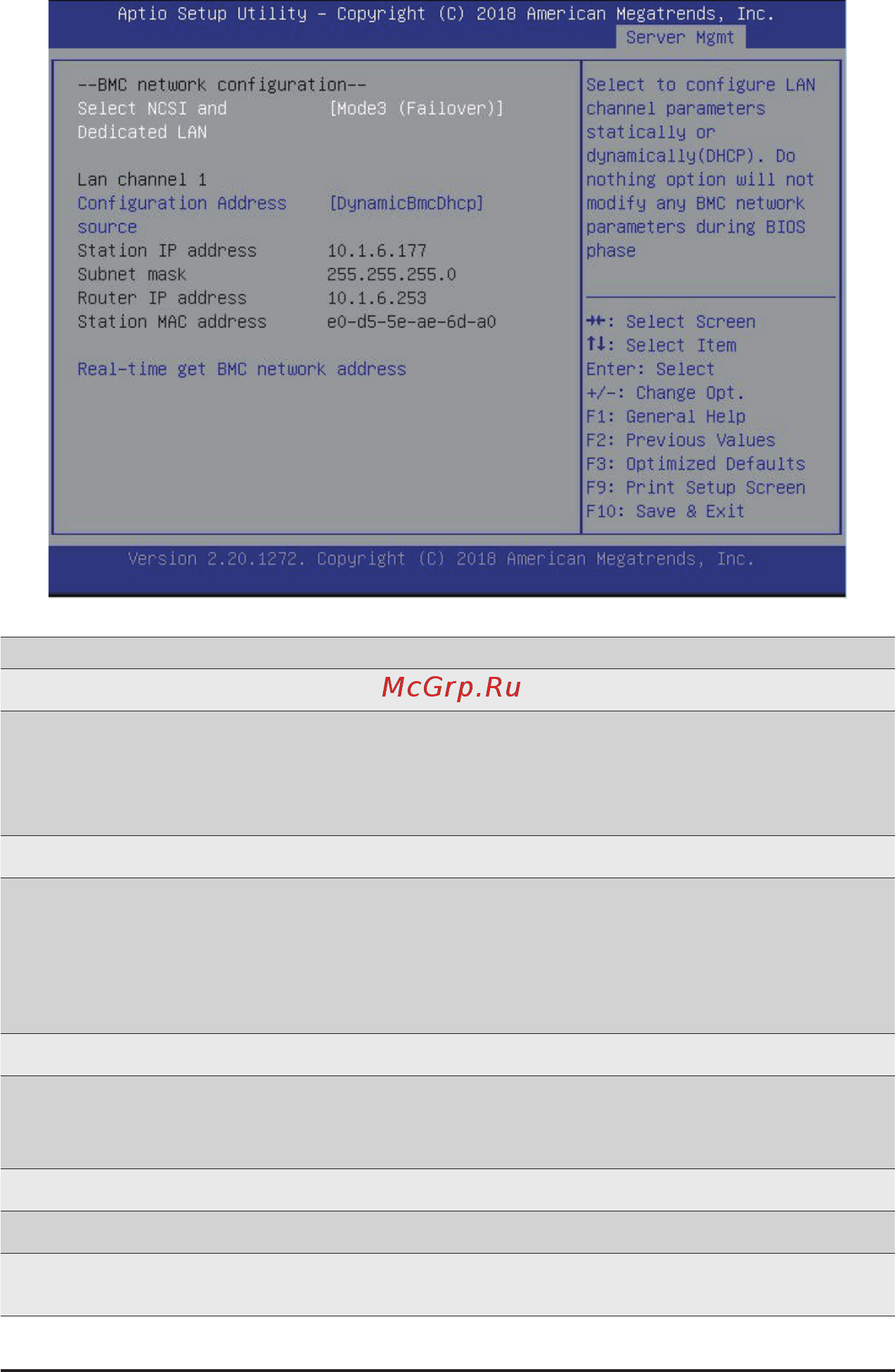

5-7-4 BMC Network Conguration
Parameter Description
BMC network conguration
Select NCSI and Dedicated
LAN
Switch NCSI and dedicated LAN and send KCS command.
Options available: Do Nothing/Mode1 (Dedicated)/Mode2(NSCI)/Mode3
(Failover).
Default setting is Mode1 (Dedicated).
Lan Channel 1
Conguration Address source
Select to congure LAN channel parameters statically or dynamically
(DHCP). Do nothing option will not modify any BMC network parameters
during BIOS phase.
Options available: Unspecied/Static/DynamicBmcDhcp. Default setting
is DynamicBmcDhcp.
Station IP address Displays IP Address information.
Subnet mask
Displays Subnet Mask information.
Please note that the IP address must be in three digitals, for example,
192.168.000.001.
Router IP address Displays the Router IP Address information.
Station MAC address Displays the MAC Address information.
Real-time synchronize BMC
network parameter values
Press [Enter] to synchronize the BMC network parameter values.
