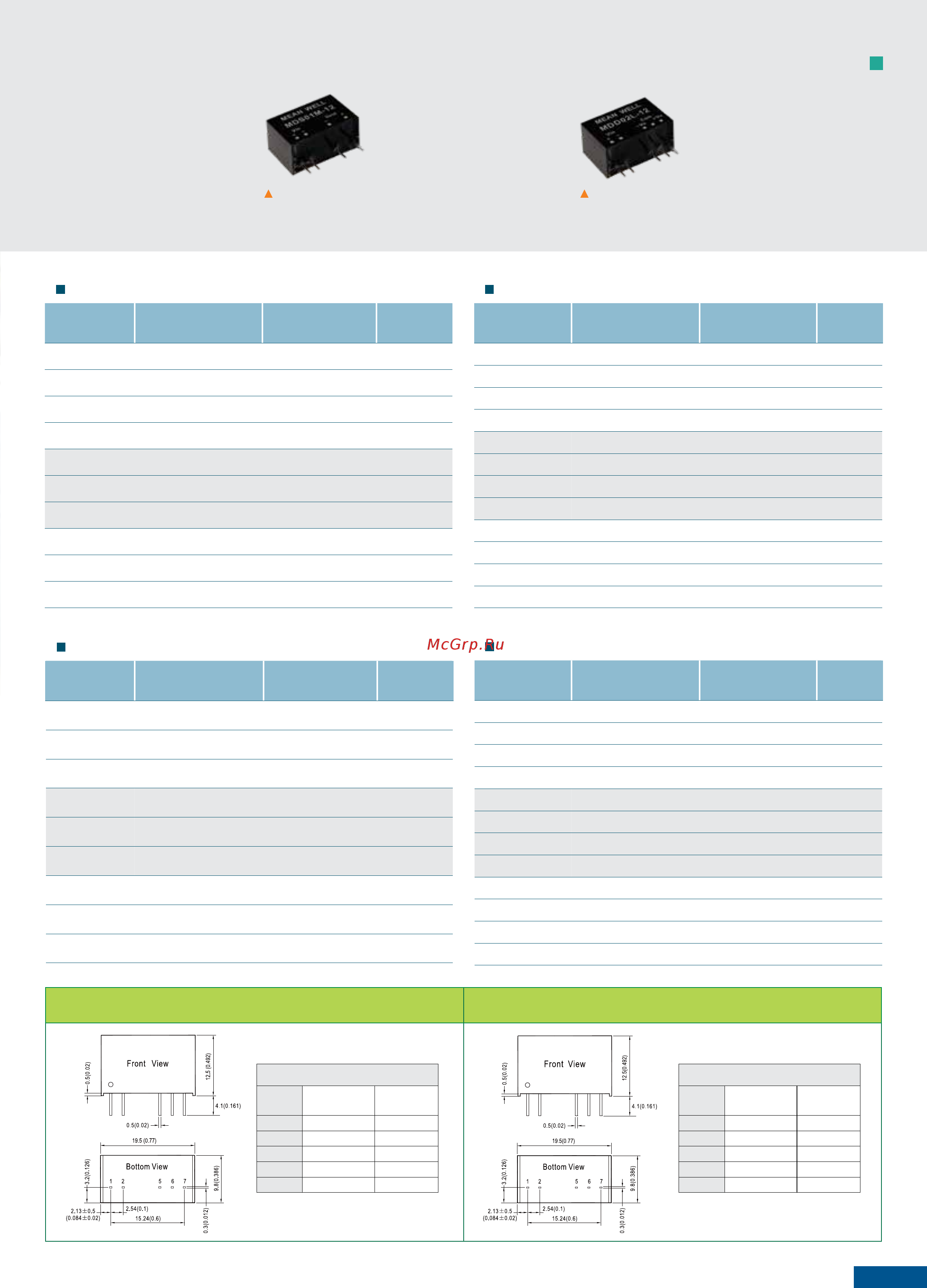

MDS01/02
19.5x 9.8x 12.5mm
(0.77”x 0.39”x 0.49”)
MDD01/02
19.5x 9.8x 12.5mm
(0.77”x 0.39”x 0.49”)
DC/DC Converter 1~20W
MDS01 & MDD01 MDS02 & MDD02
Unit: mm(inch)
Pin-Out
Pin No.
MDS01
(single output)
MDD01
(Dual output)
1 +Vin +Vin
2 -Vin -Vin
5 -Vout -Vout
7 No Pin Common
6 +Vout +Vout
Pin-Out
Pin No.
MDS02
(single output)
MDD02
(Dual output)
1 +Vin +Vin
2 -Vin -Vin
5 -Vout -Vout
7 No Pin Common
6 +Vout +Vout
Unit: mm(inch)
MDS01: 1W Single Output
Model No. Vin Output Effi.
MDS01L-03 5V (4.5~5.5V) 3.3V, 303mA 73%
MDS01L-05 5V (4.5~5.5V) 5V, 200mA 78%
MDS01L-12 5V (4.5~5.5V) 12V, 84mA 77%
MDS01L-15 5V (4.5~5.5V) 15V, 67mA 75%
MDS01M-05 12V (10.8~13.2V) 5V, 200mA 78%
MDS01M-12 12V (10.8~13.2V) 12V, 84mA 82%
MDS01M-15 12V (10.8~13.2V) 15V, 67mA 83%
MDS01N-05 24V (21.6~26.4V) 5V, 200mA 77%
MDS01N-12 24V (21.6~26.4V) 12V, 84mA 79%
MDS01N-15 24V (21.6~26.4V) 15V, 67mA 79%
MDD01: 1W Dual Output
Model No. Vin Output Effi.
MDD01L-05 5V (4.5~5.5V) ±5V, ±100mA 79%
MDD01L-09 5V (4.5~5.5V) ±9V, ±56mA 81%
MDD01L-12 5V (4.5~5.5V) ±12V, ±42mA 77%
MDD01L-15 5V (4.5~5.5V) ±15V, ±34mA 77%
MDD01M-05 12V (10.8~13.2V) ±5V, ±100mA 78%
MDD01M-09 12V (10.8~13.2V) ±9V, ±56mA 82%
MDD01M-12 12V (10.8~13.2V) ±12V, ±42mA 75%
MDD01M-15 12V (10.8~13.2V) ±15V, ±34mA 76%
MDD01N-05 24V (21.6~26.4V) ±5V, ±100mA 77%
MDD01N-09 24V (21.6~26.4V) ±9V, ±56mA 79%
MDD01N-12 24V (21.6~26.4V) ±12V, ±42mA 77%
MDD01N-15 24V (21.6~26.4V) ±15V, ±34mA 77%
MDS02: 2W Single Output
Model No. Vin Output Effi.
MDS02L-05 5V (4.5~5.5V) 5V, 400mA 77%
MDS02L-12 5V (4.5~5.5V) 12V, 167mA 80%
MDS02L-15 5V (4.5~5.5V) 15V, 133mA 79%
MDS02M-05 12V (10.8~13.2V) 5V, 400mA 75%
MDS02M-12 12V (10.8~13.2V) 12V, 167mA 83%
MDS02M-15 12V (10.8~13.2V) 15V, 133mA 84%
MDS02N-05 24V (21.6~26.4V) 5V, 400mA 80%
MDS02N-12 24V (21.6~26.4V) 12V, 167mA 83%
MDS02N-15 24V (21.6~26.4V) 15V, 133mA 85%
MDD02: 2W Dual Output
Model No. Vin Output Effi.
MDD02L-05 5V (4.5~5.5V) ±5V, ±200mA 78%
MDD02L-09 5V (4.5~5.5V) ±9V, ±111mA 81%
MDD02L-12 5V (4.5~5.5V) ±12V, ±83mA 78%
MDD02L-15 5V (4.5~5.5V) ±15V, ±67mA 79%
MDD02M-05 12V (10.8~13.2V) ±5V, ±200mA 78%
MDD02M-09 12V (10.8~13.2V) ±9V, ±111mA 83%
MDD02M-12 12V (10.8~13.2V) ±12V, ±83mA 83%
MDD02M-15 12V (10.8~13.2V) ±15V, ±67mA 82%
MDD02N-05 24V (21.6~26.4V) ±5V, ±200mA 77%
MDD02N-09 24V (21.6~26.4V) ±9V, ±111mA 83%
MDD02N-12 24V (21.6~26.4V) ±12V, ±83mA 82%
MDD02N-15 24V (21.6~26.4V) ±15V, ±67mA 82%
26
