21
ENG

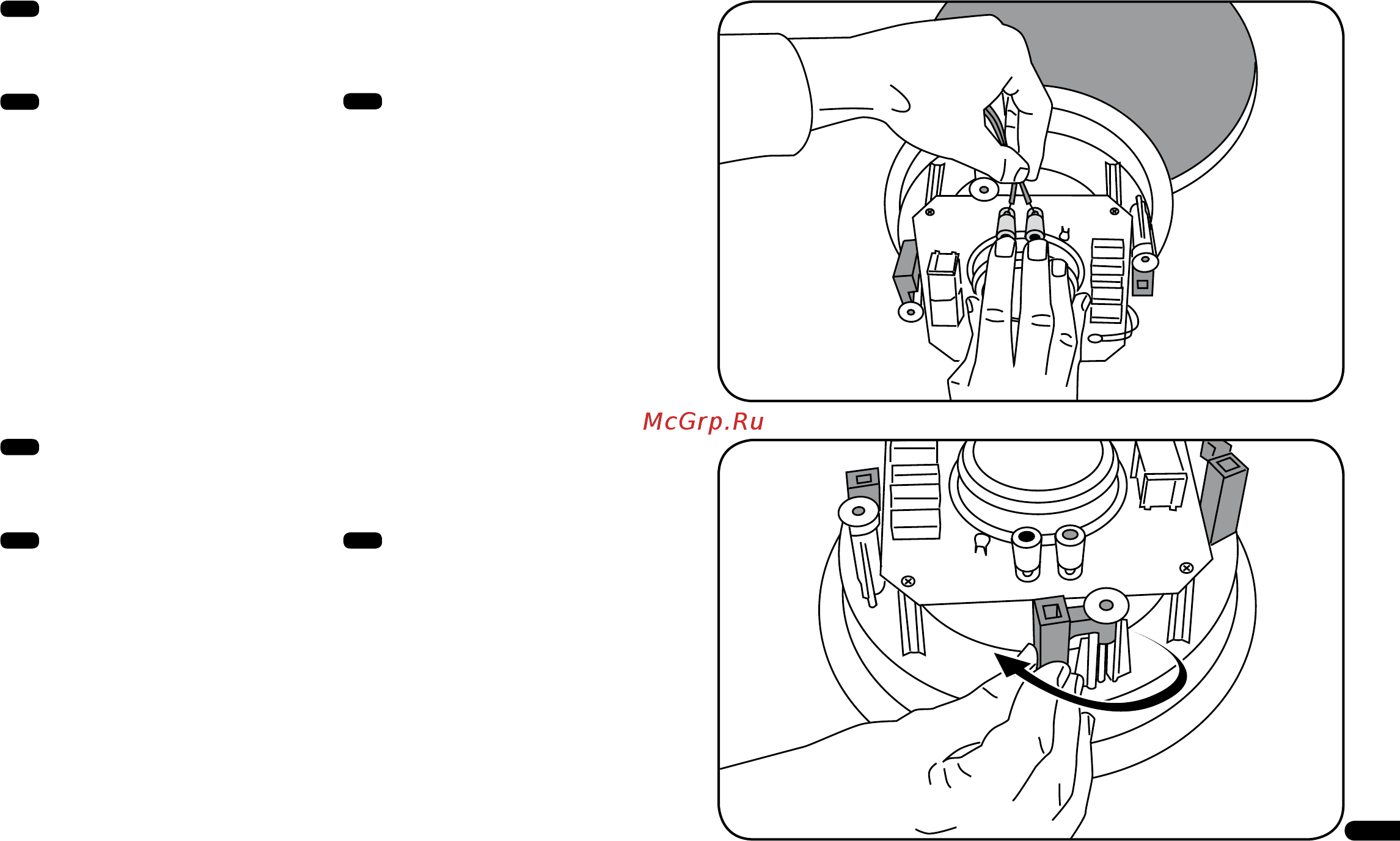

Please connect the speaker cable to the screw clamps. Ensure
that the polarity is correct.
FRA
Connectez à présent les câbles des
enceintes aux bormes à serrage. Veillez à
respecter la polarité.
ESP
Conecte el cable del altavoz con las
abarazaderas roscadas. Asegúrese de que
la polaridad sea correcta.
ENG
If the red mounting tabs are in a horizontal position and the
screws firmly screwed in theyare ready for installation.
FRA
Les brides de fixation rouges doivent
être à l’horizontale et les vis légèrement
vissées pour que l’enceinte soit prête à
être installée.
ESP
Si las pestañas de montaje rojas se
encuentran en posición horizontal y los
tornillos firmemente enroscados, ya están
listos para la instalación.
