Fatal1ty X99M Killer/3.1 Series
23
English

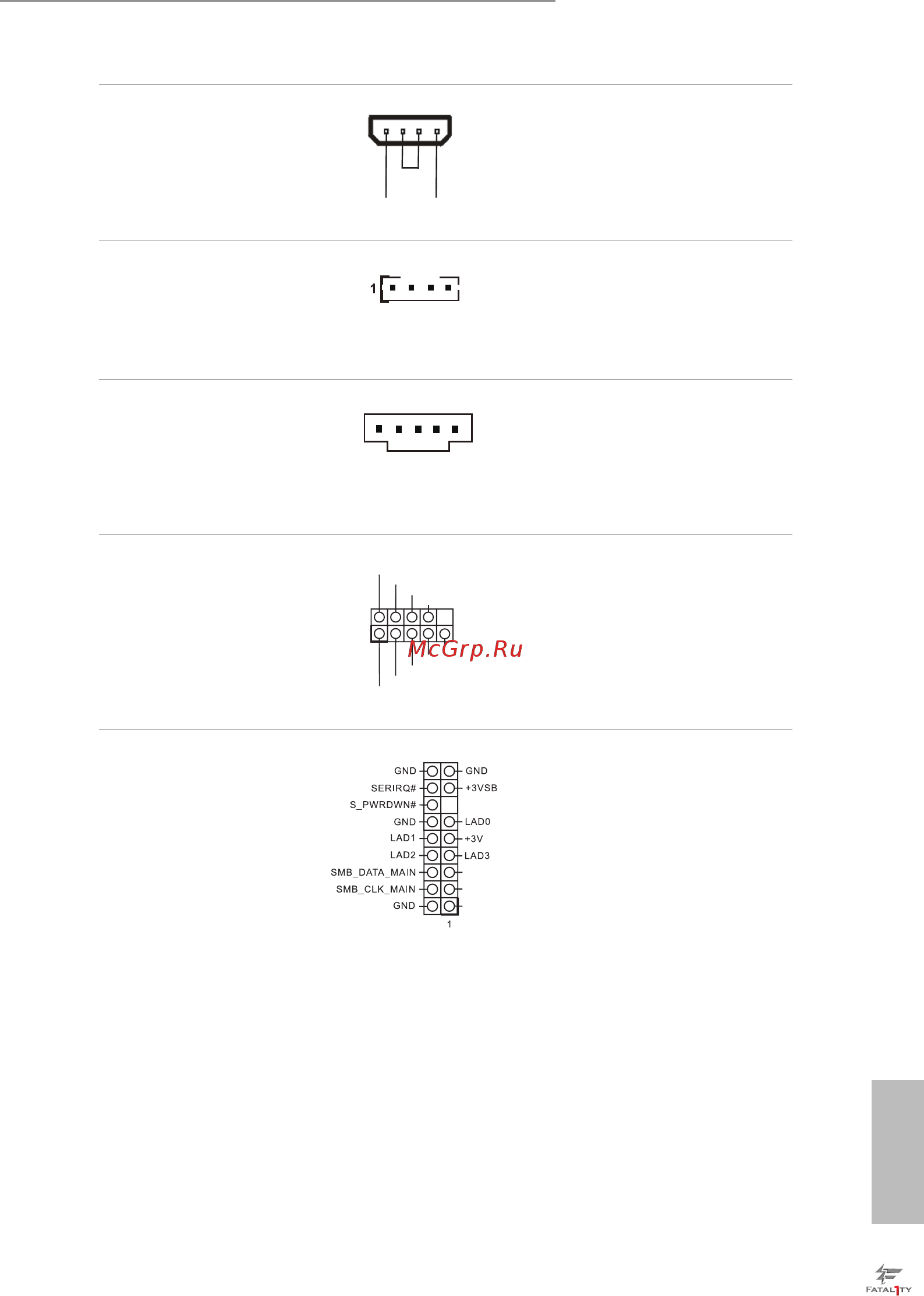

PCIe Power Connector
(4-pin PCIE_PWR1)
(see p.6, No. 28)
Please connect a 4 pin molex
power cable to this connector
when more than three graphics
cards are installed.
HDD Saver Connector
(4-pin SATA_PWR_1)
(see p.6, No. 16)
Please connect the HDD Saver
Cable to this connector to
manage the power state of HDD.
underbolt AIC
Connector
(5-pin TBT1)
(see p.6, No. 27)
Please connect a underbolt
TM
add-in card (AIC) to this
connector via the GPIO cable.
Serial Port Header
(9-pin COM1)
(see p.6, No. 26)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.6, No. 6)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
PCIRST#
FRAME
PCICLK
+12V DETECT
GND
