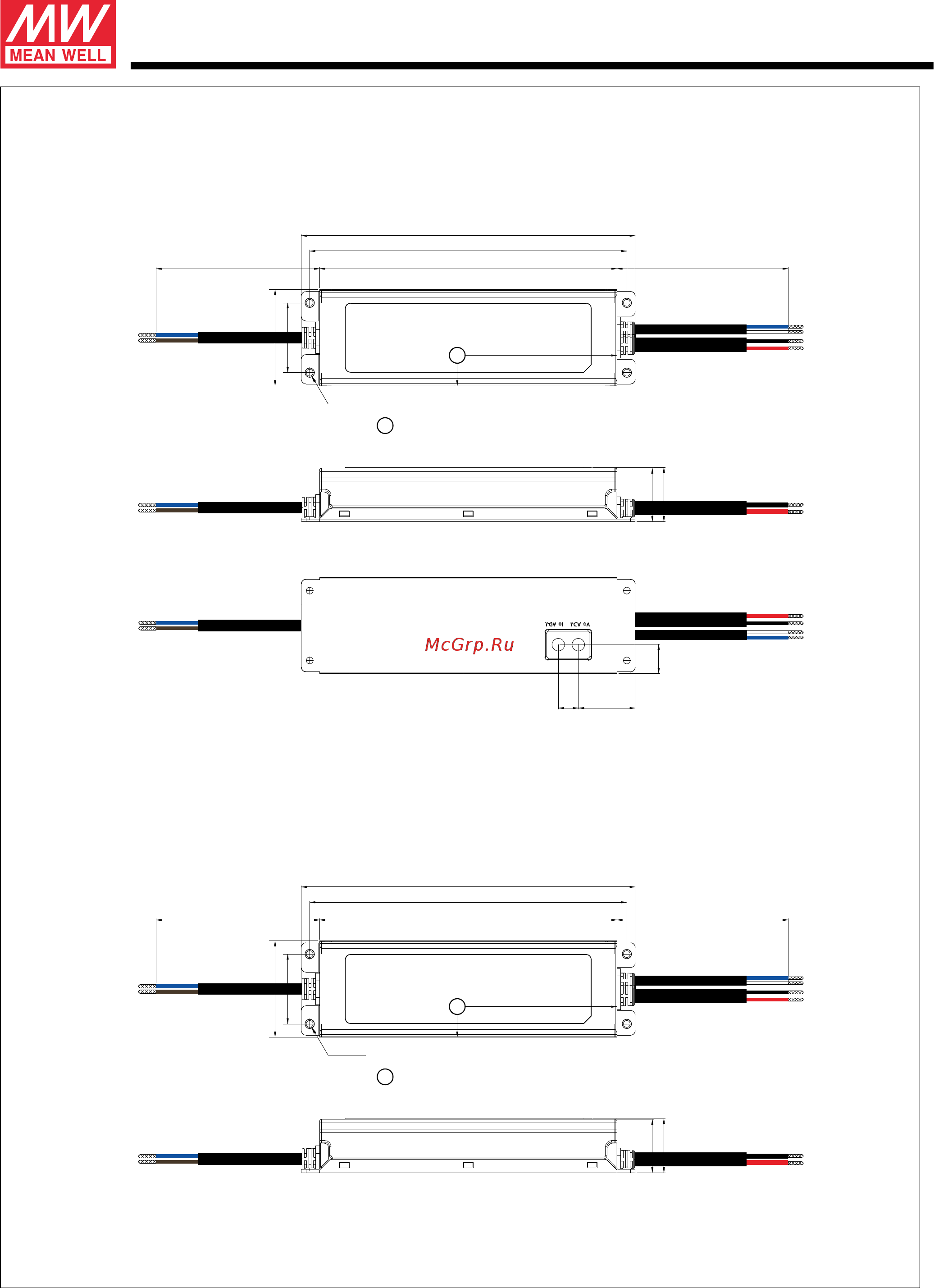

ELG-150 series
tc
: Max. Case Temperature
tc
84~150W Constant Voltage + Constant Current LED Driver
※ AB-Type
208
219
195
300±20
300±20
45.8
63
35.5
35
AC/L(Brown)
AC/N(Blue)
105
20
4- 4.5ψ
DIM-(White)
DIM+( )Blue
SJOW 17AWGx2C
&H05RN-F 1.0mm
2
SJOW 17AWGx2C
&05RN-F 1.0mm
2
UL2517 20AWGx2C
Vo+(Red)
Vo-(Black)
File Name:ELG-150-SPEC 2018-09-30
tc
: Max. Case Temperature
tc
※ B DA/D2-Type/
208
219
195
300±20
300±20
45.8
63
35.5
35
AC/L(Brown)
AC/N(Blue)
105
20
4- 4.5ψ
* DIM+ for B-Type
DA+ for DA-Type
PROG+ for D2-Type
* *DIM- for B-Type
DA- for DA-Type
PROG- for D2-Type
DIM-(White)**
DIM+( )*Blue
SJOW 17AWGx2C
&H05RN-F 1.0mm
2
SJOW 17AWGx2C
&05RN-F 1.0mm
2
Vo+(Red)
Vo-(Black)
36
21.5
14
UL2517 20AWGx2C
