ASRock X58 Deluxe Motherboard

EnglishEnglish

English

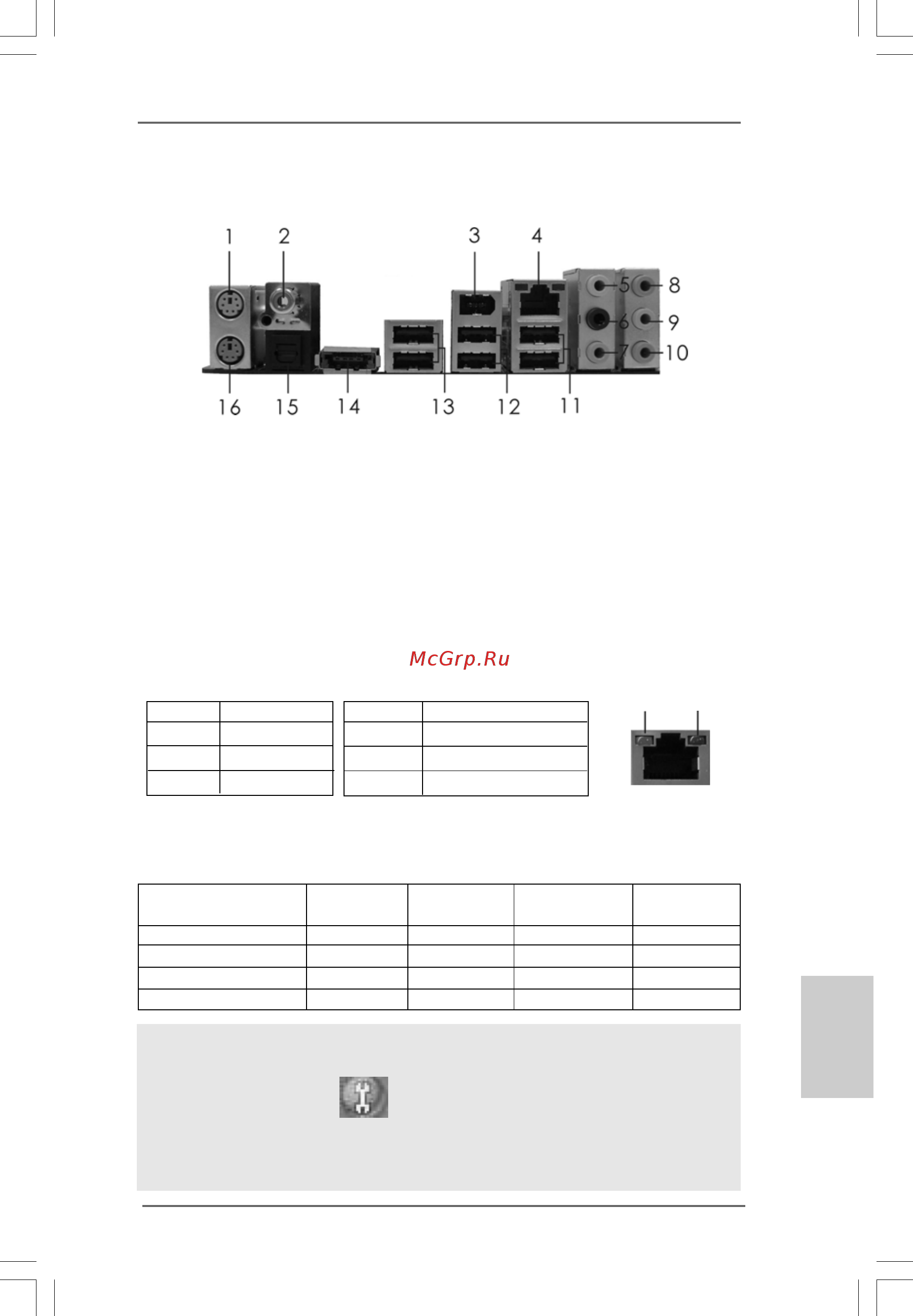

I/O PI/O P

I/O P

anelanel

anel

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH” or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output ChannelsFront Speaker Rear Speaker Central / Bass Side Speaker

(No. 9) (No. 6) (No. 7) (No. 5)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

1 PS/2 Mouse Port (Green) ** 9 Front Speaker (Lime)

2 Coaxial SPDIF Out Port 10 Microphone (Pink)

3 IEEE 1394 Port 11 USB 2.0 Ports (USB45)

* 4 LAN RJ-45 Port 12 USB 2.0 Ports (USB23)

5 Side Speaker (Gray) 13 USB 2.0 Ports (USB01)

6 Rear Speaker (Black) 14 Powered eSATAII/USB (ESATAII_USB1)

7 Central / Bass (Orange) 15 Optical SPDIF Out Port

8 Line In (Light Blue) 16 PS/2 Keyboard Port (Purple)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Light Link Green 1Gbps connection
