ASRock X58 Deluxe Motherboard

EnglishEnglish

English

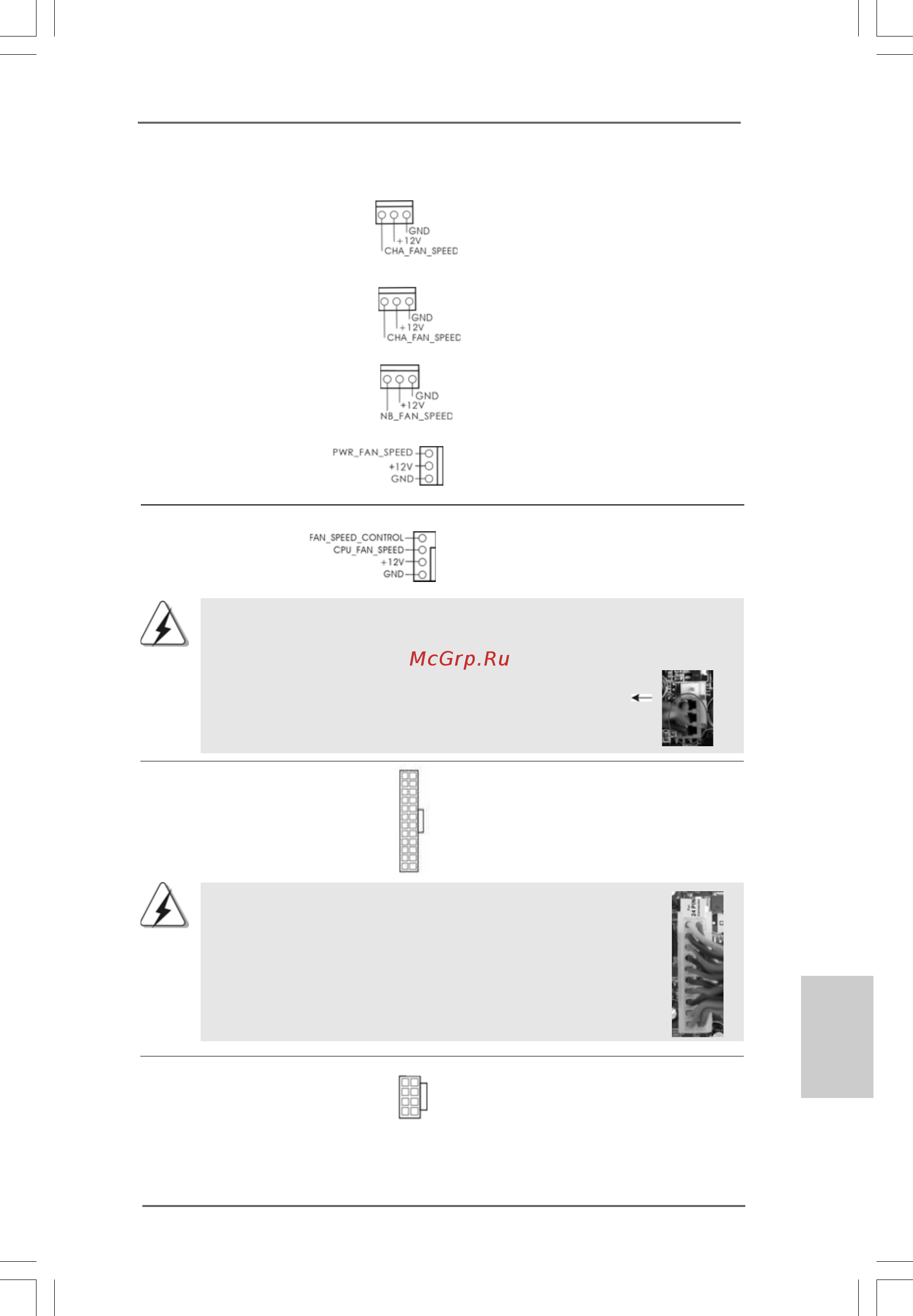

Chassis, NB and Power Fan Connectors Please connect the fan cables

(3-pin CHA_FAN1) to the fan connectors and

(see p.2 No. 11) match the black wire to the

ground pin.

(3-pin CHA_FAN2)

(see p.2 No. 13)

(3-pin NB_FAN1)

(see p.2 No. 12)

(3-pin PWR_FAN1)

(see p.2 No. 33)

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1) supply to this connector.

(see p.2, No. 5)

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

CPU Fan Connector Please connect a CPU fan cable

(4-pin CPU_FAN1) to this connector and match

(see p.2 No. 35) the black wire to the ground pin.

ATX 12V Power Connector Please connect an ATX 12V

(8-pin ATX12V1) power supply to this connector.

(see p.2 No. 36)
