ASRock B460M Steel Legend [16/98] English

English

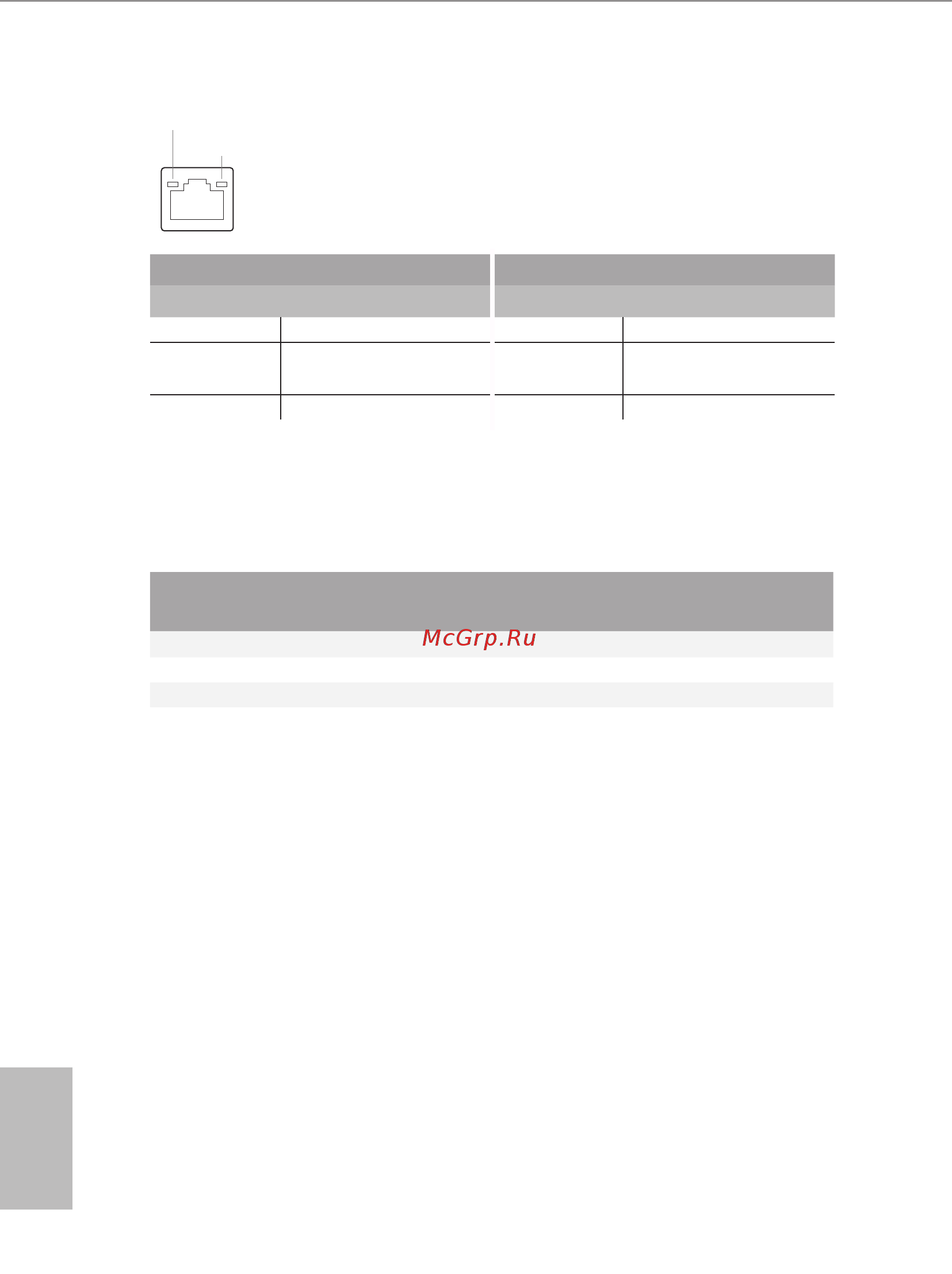

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange

100Mbps/1Gbps

connection

On Link Green 2.5Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

Line In

(No. 5)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

ACT/LINK LED

SPEED LED

LAN Port
