English
8

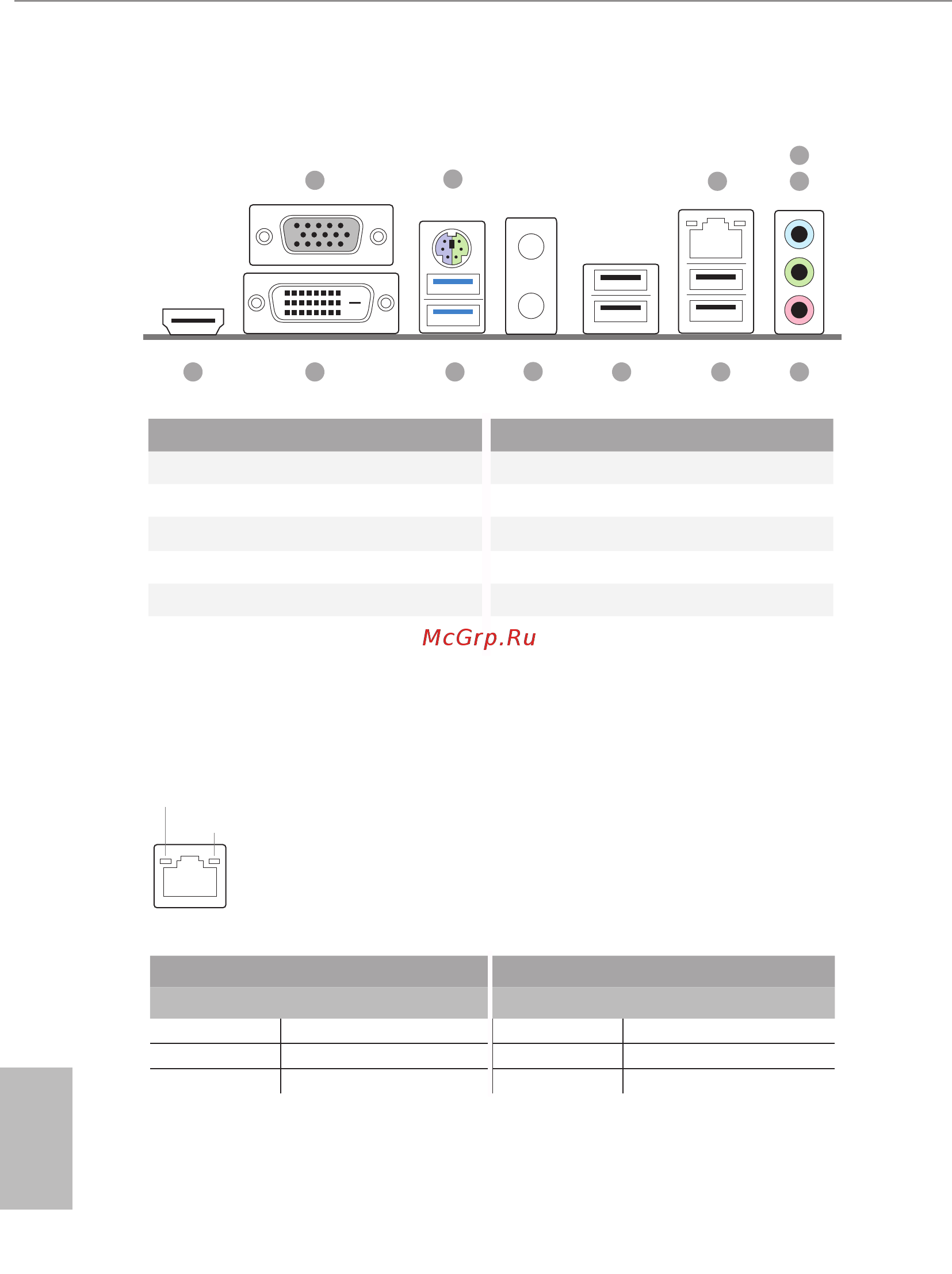

1.4 I/O Panel
No. Description No. Description
1 D-Sub Port 7 USB 2.0 Ports (USB_3_4)
2 PS/2 Mouse/Keyboard Port 8 USB 2.0 Ports (USB1_2)
3 LAN RJ-45 Port* 9 Antenna Bracket
4 Line In (Light Blue)** 10 USB 3.2 Gen1 Ports (USB3_7_8)
5 Front Speaker (Lime)** 11 DVI-D Port
6 Microphone (Pink)** 12 HDMI Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
12 6710
11
5
4
2
3
8
9
1
