English
39
H410M-HDV/M.2
3.3.4 Setting

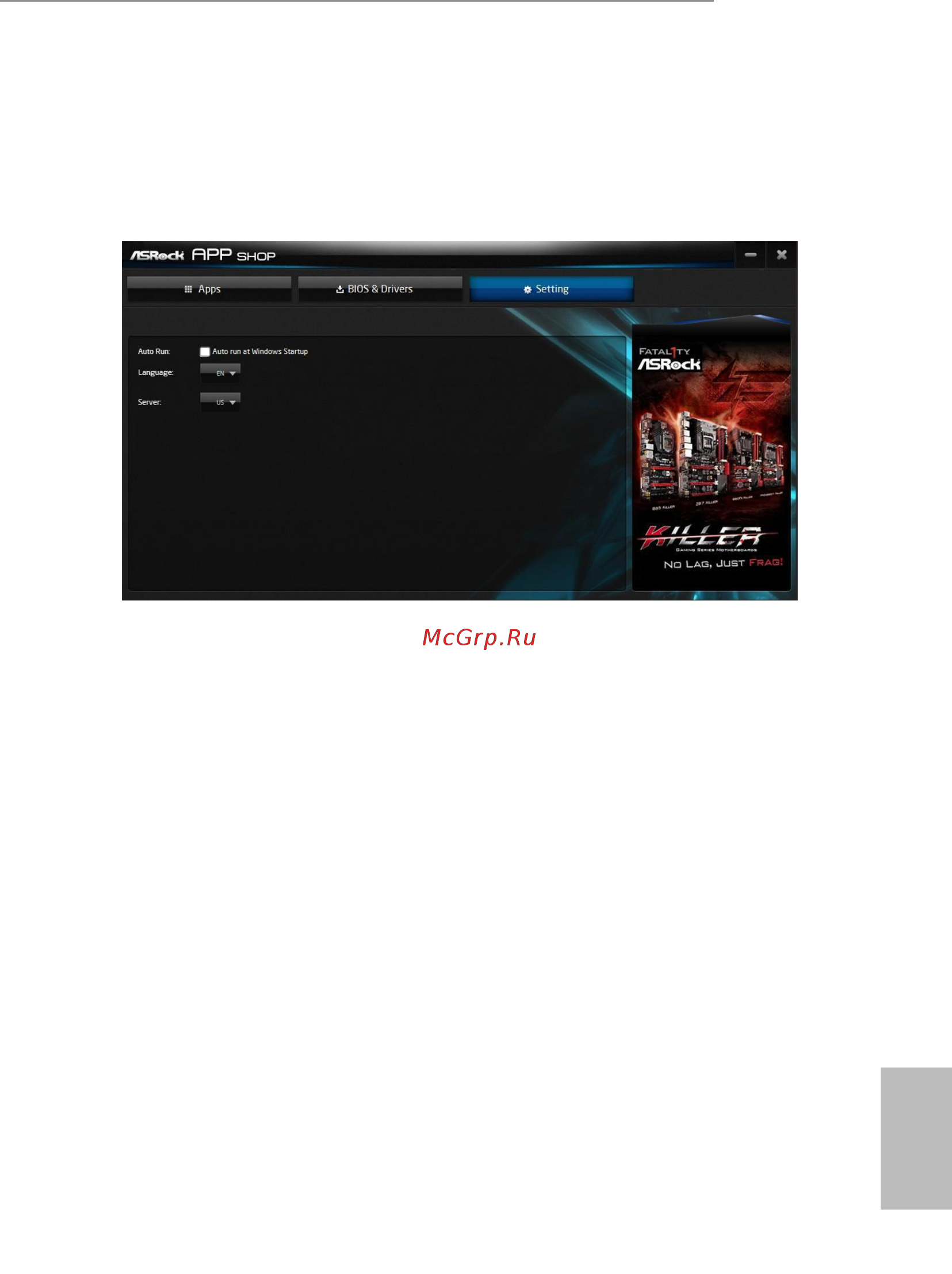

In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock Live Update & APP Shop
on Windows startup.
