ASRock H310M-STX [15/65] Rear panel
![ASRock H310M-STX [15/65] Rear panel](/views2/1687218/page15/bgf.png)
10 11
English

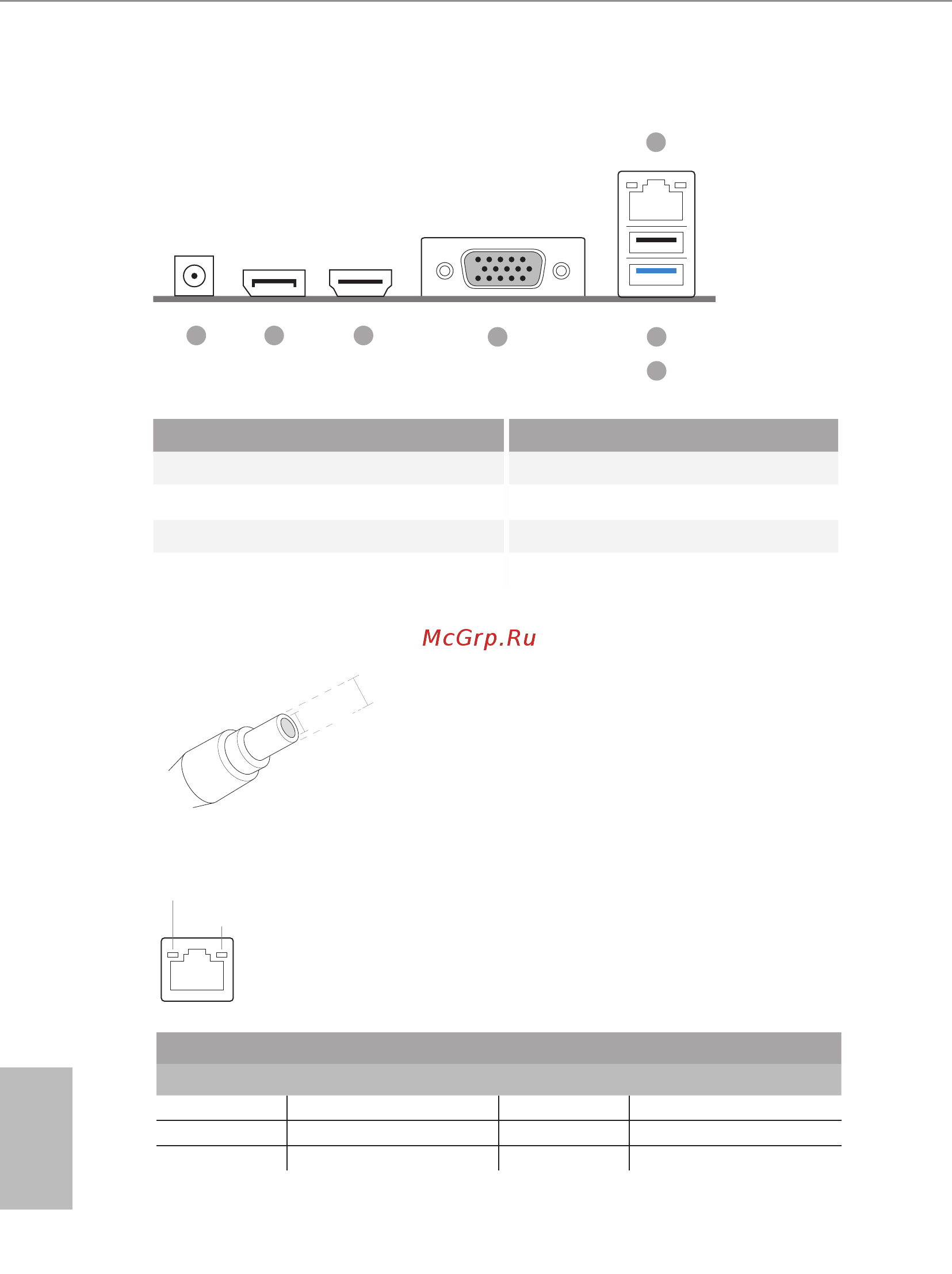

1.5 Rear Panel
No. Description No. Description
1 DC Jack 4 D-Sub Port
(Supports 19V DC Power Adapters)* 5 USB 2.0 Port (USB_3)
2 Display Port 6 USB 3.1 Gen1 Port (USB_4)
3 HDMI Port 7 LAN RJ-45 Port**
* * ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 3
4 5
6
7
*Specication for DC plug
2.5 mm
5.5 mm
