ASRock H310M-STX [25/65] English

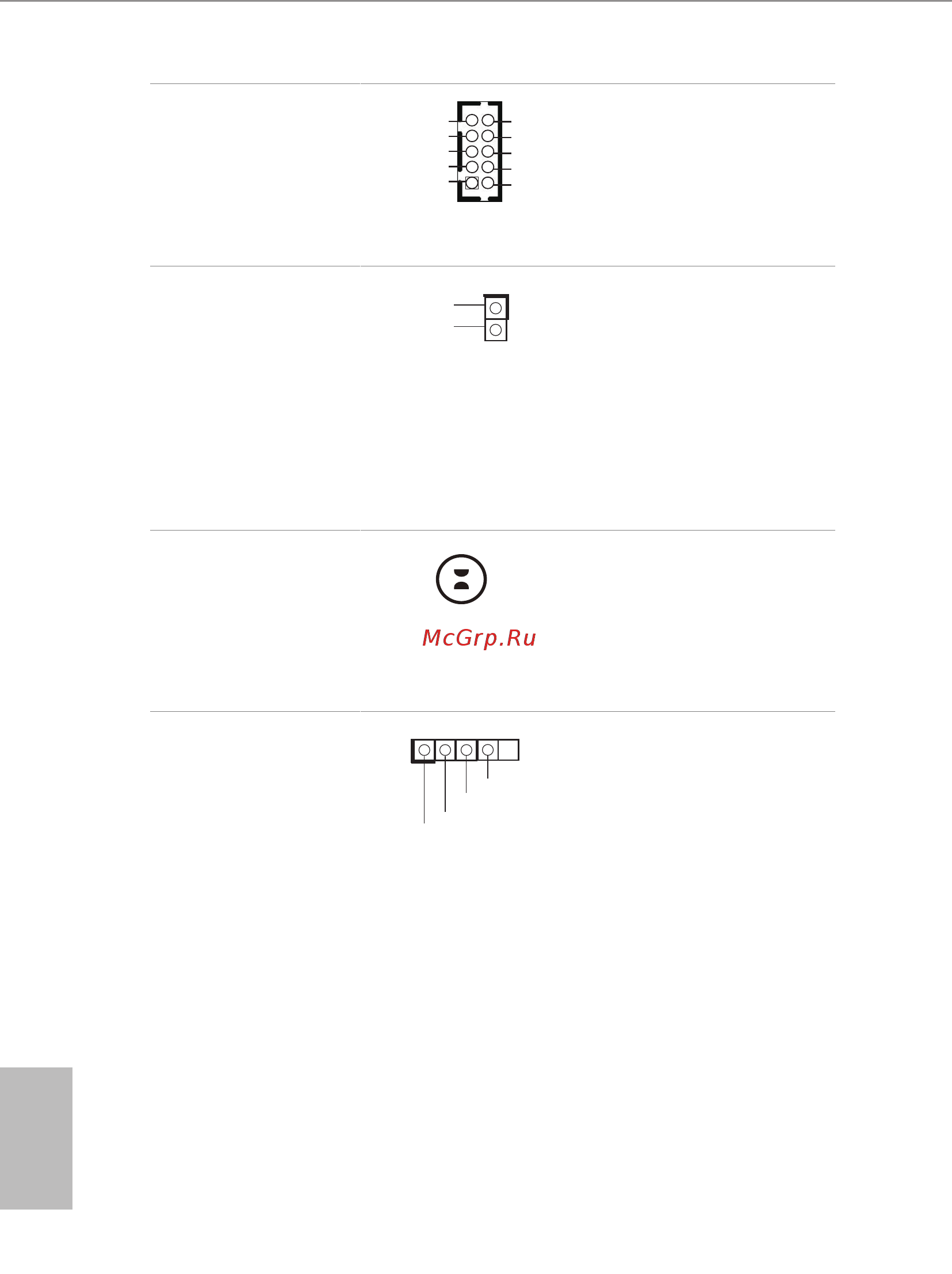

![ASRock H310M-STX [25/65] English](/views2/1687218/page25/bg19.png)
20 21
English
Serial Port Header
(for H310M-STX/COM
only)
(9-pin COM1)
(see p.6, No. 6)
is COM1 header
supports a serial port
module.
Chassis Intrusion Header
(2-pin CI1)
(see p.6, No. 9)
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
Clear CMOS Pad
(see p.7, No. 12)
Clear CMOS Pad allows you to
clear the data in CMOS. To clear
CMOS, disconnect the
power supply and short the Clear
CMOS Pad.
Audio Header
(5-pin AUDIO3)
(see p.6, No. 8)
is Audio header allows you to
connect the audio cable for head-
phone.
1
Signa
l
GND
RTS
CTS
GN
D
TXD
DC
D
DS
R
DTR
RX
D
1
NC
RI
1
GND
Jack detect
Audio-L
Audio-R
