English
18

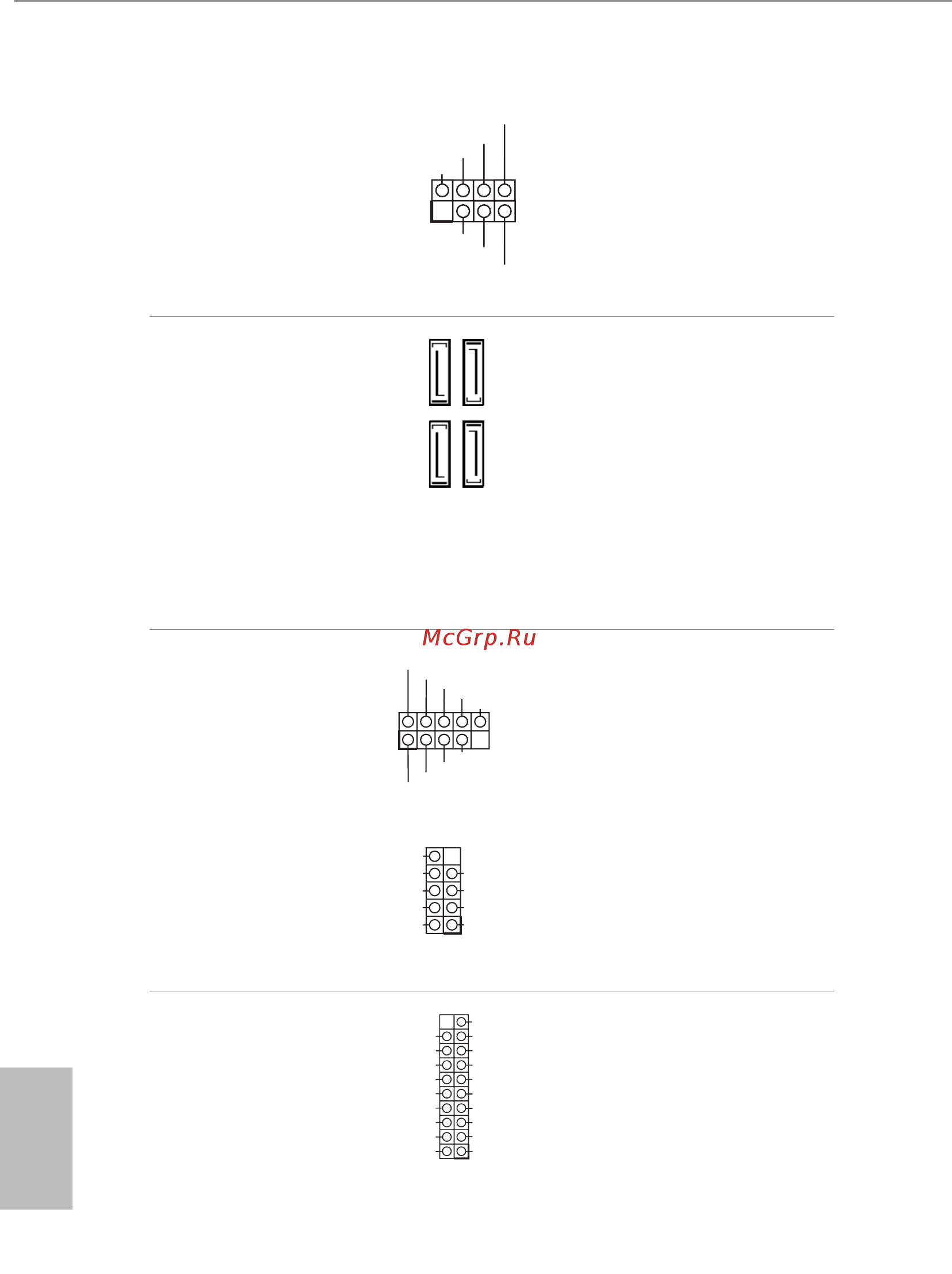

Chassis Intrusion and
Speaker Header
(7-pin SPK_CI1)
(see p.1, No. 15)
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 10)
(SATA3_1:
see p.1, No. 9)
(SATA3_2:
see p.1, No. 8)
(SATA3_3:
see p.1, No. 7)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* If M2_1 is occupied by
a SATA-type M.2 device,
SATA3_3 will be disabled.
USB 2.0 Headers
(9-pin USB_4_5)
(see p.1, No. 14)
(9-pin USB_8_9)
(see p.1, No. 6)
ere are two USB
2.0 headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.1 Gen1 Header
(19-pin USB_2_3)
(see p.1, No. 5)
ere is one header on
this motherboard. is
USB 3.1 Gen1 header can
support two ports.
* USB3_2_3 is shared
with USB_8_9.
1
IntA_P3_D+
ID
IntA_P3_D-
GND
IntA_P3_SSTX+
GND
IntA_P3_SSTX-
IntA_P3_SSRX+
IntA_P3_SSRX-
VbusVbus
Vbus
IntA_P2_SSRX-
IntA_P2_SSRX+
GND
IntA_P2_SSTX-
IntA_P2_SSTX+
GND
IntA_P2_D-
IntA_P2_D+
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
DUMMY
GNDGND
P+
P-
P+
P-
USB_PWR
USB_PWR
1
SATA3_1
SATA3_0
SATA3_3
SATA3_2
1
+5V
DUMMY
SIGNAL
GND
DUMMY
SPEAKER
DUMMY
