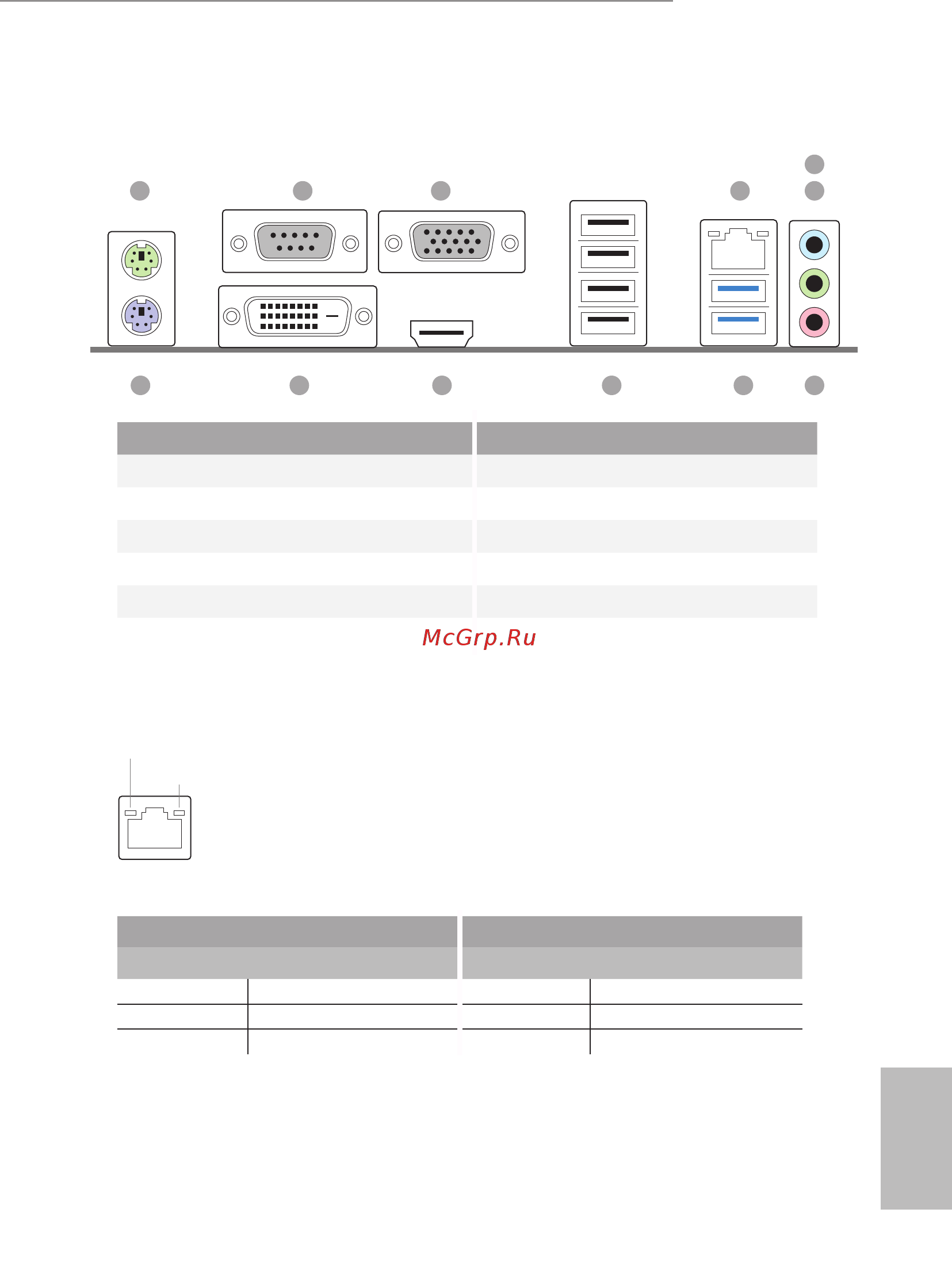

ASRock H310M-HDVP [5/64] I o panel
![ASRock H310M-HDVP [5/64] I o panel](/views2/1687224/page5/bg5.png)
English
3
H310M-HDVP
I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 7 Microphone (Pink)**
2 COM Port 8 USB 3.1 Gen1 Ports (USB01)
3 D-Sub Port 9 USB 2.0 Ports (USB0123)
4 LAN RJ-45 Port* 10 HDMI Port
5 Line In (Light Blue)** 11 DVI-D Port
6 Front Speaker (Lime)** 12 PS/2 Keyboard Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
12 78
11
6
5
1 4
9
2 3
10
