ASRock H81M BTC [33/75] English
![ASRock H81M BTC [33/75] English](/views2/1687445/page33/bg21.png)
H81M BTC
29
English
Dehumidier
Prevent motherboard damages due to dampness. Enable this function and
congure the period of time until the computer powers on, and the duration of the
dehumidifying process.

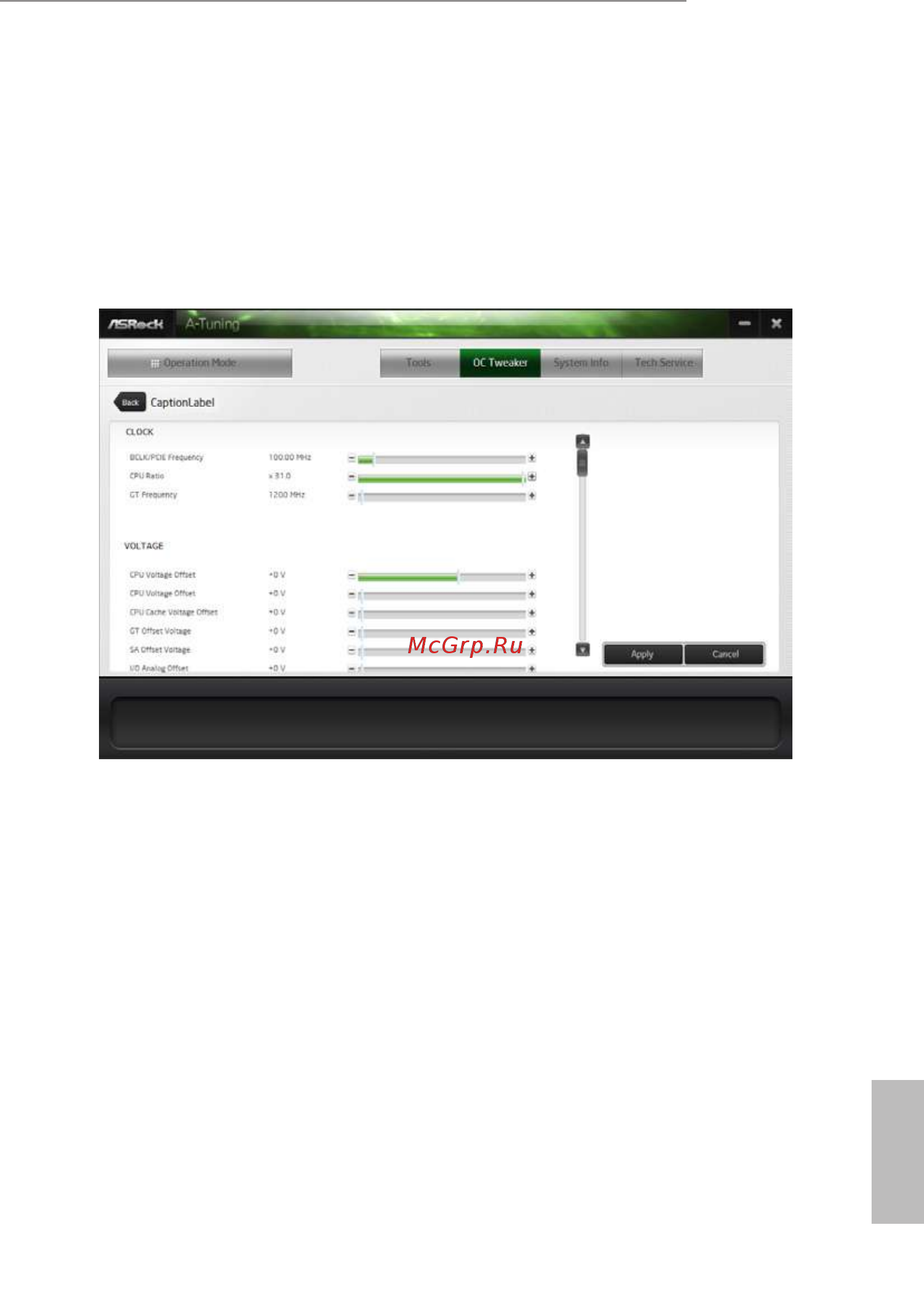

OC Tweaker
Congurations for overclocking the system.
System Info
View information about the system.
