ASRock H81M BTC [61/75] Super io configuration
![ASRock H81M BTC [61/75] Super io configuration](/views2/1687445/page61/bg3d.png)
H81M BTC
57
English

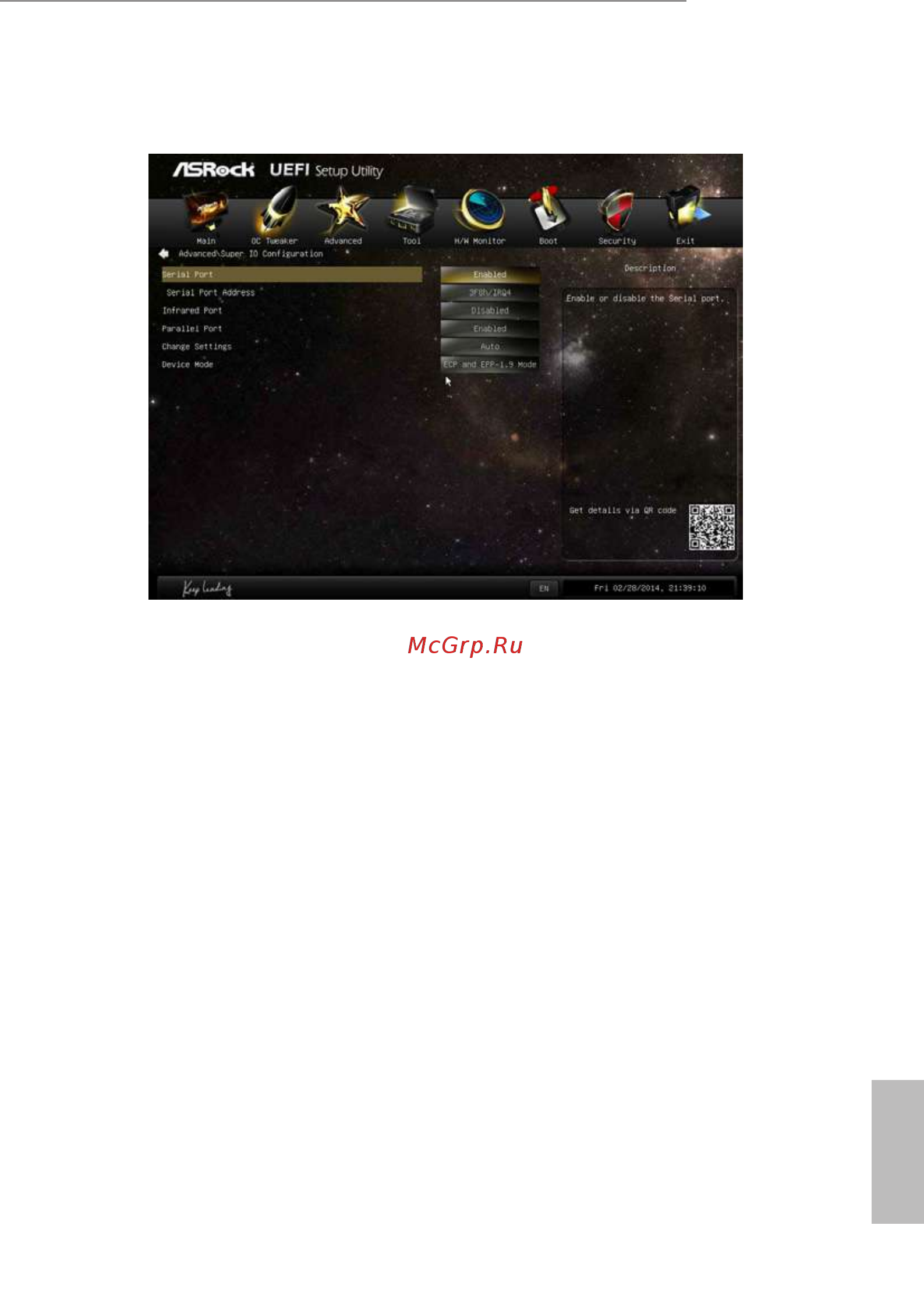

4.4.5 Super IO Conguration
Serial Port
Enable or disable the Serial port.
Serial Port Address
Select the address of the Serial port.
Parallel Port
Enable or disable the Parallel port.
Change Settings
Select the address of the Parallel port.
Device Mode
Select the device mode according to your connected device.
