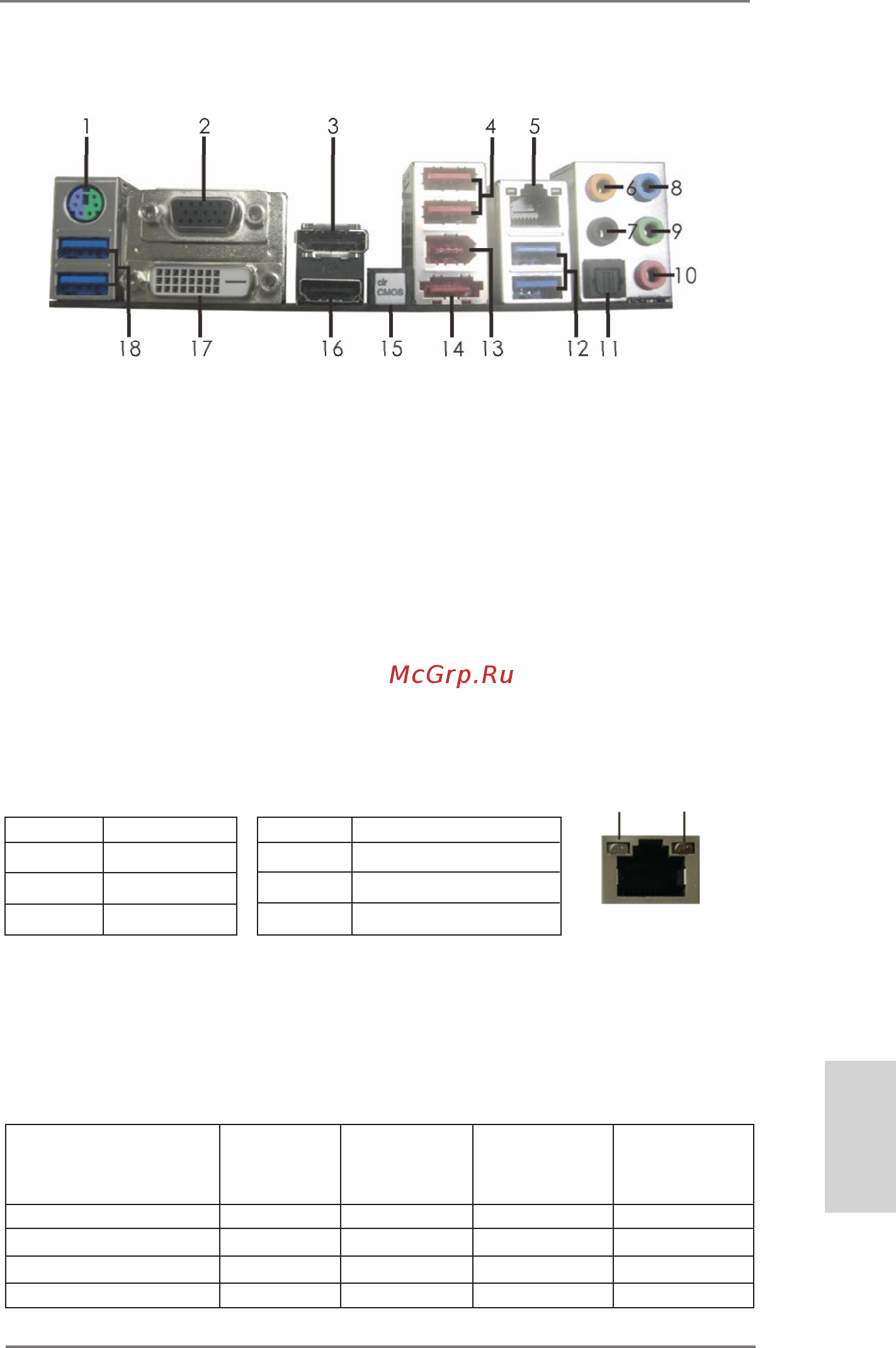

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Keyboard/Mouse Port (Purple/Green)

2 D-Sub Port (VGA1)

3 DisplayPort (DP_1)

4 USB 2.0 Ports (USB01)

* 5 LAN RJ-45 Port

6 Central / Bass (Orange)

7 Rear Speaker (Black)

8 Line In (Light Blue)

** 9 Front Speaker (Lime)

10 Microphone (Pink)

11 Optical SPDIF Out Port

12 USB 3.0 Ports (USB3_2_3)

13 IEEE 1394 Port (IEEE 1394)

*** 14 eSATA3 Connector

15 Clear CMOS Switch (CLRCBTN)

16 HDMI Port (HDMI1)

17 DVI-D Port (DVI1)

18 USB 3.0 Ports (USB3_0_1)

ACT/LINK

LED

SPEED

LED

LAN Port

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in

(No. 9) (No. 7) (No. 6) (No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V
