2
ASRock P67 Extreme6 Motherboard

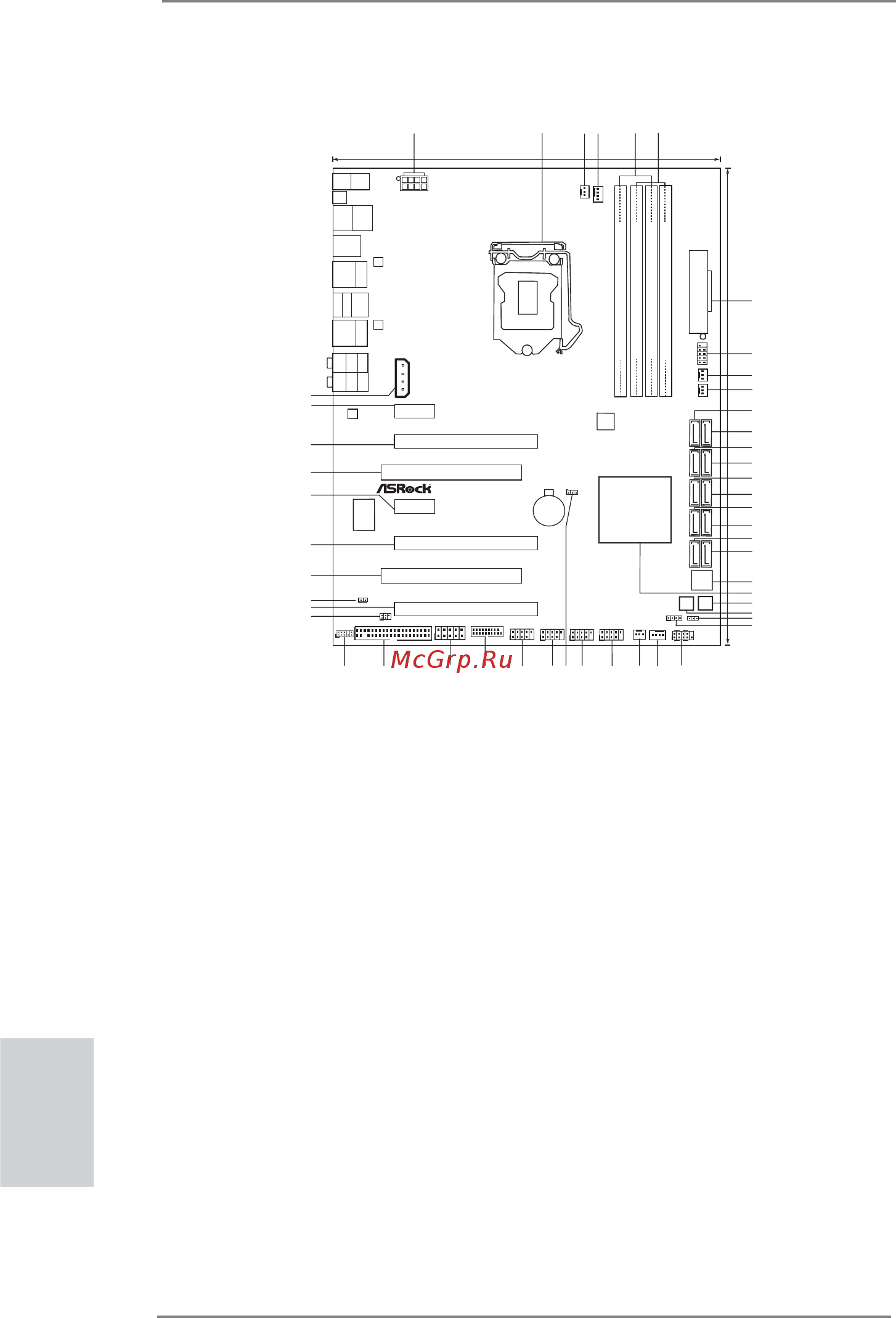

Motherboard Layout
English
1 ATX 12V Power Connector (ATX12V1) 25 Power LED Header (PLED1)
2 1155-Pin CPU Socket 26 Chassis Speaker Header
3 CPU Fan Connector (CPU_FAN2) (SPEAKER 1, White)
4 CPU Fan Connector (CPU_FAN1) 27 System Panel Header (PANEL1, White)
5 2 x 240-pin DDR3 DIMM Slots 28 Chassis Fan Connector (CHA_FAN1)
(Dual Channel: DDR3_A1, DDR3_B1, Blue) 29 Chassis Fan Connector (CHA_FAN2)
6 2 x 240-pin DDR3 DIMM Slots 30 USB 2.0 Header (USB12_13, Blue)
(Dual Channel: DDR3_A2, DDR3_B2, White) 31 USB 2.0 Header (USB10_11, Blue)
7 ATX Power Connector (ATXPWR1) 32 Clear CMOS Jumper (CLRCMOS1)
8 Front Panel IEEE 1394 Header 33 USB 2.0 Header (USB8_9, Blue)
(FRONT_1394, White) 34 USB 2.0 Header (USB6_7, Blue)
9 Power Fan Connector (PWR_FAN1) 35 USB 3.0 Header (USB3_2_3, Light Blue)
10 Chassis Fan Connector (CHA_FAN3) 36 COM Port Header (COM1)
11 SATA2 Connector (SATA2_5, Blue) 37 Floppy Connector (FLOPPY1)
12 SATA2 Connector (SATA2_4, Blue) 38 Front Panel Audio Header
13 SATA2 Connector (SATA2_3, Blue) (HD_AUDIO1, White)
14 SATA2 Connector (SATA2_2, Blue) 39 Infrared Module Header (IR1)
15 SATA3 Connector (SATA3_1, White) 40 PCI Express 2.0 x16 Slot (PCIE5, Blue)
16 SATA3 Connector (SATA3_0, White) 41 HDMI_SPDIF Header
17 SATA3 Connector (SATA3_M2, White) (HDMI_SPDIF1, White)
18 SATA3 Connector (SATA3_M1, White) 42 PCI Slot (PCI2)
19 SATA3 Connector (SATA3_M4, White) 43 PCI Express 2.0 x16 Slot (PCIE4, Blue)
20 SATA3 Connector (SATA3_M3, White) 44 PCI Express 2.0 x1 Slot (PCIE3, White)
21 Dr. Debug 45 PCI Slot (PCI1)
22 Intel P67 Chipset 46 PCI Express 2.0 x16 Slot (PCIE2, Blue)
23 Reset Switch (RSTBTN) 47 PCI Express 2.0 x1 Slot (PCIE1, White)
24 Power Switch (PWRBTN) 48 SLI / XFIRE Power Connector
Intel
P67
24.4cm (9.6 in)
30.5cm (12.0 in)
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
ATXPWR1
CLRCMOS1
1
ATX12V1
CPU_FAN1
CPU_FAN2
P67 Extreme6
64Mb
BIOS
PWRBTN
RSTBTN
Dr.
Debug
Super
I/O
PCIE1
PCIE2
PCIE3
PCIE4
PCIE5
PCI1
PCI2
CMOS
Battery
SATA3_M3_M4 SATA3_M1_M2 SATA3_0_1 SATA2_2_3 SATA2_4_5
HDLED RESET
PLED PWRBTN
PANEL1
1
SPEAKER1
1
PLED1
1
USB3_2_3
USB12_13
1
USB10_11
1
USB8_9
1
1
HD_AUDIO1
FLOPPY1
COM1
1
IR1
1
FRONT_1394
1
1
HDMI_SPDIF1
LAN
PHY
AUDIO
CODEC
PS2
Mouse
Coaxial
SPDIF
PS2
Keyboard
Optical
SPDIF
Clr
CMOS
USB 3.0
T: U SB 1
B: USB2
Top:
RJ-45
USB 2.0
T:USB2
B: USB3
Top:
SIDE SPK
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
CTR BASS
Bottom:
MIC IN
USB 2.0
T:USB4
B: USB5
IEEE 1394
eSATA
SLI/XFIRE_PWR1
Dual Channel DDR3 2133
PCI Express 2.0
ErP/EuP Ready
RoHS
Dual GLAN
Designed in Taipei
1394a
Front USB 3.0 SATA3 6Gb/s
1
2
3
4
5
6
7
11
12
13
14
16
8
9
10
15
17
18
24
19
20
21
22
23
25
26
27
28
2930
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Top:
RJ-45
USB 3.0
T: U SB 3
B: USB4
PWR_FAN1CHA_FAN3
CHA_FAN1
CHA_FAN2
USB6_7
1
CrossFireX
USB 3.0
47
48
LAN
PHY
