ASRock H61M-HP4 Motherboard

English

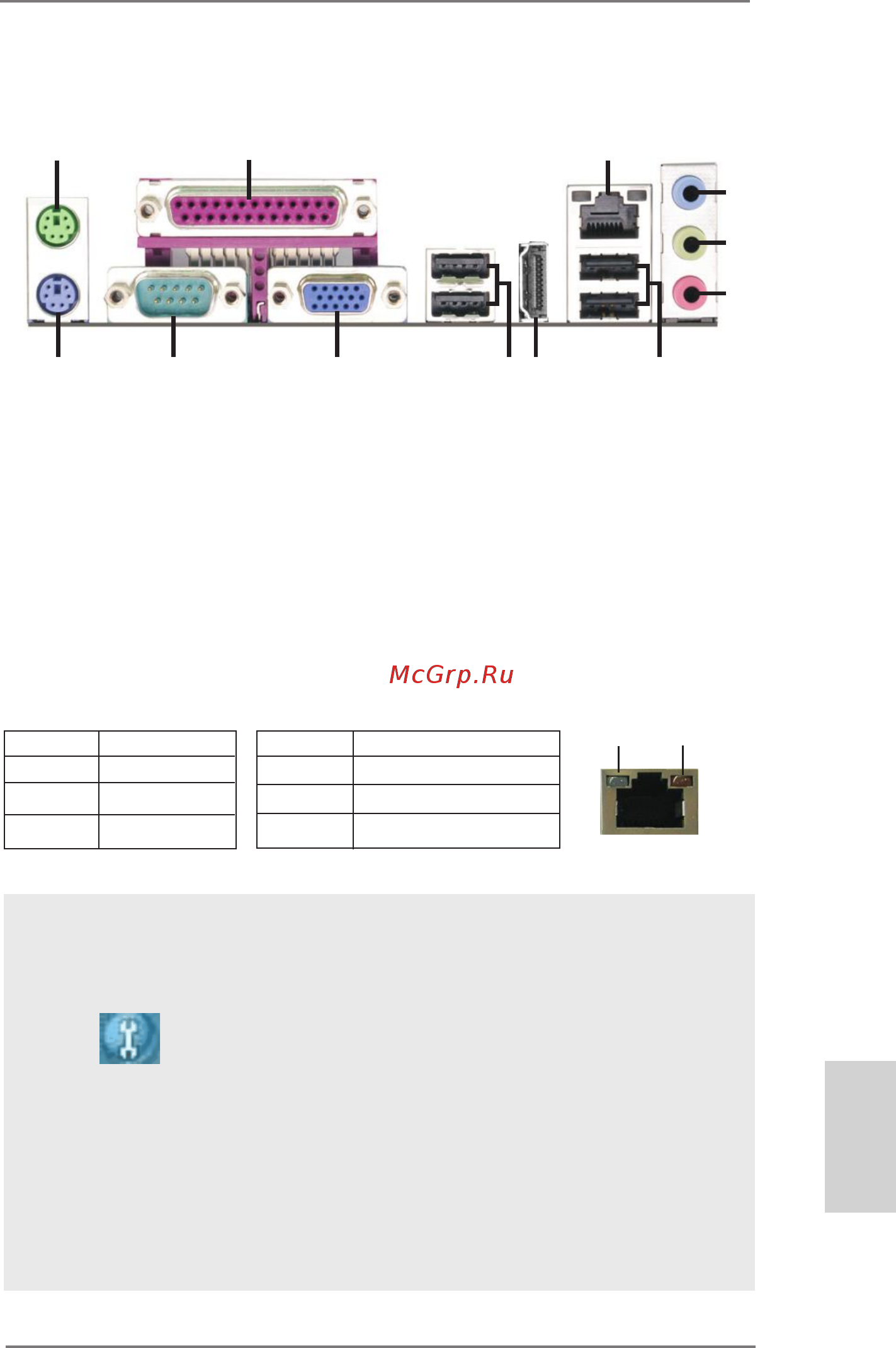

I/O Panel

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23)

2 Parallel Port (LPT1) 8 HDMI Port (HDMI1)

3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB01)

4 Line In (Light Blue) 10 D-Sub Port (VGA1)

5 Front Speaker (Lime) 11 Serial Port (COM1)

6 Microphone (Pink) 12 PS/2 Keyboard Port (Purple)

1112 9

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows

XP:

After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows

8 / 7 / Vista

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.
