18
English
2.5 Intel® CNVi (Integrated WiFi/BT) Installation Guide
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key
E) supports type 2230 Intel® CNVi (Integrated WiFi/BT).

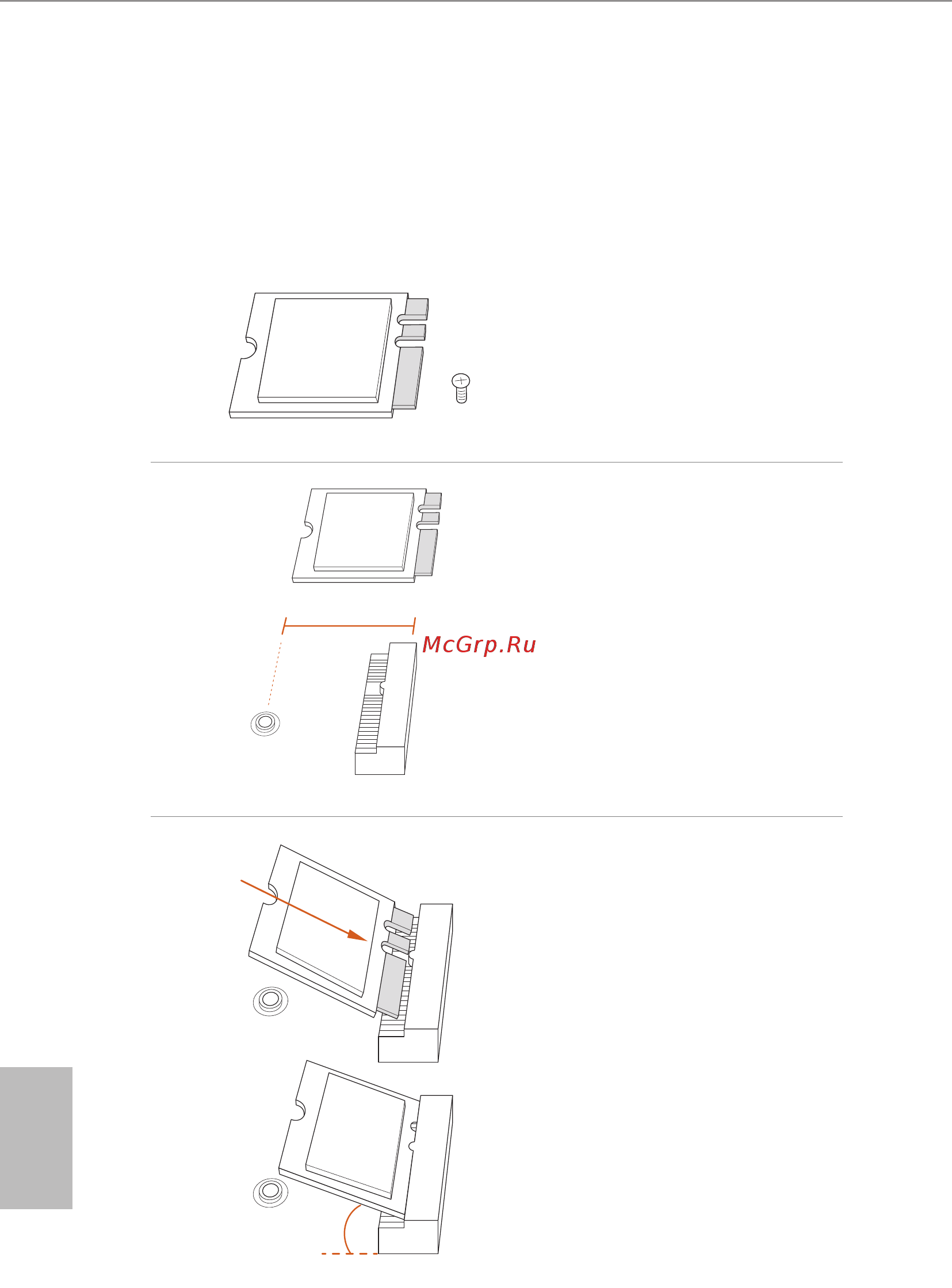

Installing Intel® CNVi (Integrated WiFi/BT)
Step 1
Prepare a type 2230 Intel® CNVi
(Integrated WiFi/BT) and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.
A
A
20
o
Step 3
Gently insert the type 2230 Intel®
CNVi (Integrated WiFi/BT) into the
M.2 slot. Please be aware that the
module only ts in one orientation.
