ASRock N3150B-ITX [38/55] Chipset coniguration
![ASRock N3150B-ITX [38/55] Chipset coniguration](/views2/1688715/page38/bg26.png)
33
English
N3150B-ITX
N3050B-ITX

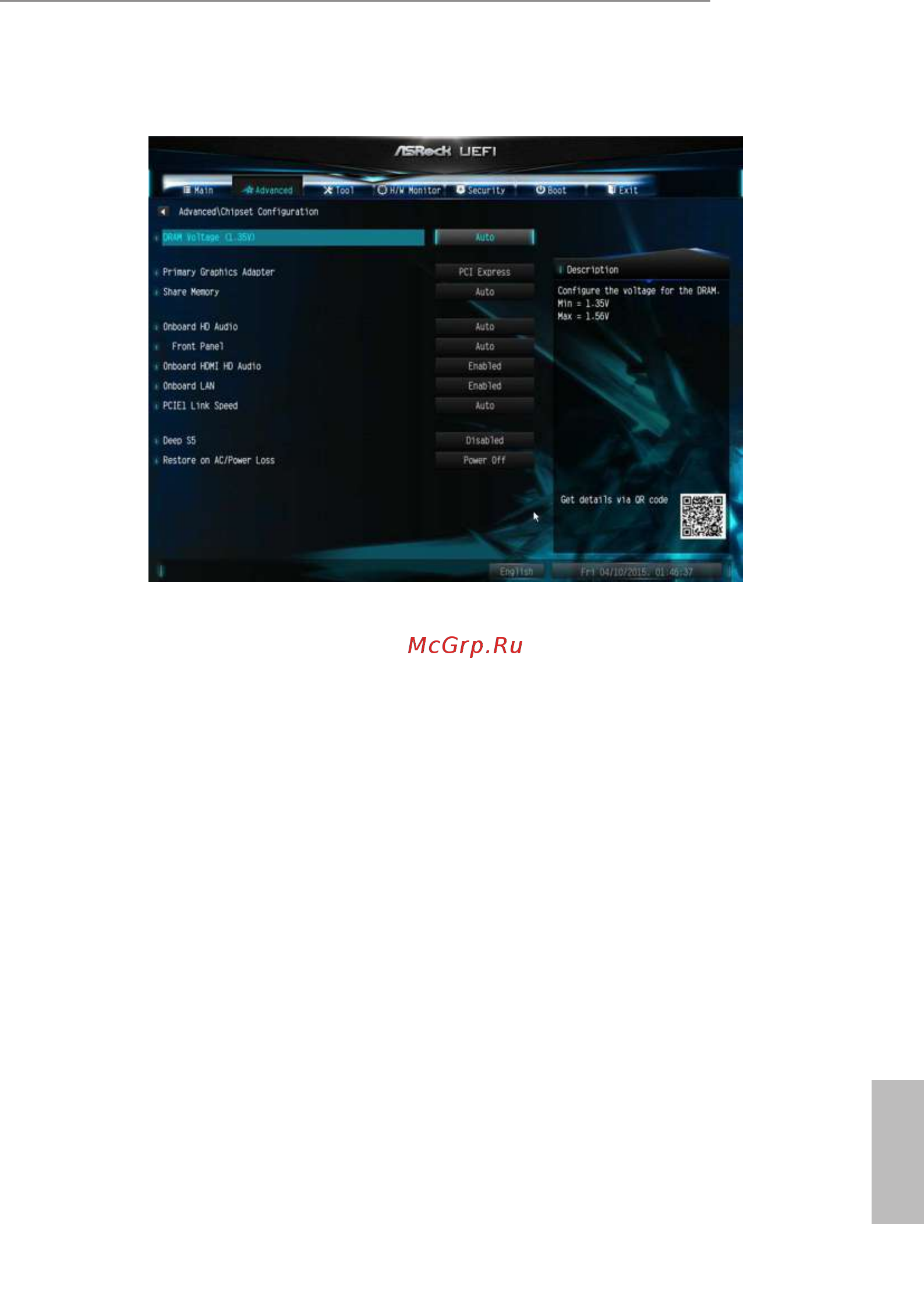

4.3.2 Chipset Conguration
DRAM Voltage
Use this to congure DRAM Voltage. e default value is [Auto].
Primary Graphics Adapter
Select a primary VGA.
Share Memory
Congure the size of memory that is allocated to the integrated graphics processor
when the system boots up.
Onboard HD Audio
Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and
automatically disable it when a sound card is installed.
Front Panel
Enable/disable front panel HD audio.
Onboard HDMI HD Audio
Enable audio for the onboard digital outputs.
Onboard LAN
Enable or disable the onboard network interface controller.
