41
English
N3150B-ITX
N3050B-ITX

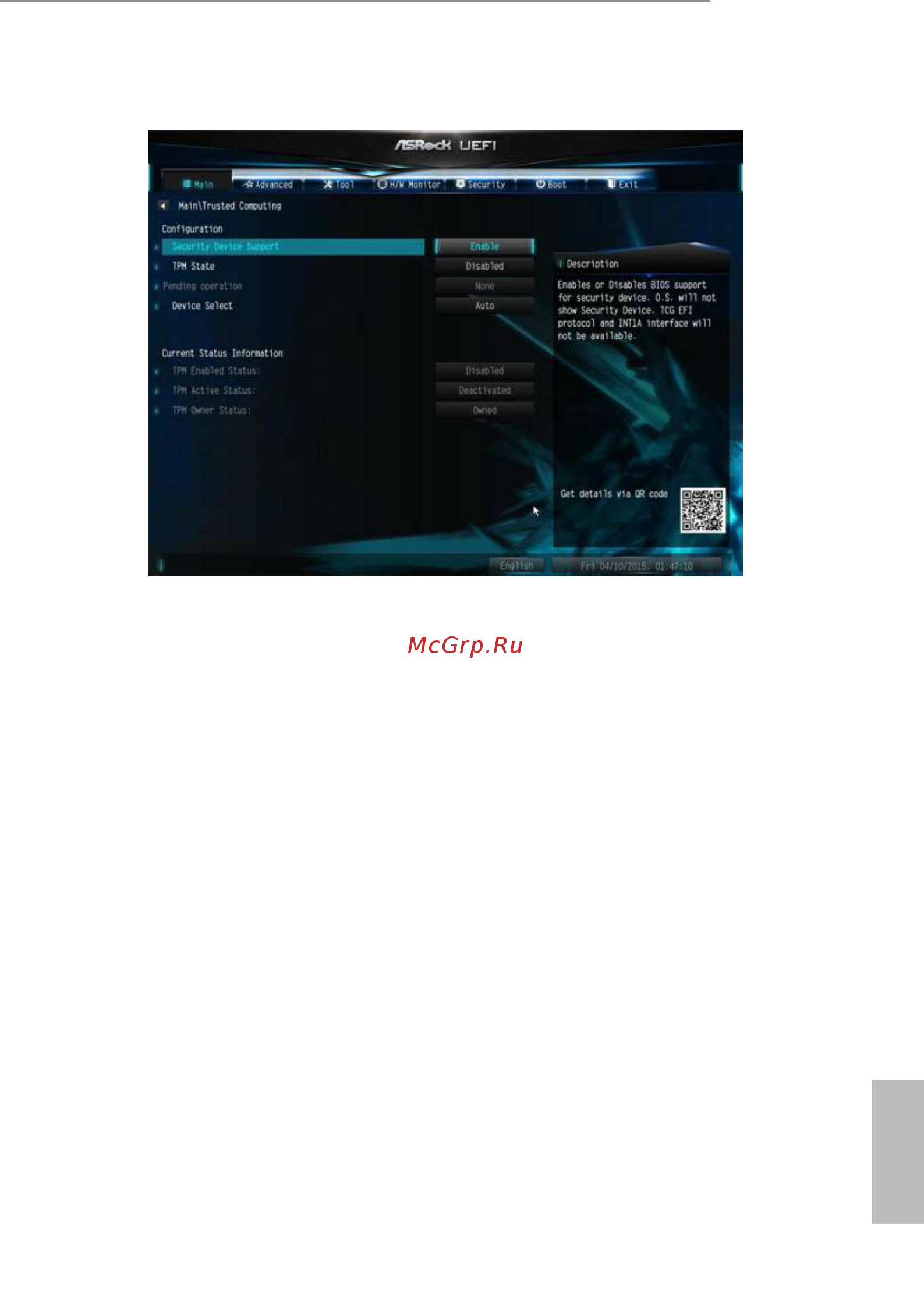

4.3.8 Trusted Computing
Security Device Support
Enable to activate Trusted Platform Module (TPM) security for your hard disk
drives.
