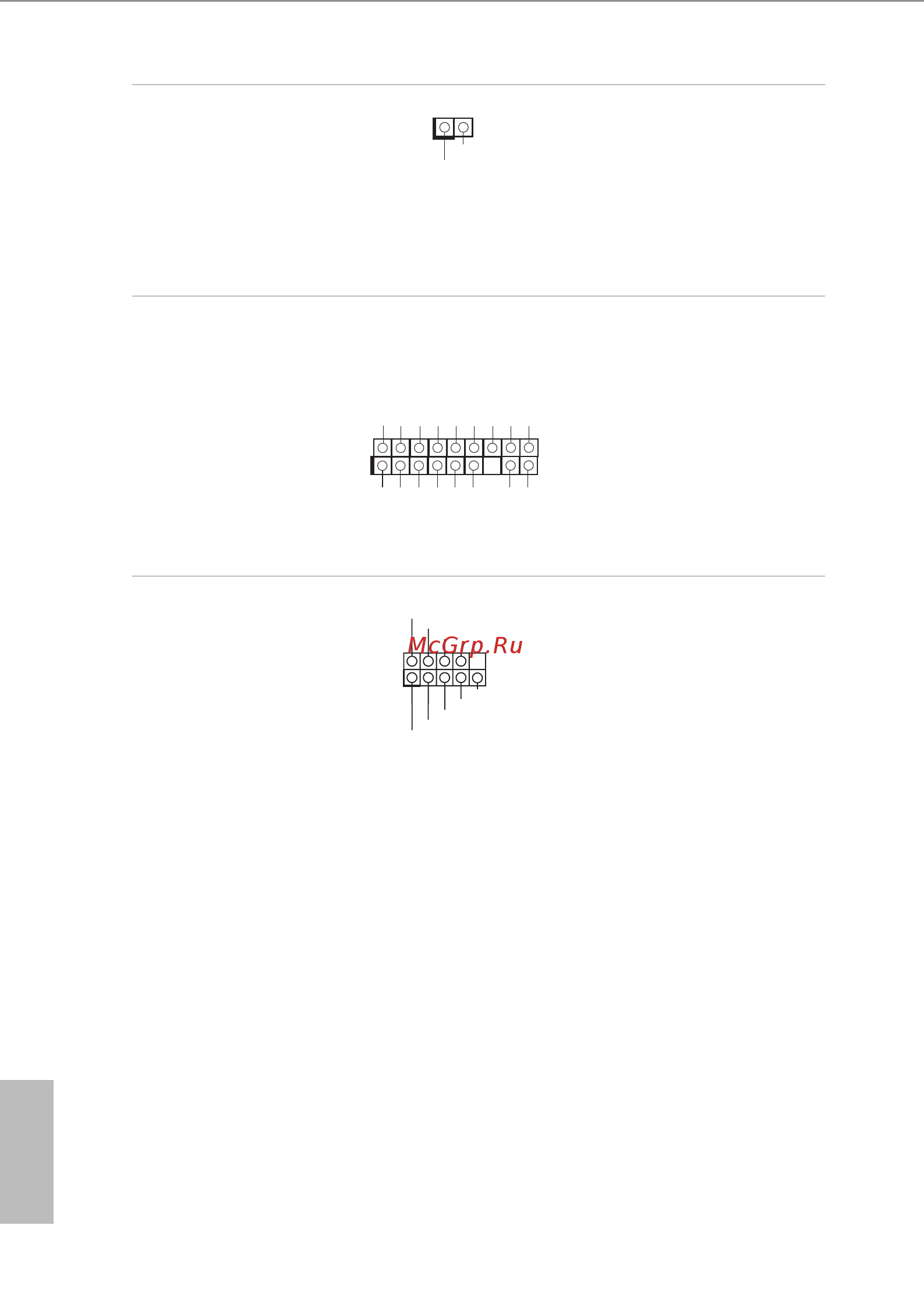

Chassis Intrusion Header
(2-pin CI1)
(see p.5, No. 13)
is motherboard supports
CASE OPEN detection feature
that detects if the chassis cove
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
TPM Header
(17-pin TPMS1)
(see p.5, No. 12)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Serial Port Header
(9-pin COM2)
(see p.5, No. 14)
is COM2 header
supports a serial port
module.
1
G N D
S M B_DATA_MAIN
LAD 2
LAD 1
G N D
S _ PWRDWN#
S E RIRQ#
G N D
P C ICLK
P C IRST#
LAD 3
+ 3 V
LAD 0
+ 3 VSB
G N D
F R AME
S M B_CLK_MAIN
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
1
Signal
GND
