41
English
J3160B-ITX
J3060B-ITX

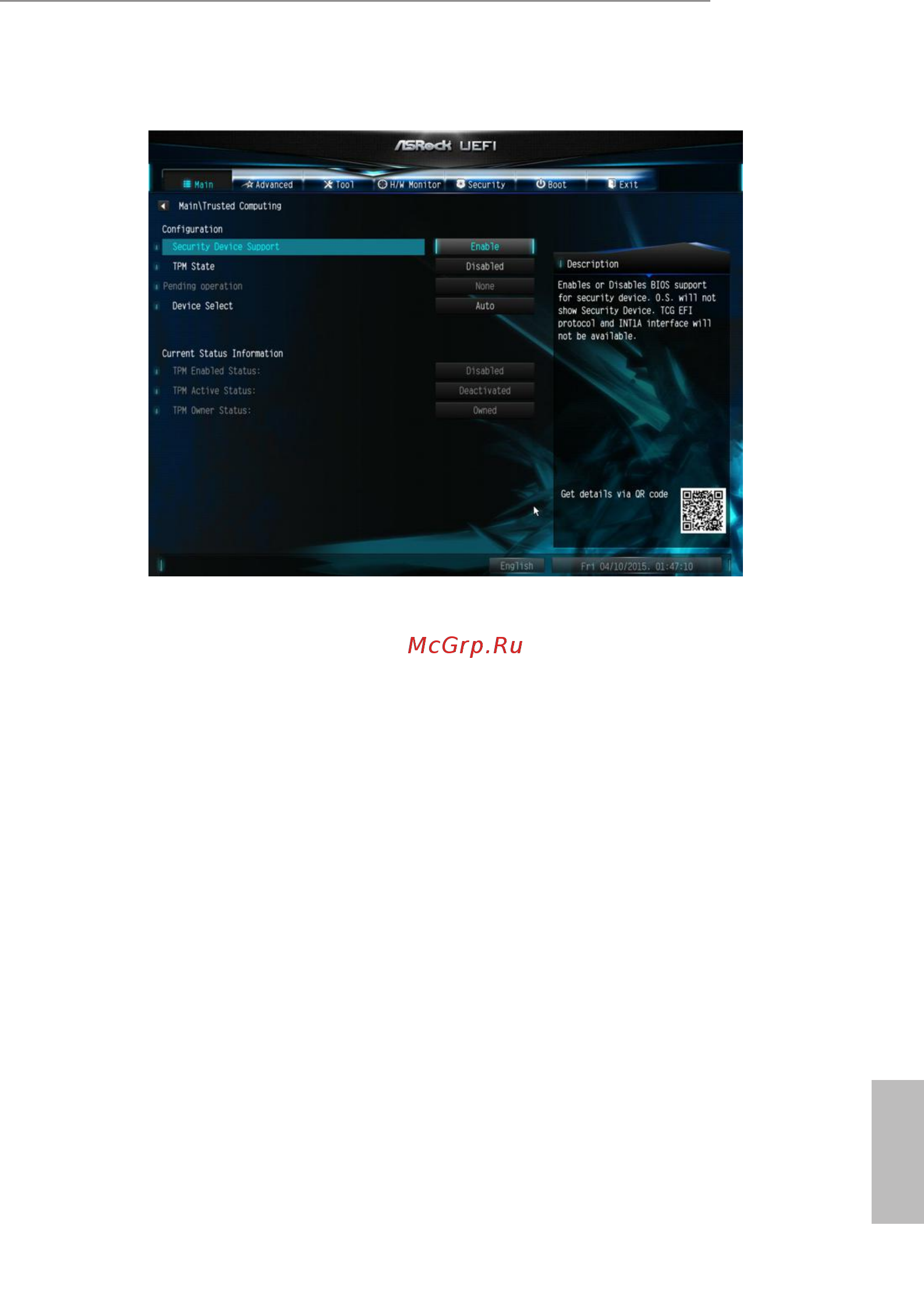

4.3.8 Trusted Computing
Security Device Support
Enable to activate Trusted Platform Module (TPM) security for your hard disk
drives.
