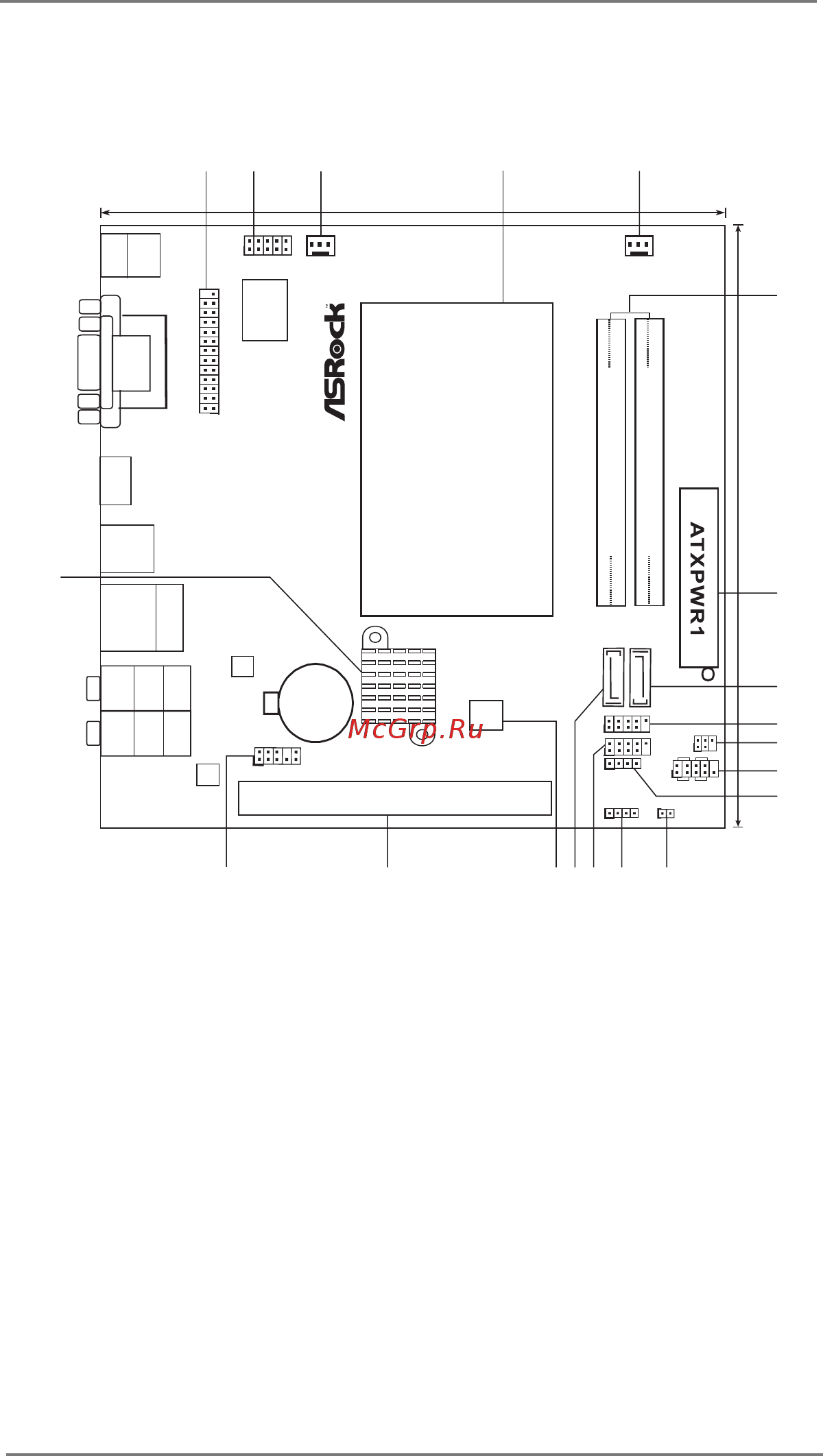

1.4 Motherboard Layout
1 Print Port Header (LPT1, White) 12 Consumer Infrared Module Header (CIR1)
2 COM Port Header (COM1) 13 Clear CMOS Jumper (CLRCMOS1)
3 CPU Fan Connector (CPU_FAN1) 14 Chassis Speaker Header
4 CPU Heatsink (SPEAKER 1, White)
5 Chassis Fan Connector (CHA_FAN1) 15 USB 2.0 Header (USB6_7, Blue)
6 2 x 204-pin DDR3 SO-DIMM Slots 16 SATA2 Connector (SATAII_1, Blue)
(DDR3_A1, DDR3_A2, Black) 17 16Mb SPI Flash
7 ATX Power Connector (ATXPWR1) 18 PCI Slot (PCI1)
8 SATA2 Connector (SATAII_2, Blue) 19 Front Panel Audio Header
9 USB 2.0 Header (USB8_9, Blue) (HD_AUDIO1, White)
10 Infrared Module Header (IR1) 20 Intel NM10 Express Chip
11 System Panel Header (PANEL1, White)
