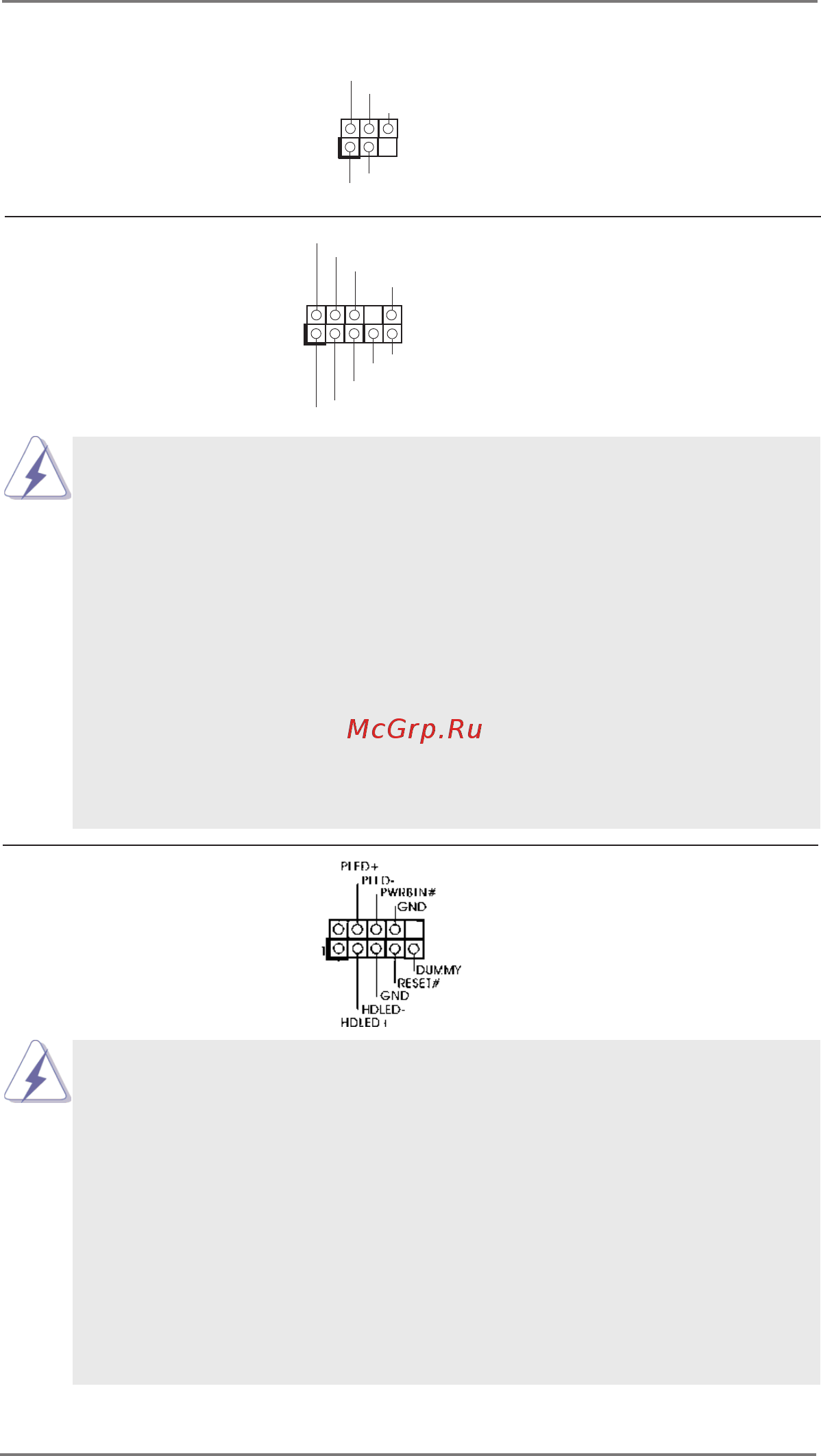

20
System Panel Header This header accommodates
(9-pin PANEL1)
several system front panel
(see p.11 No. 11)
functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
J _S EN SE
O UT 2_ L
1
M IC _R ET
P RE SE NC E#
GND
O UT 2_ R
M IC 2_ R
M IC 2_ L
OUT_RET
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1)
panel audio cable that allows
(see p.11 No. 19)
convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the "FrontMic" Tab in the Realtek Control panel. Adjust
“Recording Volume”.
Infrared Module Header This header supports an
(5-pin IR1)
optional wireless transmitting
(see p.11 No. 10)
and receiving infrared module.
1
IRTX
+5VSB
DUMMY
IRRX
GND
