ASRock AD510PV / AD410PV Motherboard

EnglishEnglish

English

CD1

Internal Audio Connector This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.2 No. 16) from sound sources such as

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2 No. 17) convenient connection and

control of audio devices.

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB6_7) ports on the I/O panel, there are

(see p.2 No. 10) two USB 2.0 headers on this

motherboard. Each USB 2.0

header cansupport two USB

2.0 ports.

(9-pin USB4_5)

(see p.2 No. 11)

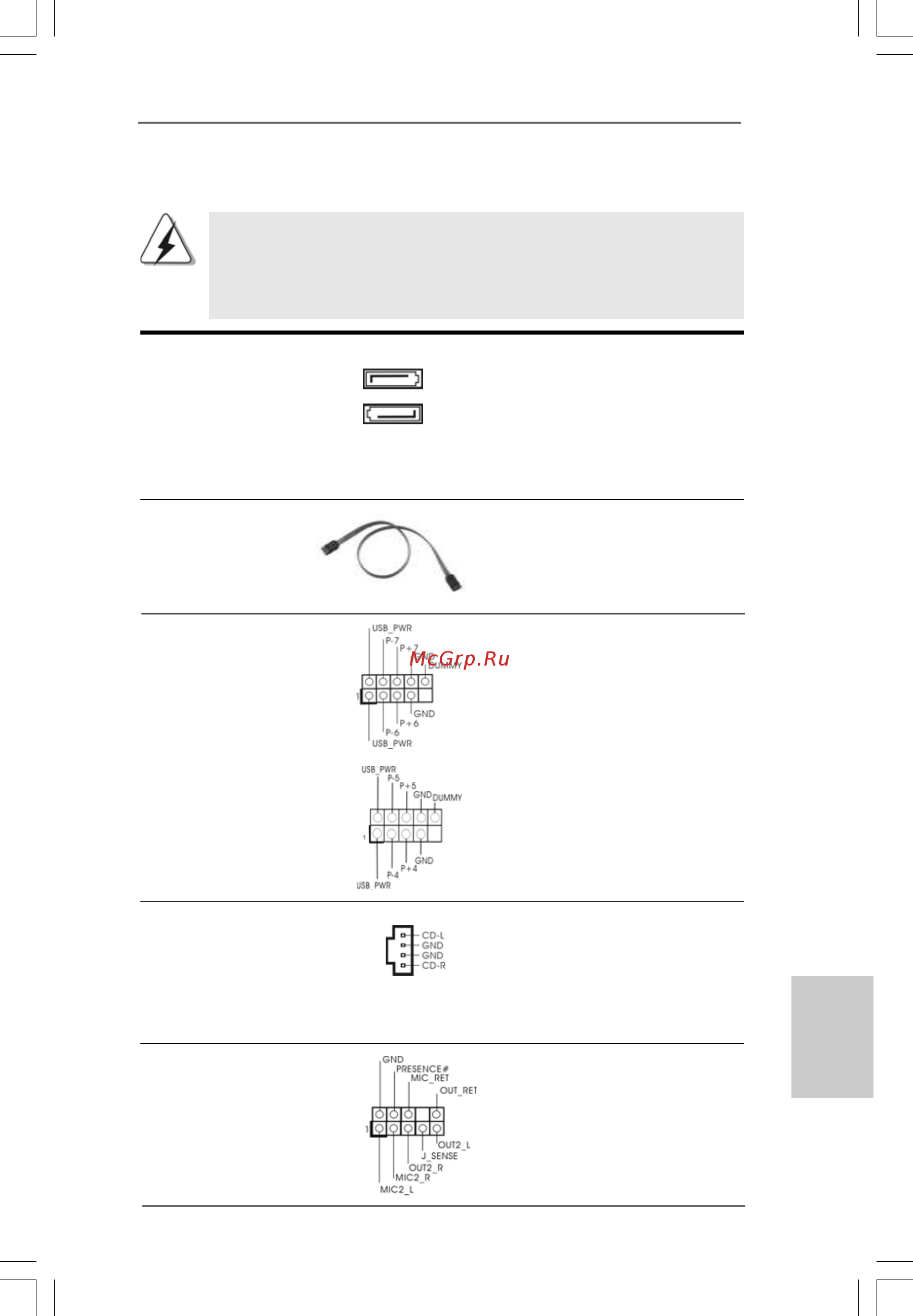

2.6 Onboard Headers and Connectors2.6 Onboard Headers and Connectors

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATAII Connectors These Serial ATAII (SATAII)

(SATAII_1: see p.2, No. 9) connectors support SATAII

(SATAII_2: see p.2, No. 8) or SATA hard disk for internal

storage devices. The current

SATAII interface allows up to

3.0 Gb/s data transfer rate.

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on the motherboard.

SATAII_2

SATAII_1
