ASRock A330GC / A230GC Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

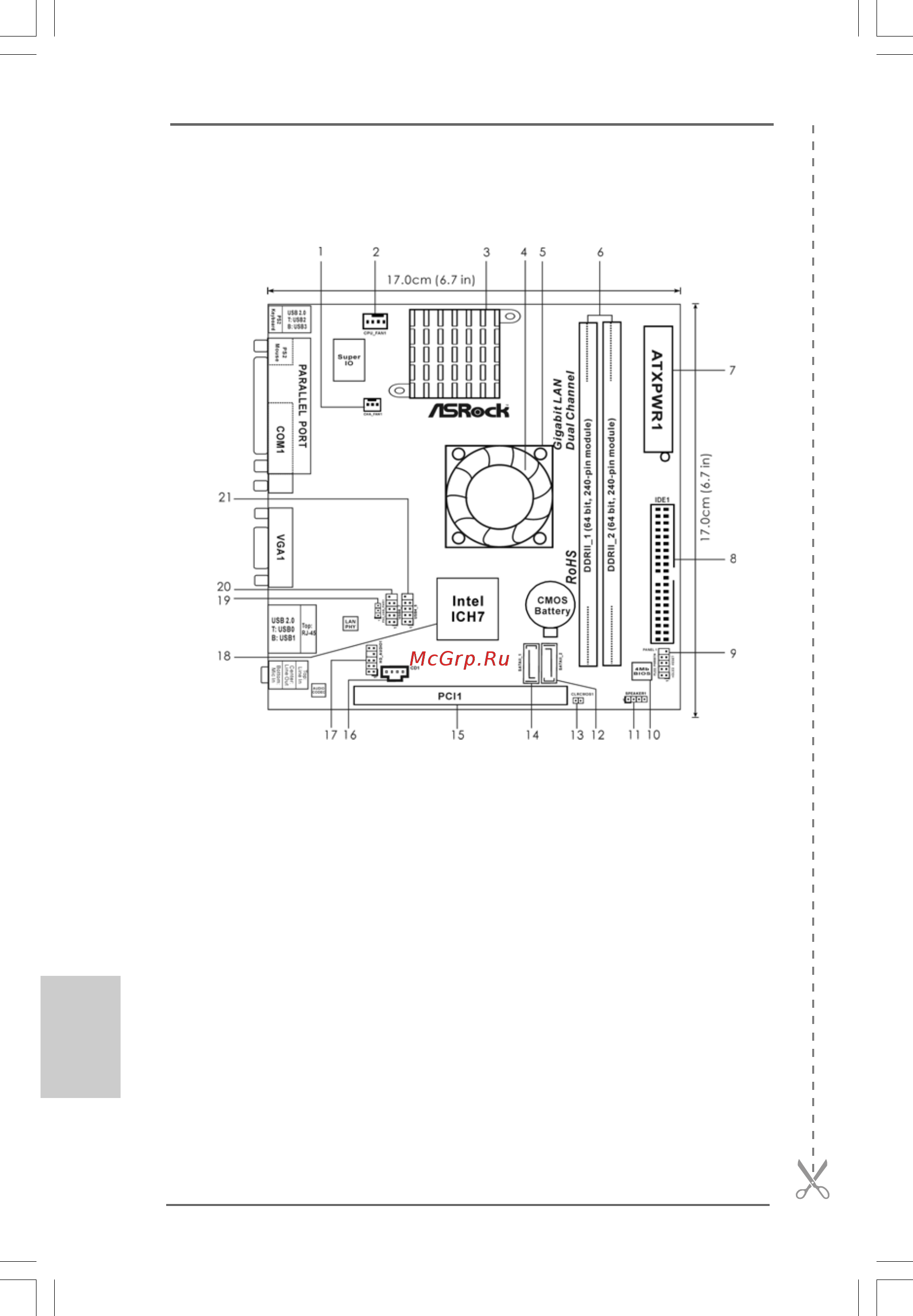

1 Chassis Fan Connector (CHA_FAN1) 12 Secondary SATAII Connector (SATAII_2; Red)

2 CPU Fan Connector (CPU_FAN1) 13 Clear CMOS Jumper (CLRCMOS1)

3 CPU Heatsink 14 Primary SATAII Connector (SATAII_1; Red)

4 NB Fan 15 PCI Slot (PCI1)

5 NB Heatsink 16 Internal Audio Connector: CD1 (Black)

6 2 x 240-pin DDR2 DIMM Slots 17 Front Panel Audio Header

(Dual Channel: DDRII_1, DDRII_2; Yellow) (HD_AUDIO1, Lime)

7 ATX Power Connector (ATXPWR1) 18 South Bridge Controller

8 IDE1 Connector (IDE1, Blue) 19 PS2_USB_PWR1 Jumper

9 System Panel Header (PANEL1, Orange) 20 USB 2.0 Header (USB6_7, Blue)

10 BIOS SPI Chip 21 USB 2.0 Header (USB4_5, Blue)

11 Chassis Speaker Header (SPEAKER 1, Purple)
