ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

(P45R2000-(P45R2000-

(P45R2000-

WiFWiF

WiF

i / P45R2000)i / P45R2000)

i / P45R2000)

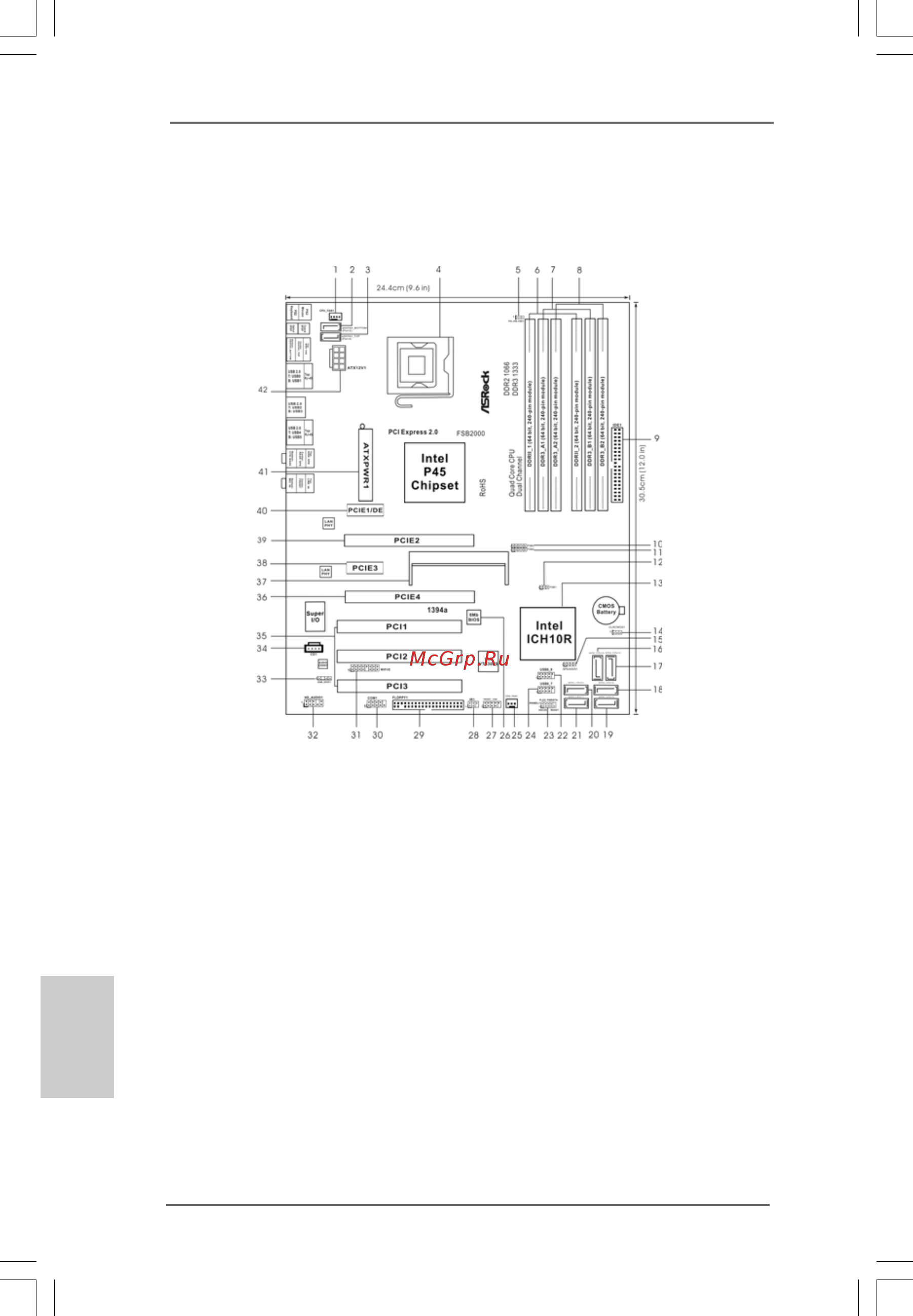

1 CPU Fan Connector (CPU_FAN1) 22 USB 2.0 Header (USB8_9, Blue)

2 eSATAII Connector (eSATAII_BOTTOM (Port 5)) 23 System Panel Header (PANEL1)

3 eSATAII Connector (eSATAII_TOP (Port 4)) 24 USB 2.0 Header (USB6_7, Blue)

4 775-Pin CPU Socket 25 Chassis Fan Connector (CHA_FAN1)

5 PS2_USB_PWR1 Jumper 26 SPI BIOS Chip

6 2 x 240-pin DDR2 DIMM Slots 27 Front Panel IEEE 1394 Header

(Dual Channel A: DDRII_1, DDRII_2; Yellow) (FRONT_1394)

7 2 x 240-pin DDR3 DIMM Slots 28 DeskExpress Hot Plug Detection Header

(Dual Channel B: DDR3_A1, DDR3_B1; Green) (IR1)

8 2 x 240-pin DDR3 DIMM Slots 29 Floppy Connector (FLOPPY1)

(Dual Channel C: DDR3_A2, DDR3_B2; Pink) 30 COM Port Header (COM1)

9 IDE1 Connector (IDE1, Blue) 31 WiFi/E Header (WIFI/E)

10 FSB3 Jumper 32 Front Panel Audio Header (HD_AUDIO1)

11 FSB2 Jumper 33 HDMI_SPDIF Header (HDMI_SPDIF1)

12 FSB1 Jumper 34 Internal Audio Connector: CD1 (Black)

13 South Bridge Controller 35 PCI Slots (PCI1 - 3)

14 Clear CMOS Jumper (CLRCMOS1) 36 PCI Express 2.0 x16 Slot (PCIE4, Blue)

15 Chassis Speaker Header (SPEAKER 1) 37 SLI/XFire Switch Card Retention Slot

16 SATAII Connector (SATAII_6 (Port5), Orange) 38 PCI Express x1 Slot (PCIE3)

17 SATAII Connector (SATAII_5 (Port4), Orange) 39 PCI Express 2.0 x16 Slot (PCIE2, Green)

18 SATAII Connector (SATAII_3 (Port2), Red) 40 PCI Express x1 Slot (PCIE1/DE)

19 SATAII Connector (SATAII_4 (Port3), Red) 41 ATX Power Connector (ATXPWR1)

20 SATAII Connector (SATAII_1 (Port0), Red) 42 ATX 12V Connector (ATX12V1)

21 SATAII Connector (SATAII_2 (Port1), Red)
