1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout

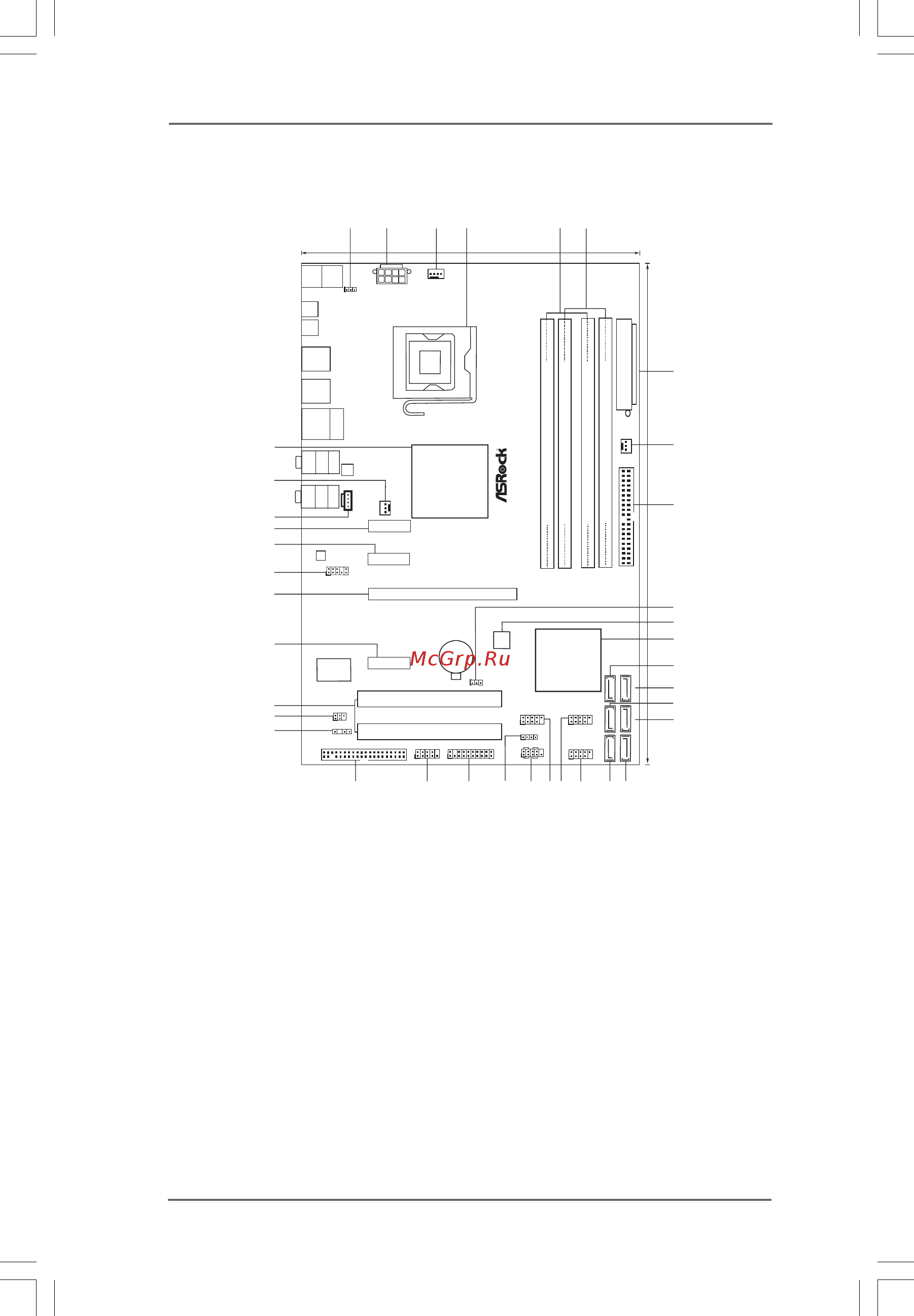

1.3 Motherboard Layout
1 PS2_USB_PWR1 Jumper 20 USB 2.0 Header (USB8_9, Blue)
2 ATX 12V Connector (ATX12V1) 21 USB 2.0 Header (USB10_11, Blue)
3 CPU Fan Connector (CPU_FAN1) 22 System Panel Header (PANEL1, Orange)
4 775-Pin CPU Socket 23 Chassis Speaker Header
5 2 x 240-pin DDR3 DIMM Slots (SPEAKER 1, Purple)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 24 TPM Header (TPM1)
6 2 x 240-pin DDR3 DIMM Slots 25 COM Port Header (COM1)
(Dual Channel: DDR3_A2, DDR3_B2; White) 26 Floppy Connector (FLOPPY1)
7 ATX Power Connector (ATXPWR1) 27 HDMI_SPDIF Header
8 Chassis Fan Connector (CHA_FAN1) (HDMI_SPDIF1, Yellow)
9 IDE1 Connector (IDE1, Blue) 28 Infrared Module Header (IR1)
10 Clear CMOS Jumper (CLRCMOS1) 29 PCI Slots (PCI1 - 2)
11 SPI BIOS Chip 30 PCI Express x1 Slot (PCIE4)
12 South Bridge Controller 31 PCI Express 2.0 x16 Slot (PCIE3, Blue)
13 Primary SATAII Connector (SATAII_1 (Port 0), Red) 32 Front Panel Audio Header
14 Secondary SATAII Connector (SATAII_2 (Port 1), Red) (HD_AUDIO1, Lime)
15 Third SATAII Connector (SATAII_3 (Port 2), Red) ) 33 PCI Express x1 Slot (PCIE2)
16 Fourth SATAII Connector (SATAII_4 (Port 3), Red) 34 PCI Express x1 Slot (PCIE1)
17 Sixth SATAII Connector (SATAII_6 (Port 5), Red) 35 Internal Audio Connector: CD1 (Black)
18 Fifth SATAII Connector (SATAII_5 (Port 4), Red) 36 Power Fan Connector (PWR_FAN1)
19 USB 2.0 Header (USB6_7, Blue) 37 North Bridge Controller
Intel
P45
Chipset
Intel
ICH10
ATXPWR1
CD1
ATX12V1
1
PS2_USB_PWR1
Super
I/O
8Mb
BIOS
AUDIO
CODEC
CPU_FAN1
CMOS
Battery
IDE1
CLRCMOS1
1
CHA_FAN1
FLOPPY1
1
HD_AUDIO1
HDLED RESET
PLED PWRBTN
SPEAKER1
1
PANEL1
1
30.5cm (12.0 in)
20.3cm (8.0 in)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
23
24
22
16
17
18
19
20
25
26
27
28
29
30
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
1
HDMI_SPDIF1
IR1
1
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PCI1
PCI2
PS2
Mouse
PS2
Keyboard
USB 2.0
T: U SB 4
B: USB5
Top:
RJ-45
33
34
35
PCI Express 2.0
Coaxial
SPDIF
Optical
SPDIF
USB 2.0
T:USB0
B: USB1
COM1
1
LAN
PHY
USB6_7
11
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
SATAII_5(Port 4)
PCIE1
RoHS
FSB2000
USB 2.0
T:USB2
B: USB3
32
31
P45DE3
DDR3 1600
Dual Channel
21
PCIE2
PCIE4
PCIE3
TPM1
11
USB8_9
11
USB10_11
11
SATAII_3(Port 2)
SATAII_1(Port 0)
SATAII_6(Port 5)
SATAII_4(Port 3)
SATAII_2(Port 1)
PWR_FAN1
EuP Ready
36
37
