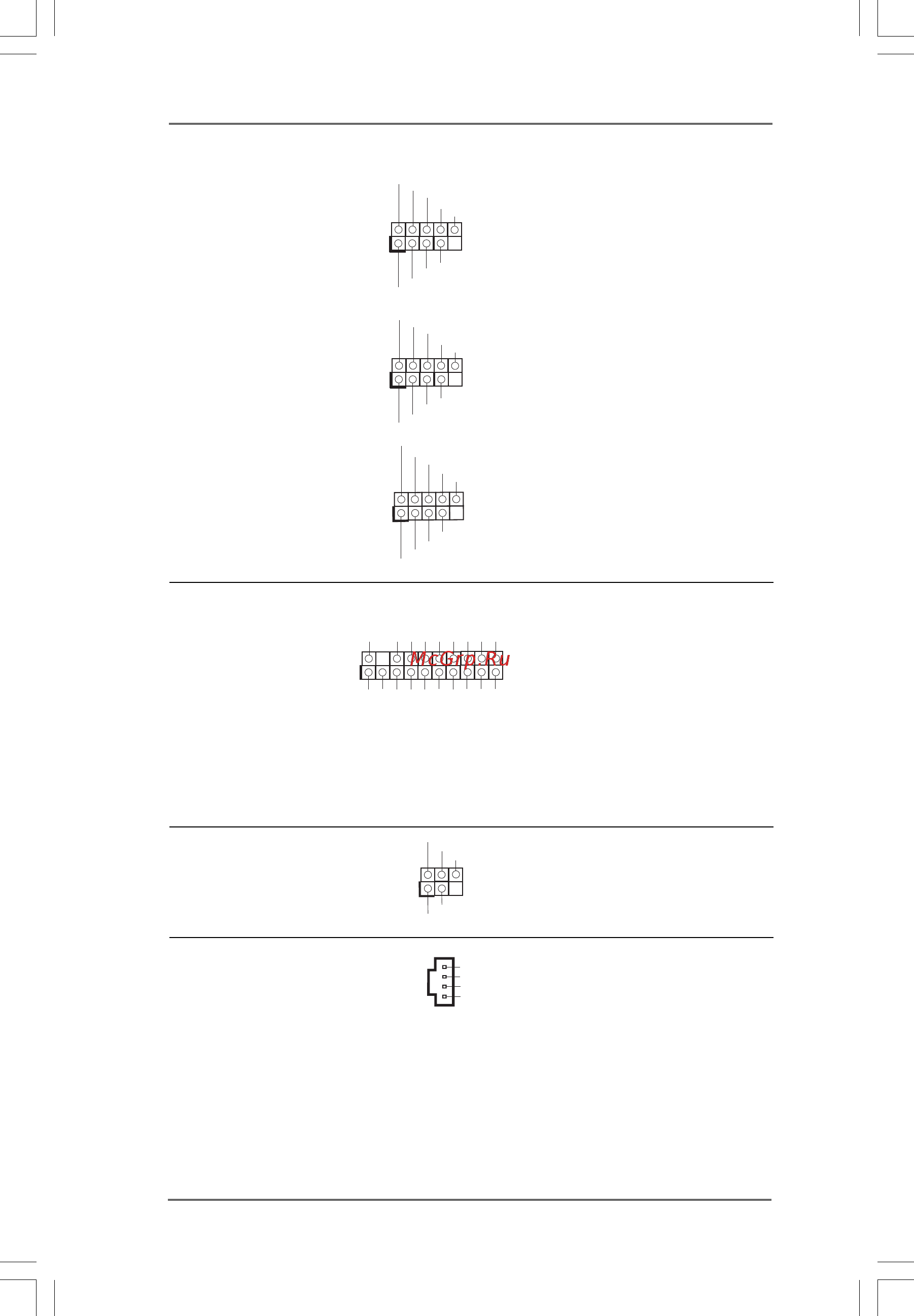

USB 2.0 Headers Besides six default USB 2.0
(9-pin USB10_11) ports on the I/O panel, there are
(see p.10 No. 21) three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.10 No. 20)
(9-pin USB6_7)
(see p.10 No. 19)
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.10 No. 28) and receiving infrared module.
DUMMY
GND
+5V
IRTX
IRRX
1
1
U SB_PWR
P-8
GND
DUMMY
U SB_PWR
P+8
GND
P-9
P+9
1
U SB_P WR
P-10
GND
DUMMY
U SB_P WR
P +10
GND
P-11
P +11
U SB_P WR
U SB_P WR
P +7
P-7
P +6
P-6
GND
GND
DUMMY
1
TPM Header This connector supports a
(19-pin TPM1) Trusted Platform Module (TPM)
(see p.10 No. 24) system, which can securely
store keys, digital certificates,
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
1
GND
NC
LAD2
LAD1
GND
NC
SERIRQ
CLKRUN
NC
PCICLK
PCIRST#
LAD3
+3V
LAD0
NC
+3VSB
GND
PWRDWN
FRAME
Internal Audio Connectors This connector allows you
(4-pin CD1) to receive stereo audio input
(see p.10 No. 35) from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
CD-L
GND
GND
CD-R
CD1
