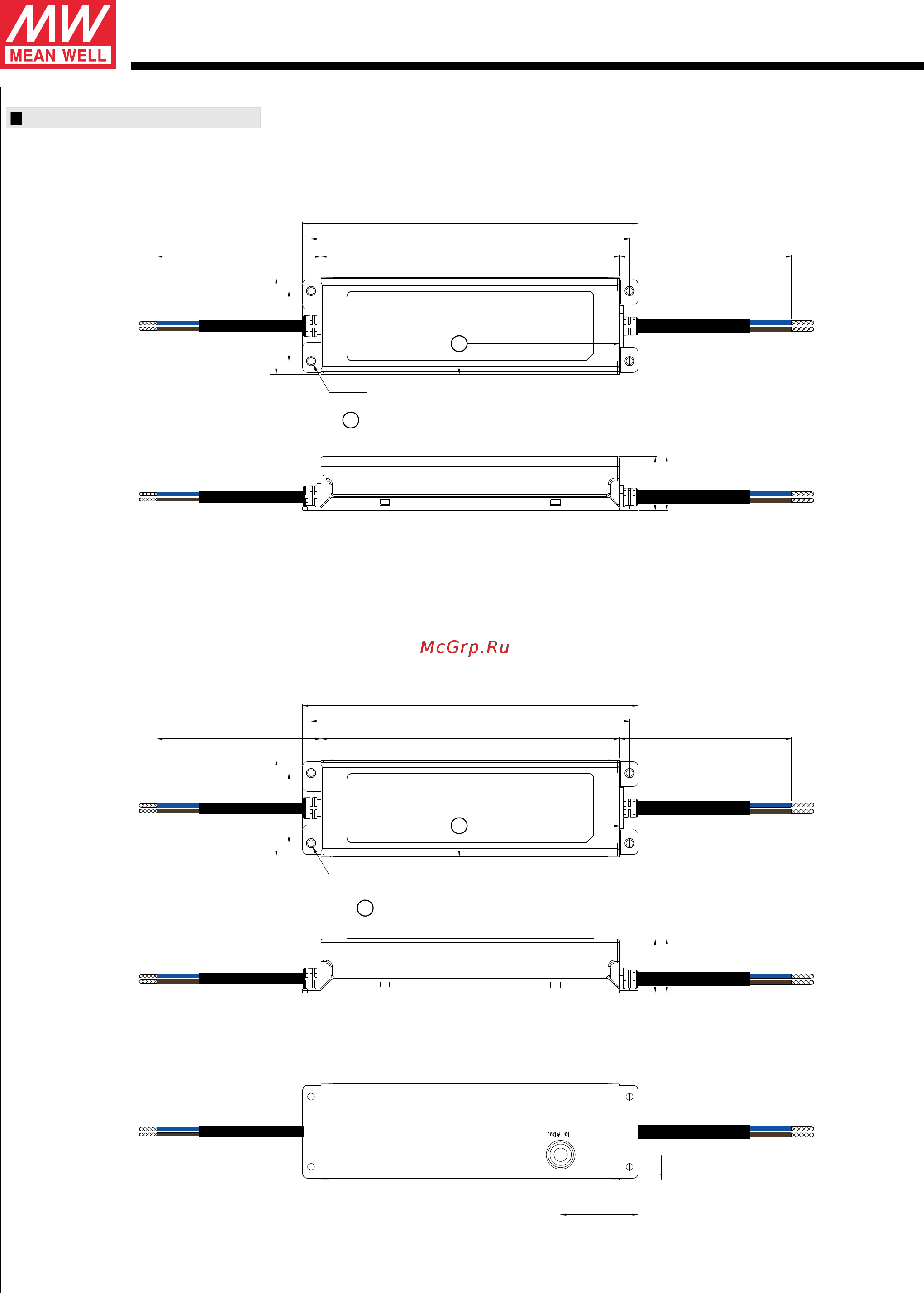

MECHANICAL SPECIFICATION
105~150W Constant Current Mode LED Driver
ELG-150-C series
CASE NO.: 237A Unit:mm
※ Blank-Type
tc
: Max. Case Temperature
※ A-Type(except for 1750mA, 2100mA models)
tc
tc
: Max. Case Temperature
tc
208
219
195
300±20
300±20
45.8
63
35.5
35
AC/L(Brown)
AC/N(Blue)
105
20
4- 4.5ψ
208
219
195
300±20
300±20
45.8
63
35.5
35
AC/L(Brown)
AC/N(Blue)
50.5
16.5
105
20
4- 4.5ψ
Vo+(Brown)
Vo-(Blue)
SJOW 17AWGx2C
&H05RN-F 1.0mm
2
SJOW 17AWGx2C
&H05RN-F 1.0mm
2
SJOW 17AWGx2C
&H05RN-F 1.0mm
2
SJOW 17AWGx2C
&H05RN-F 1.0mm
2
Vo+(Brown)
Vo-(Blue)
File Name:ELG-150-C-SPEC 2018-09-30
