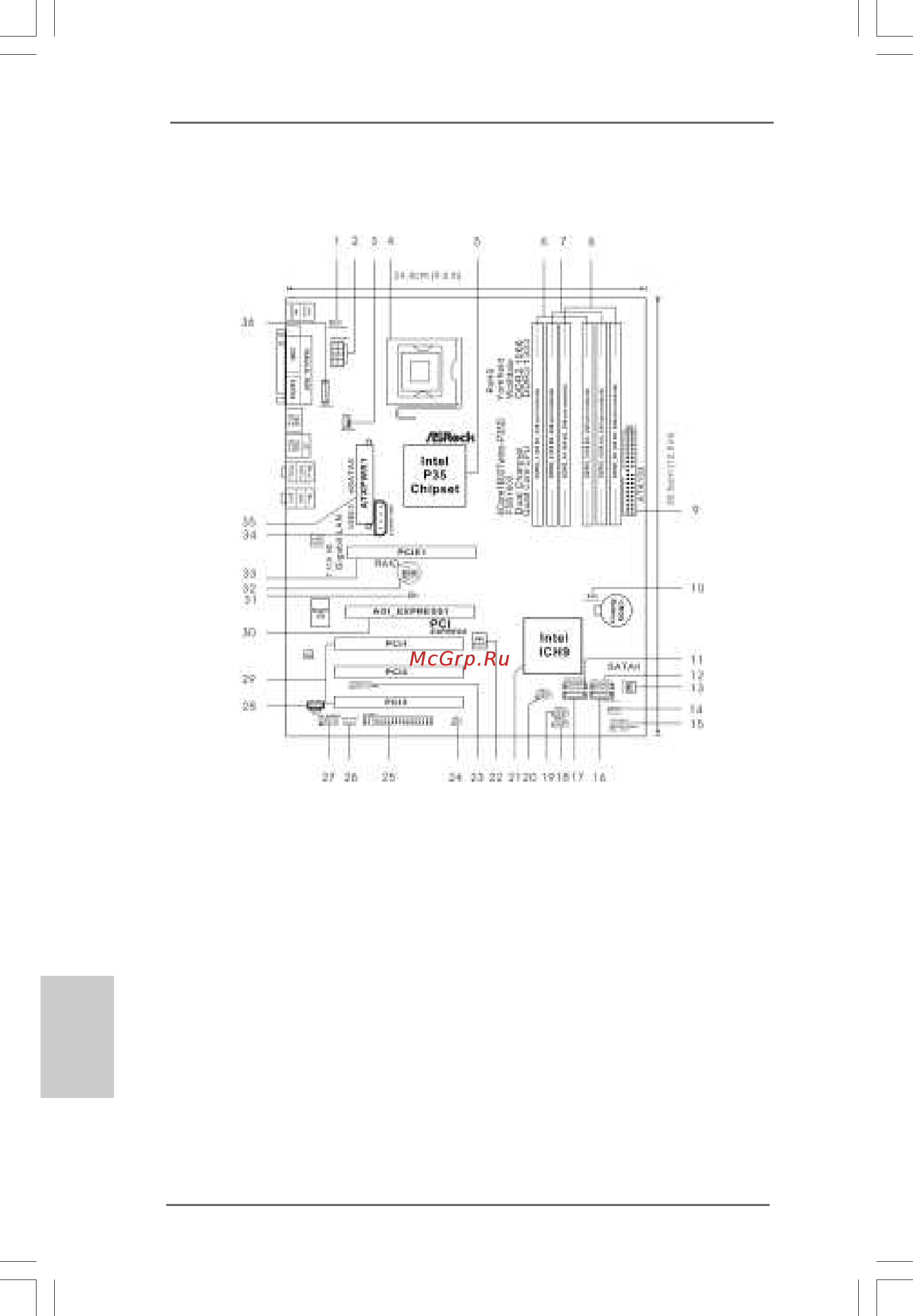

ASRock 4Core1600Twins-P35D Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 18 USB 2.0 Header (USB6_7, Blue)

2 ATX 12V Connector (ATX12V1) 19 USB 2.0 Header (USB4_5, Blue)

3 CPU Fan Connector (CPU_FAN1) 20 USB 2.0 Header (USB8_9, Blue)

4 775-Pin CPU Socket 21 South Bridge Controller

5 North Bridge Controller 22 SPI BIOS Chip

6 2 x 240-pin DDR2 DIMM Slots 23 WiFi Header (WiFi)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 24 DeskExpress Hot Plug Detection Header

7 2 x 240-pin DDR2 DIMM Slots (IR1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDR3 DIMM Slots 26 HDMI_SPDIF Header (HDMI_SPDIF1)

(Dual Channel C: DDR3_A1, DDR3_B1; Green) 27 Front Panel Audio Header (HD_AUDIO1)

9 IDE1 Connector (IDE1, Blue) 28 Internal Audio Connector: CD1 (Black)

10 Clear CMOS Jumper (CLRCMOS1) 29 PCI Slots (PCI1 - 3)

11 SATAII Connector (SATAII_5 (Port4), Red) 30 AGI Express Slot (AGI_EXPRESS1)

12 SATAII Connector (SATAII_1 (Port0), Red) 31 FSB1 Jumper

13 Chassis Fan Connector (CHA_FAN1) 32 FSB2 / FSB3 Jumpers

14 Chassis Speaker Header (SPEAKER 1) 33 PCI Express x16 Slot (PCIE1)

15 System Panel Header (PANEL1) 34 SLI / XFIRE Power Connector

16 SATAII Connector (SATAII_2 (Port1), Red) 35 ATX Power Connector (ATXPWR1)

17 SATAII Connector (SATAII_6 (Port5), Orange) 36 eSATAII Connector (eSATAII)
