ASRock G31M-VS2 Motherboard

EnglishEnglish

English

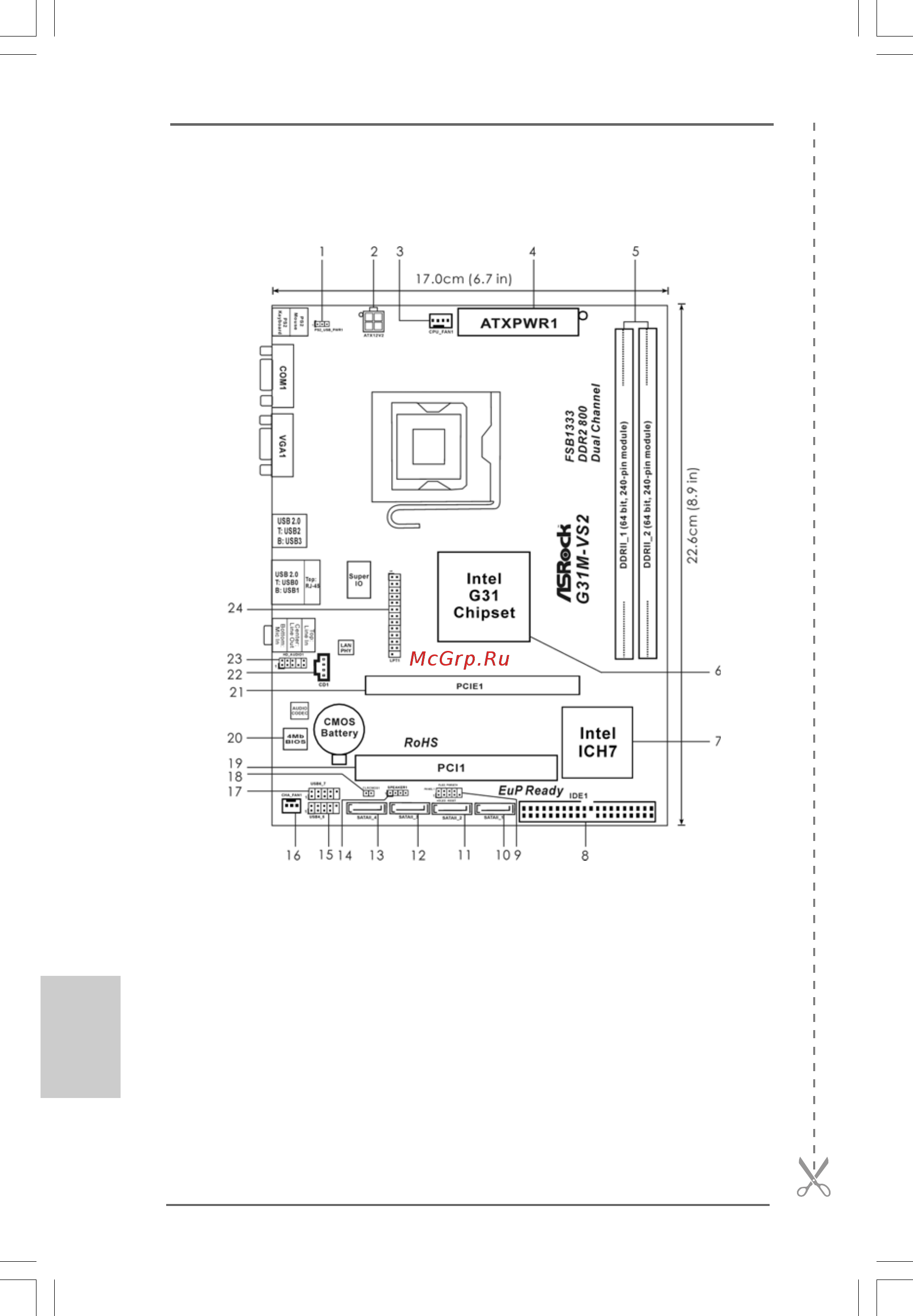

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 14 Chassis Speaker Header (SPEAKER 1, White)

2 ATX 12V Connector (ATX12V2) 15 USB 2.0 Header (USB4_5, Blue)

3 CPU Fan Connector (CPU_FAN1) 16 Chassis Fan Connector (CHA_FAN1)

4 ATX Power Connector (ATXPWR1) 17 USB 2.0 Header (USB6_7, Blue)

5 2 x 240-pin DDR2 DIMM Slots 18 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 19 PCI Slot (PCI1)

6 North Bridge Controller 20 BIOS SPI Chip

7 South Bridge Controller 21 PCI Express x16 Slot (PCIE1)

8 IDE1 Connector (IDE1, Blue) 22 Internal Audio Connector: CD1 (Black)

9 System Panel Header (PANEL1, White) 23 Front Panel Audio Header

10 Primary SATAII Connector (SATAII_1; Blue) (HD_AUDIO1, White)

11 Secondary SATAII Connector (SATAII_2; Blue) 24 Print Port Header (LPT1, White)

12 Third SATAII Connector (SATAII_3; Blue)

13 Third SATAII Connector (SATAII_4; Blue)
