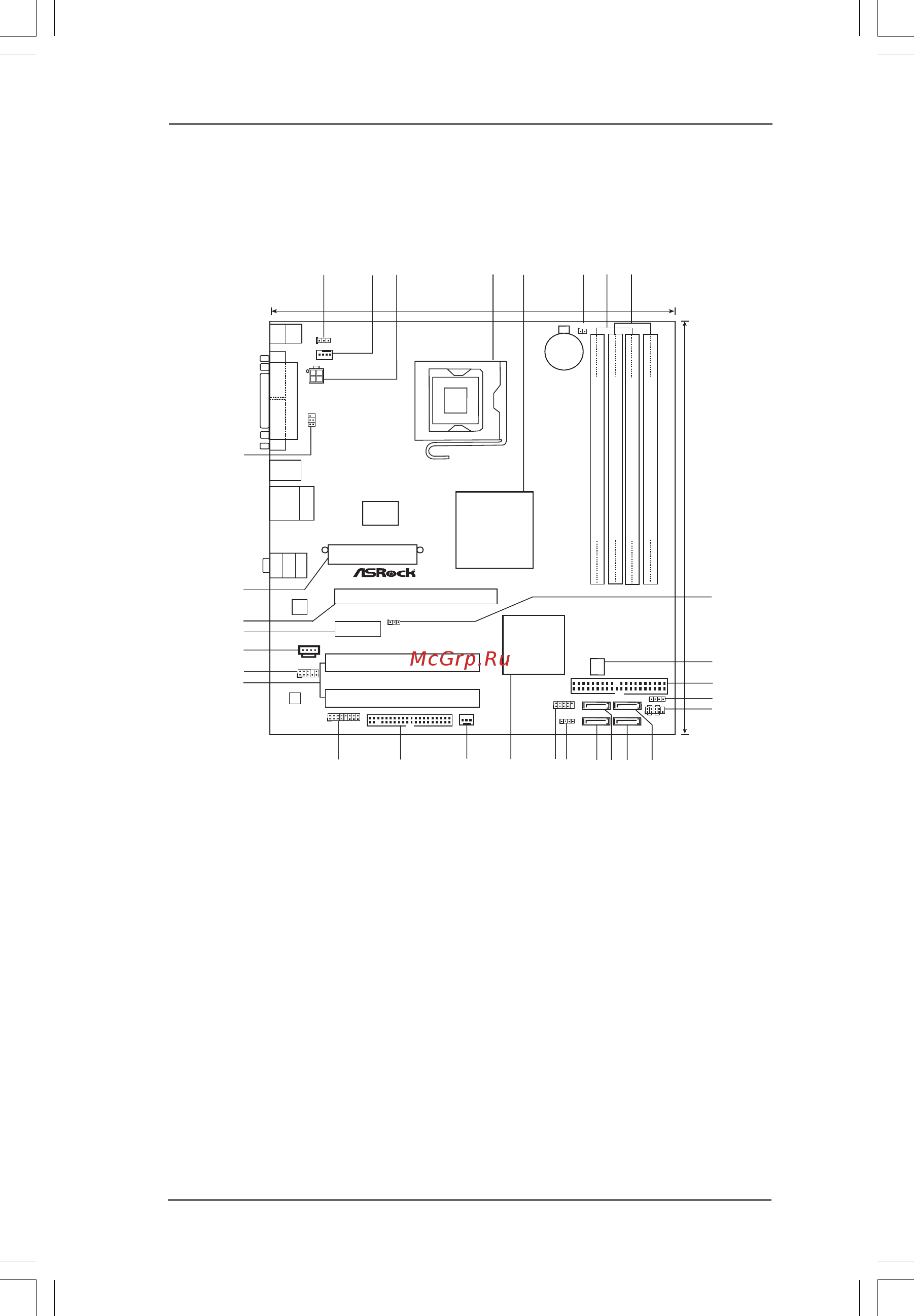

1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout
Intel
G31
Chipset
Intel
ICH7
ATXPWR1
CD1
ATX12V1
1
PS2_USB_PWR1
Super
I/O
4Mb
BIOS
LAN
PHY
AUDIO
CODEC
PCIE2/DE
PCIE1
CPU_FAN1
CMOS
Battery
PCI1
PCI
EXPRESS
4Core1600-GLAN/M
DDR2 800
Quad Core CPU
IDE1
SATAII_4
CLRCMOS1
1
CHA_FAN1
FLOPPY1
1
HD_AUDIO1
HDLED RESET
PLED PWRBTN
SPEAKER1
1
PANEL1
1
24.4cm (9.6 in)
24.4cm (9.6 in)
1
2
3
4
5
6
78
9
10
11
12
13
14
1516
24
25
23
17
18
19
20
21
22
26
27
28
29
30
DDRII_1 (64 bit, 240-pin module)
DDRII_2 (64 bit, 240-pin module)
DDRII_3 (64 bit, 240-pin module)
DDRII_4 (64 bit, 240-pin module)
RoHS
Yorkfield
Dual Channel
SATAII
IR1
1
USB4_5
11
Wolfdale
Gigabit LAN
SATAII_2
SATAII_3
FSB1600
SATAII_1
FD
1
PCI2
USB 2.0
T: U SB2
B: USB3
USB 2.0
T: U SB0
B: USB1
Top:
RJ-45
PARALLEL PORT
COM1
PS2
Mouse
PS2
Keyboard
VGA1
Top:
Line In
Center:
Line Out
Bottom:
Mic In
WIFI/E
1
USB6
1
1 PS2_USB_PWR1 Jumper 16 Third SATAII Connector (SATAII_3)
2 CPU Fan Connector (CPU_FAN1) 17 Primary SATAII Connector (SATAII_1)
3 ATX 12V Connector (ATX12V1) 18 USB 2.0 Header (USB6, Blue)
4 775-Pin CPU Socket 19 USB 2.0 Header (USB4_5, Blue)
5 North Bridge Controller 20 South Bridge Controller
6 Clear CMOS Jumper (CLRCMOS1) 21 Chassis Fan Connector (CHA_FAN1)
7 2 x 240-pin DDR2 DIMM Slots 22 Floppy Connector (FLOPPY1)
(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 WiFi/E Header (WIFI/E)
8 2 x 240-pin DDR2 DIMM Slots 24 PCI Slots (PCI1 - 2)
(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 Front Panel Audio Header (HD_AUDIO1)
9 FD Jumper 26 Internal Audio Connector: CD1 (Black)
10 Flash Memory 27 PCI Express x1 Slot (PCIE2/DE)
11 IDE1 Connector (IDE1, Blue) 28 PCI Express x16 Slot (PCIE1)
12 Chassis Speaker Header (SPEAKER 1) 29 ATX Power Connector (ATXPWR1)
13 System Panel Header (PANEL1) 30 DeskExpress Hot Plug Detection Header
14 Fourth SATAII Connector (SATAII_4) (IR1)
15 Secondary SATAII Connector (SATAII_2)
