ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

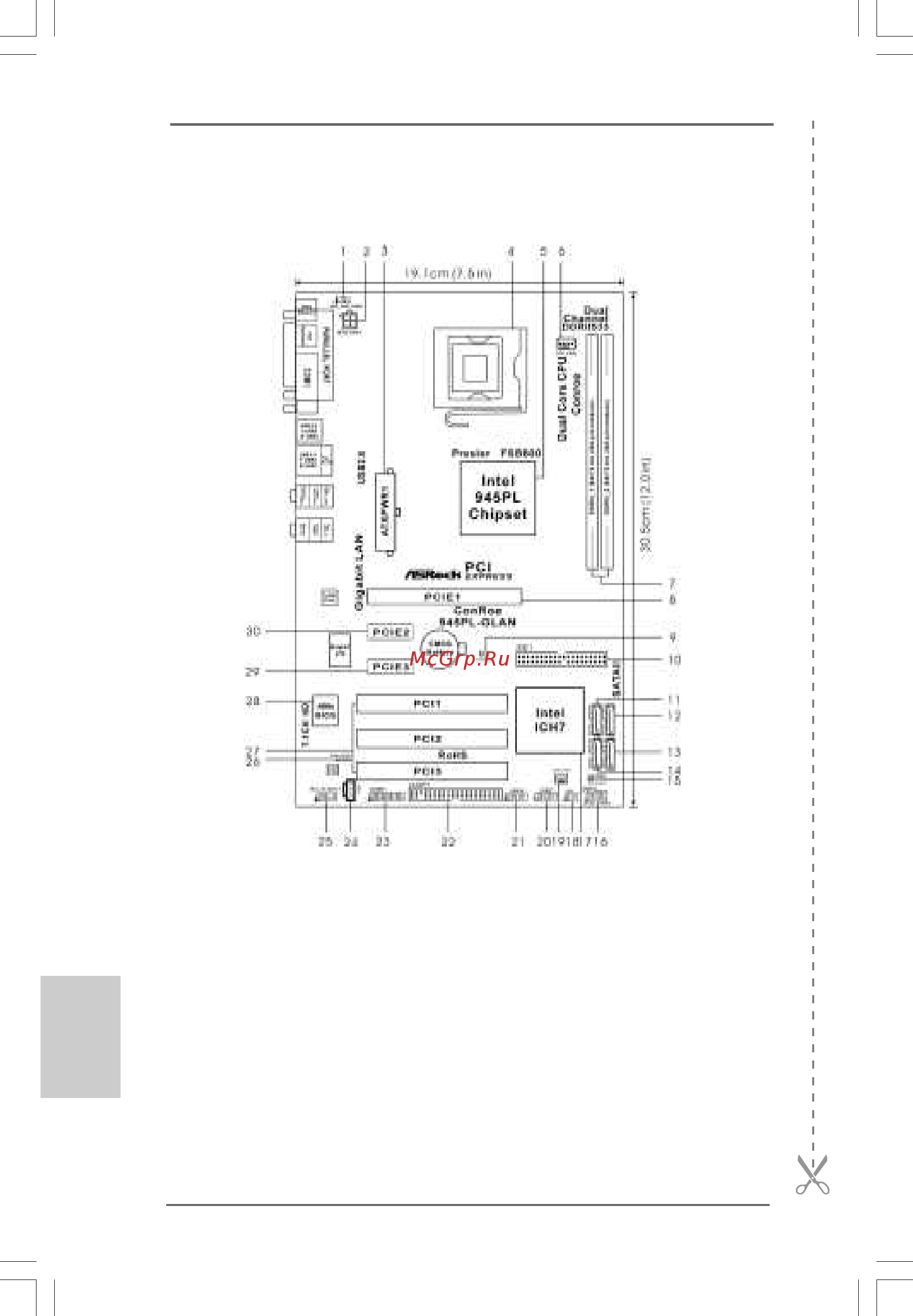

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 16 System Panel Header (PANEL1)

2 ATX 12V Connector (ATX12V1) 17 South Bridge Controller

3 ATX Power Connector (ATXPWR1) 18 Infrared Module Header (IR1)

4 775-Pin CPU Socket 19 Chassis Fan Connector (CHA_FAN1)

5 North Bridge Controller 20 USB 2.0 Header (USB67, Blue)

6 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB45, Blue)

7 2 x 240-pin DDRII DIMM Slots 22 Floppy Connector (FLOPPY1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 23 Game Port Header (GAME1)

8 PCI Express x16 Slot (PCIE1) 24 Internal Audio Connector: CD1 (Black)

9 Clear CMOS Jumper (CLRCMOS1) 25 Front Panel Audio Header (HD_AUDIO1)

10 IDE1 Connector (IDE1, Blue) 26 HDMI_SPDIF Header (HDMI_SPDIF1)

11 SATAII Connector (SATAII_3 (PORT2); Orange) 27 PCI Slots (PCI1- 3)

12 SATAII Connector (SATAII_4 (PORT3); Orange) 28 BIOS FWH Chip

13 SATAII Connector (SATAII_2 (PORT1); Red) 29 PCI Express x1 Slot (PCIE3)

14 SATAII Connector (SATAII_1 (PORT0); Red) 30 PCI Express x1 Slot (PCIE2)

15 Chassis Speaker Header (SPEAKER 1)
