ASRock ConRoe945PL-GLAN Motherboard

EnglishEnglish

English

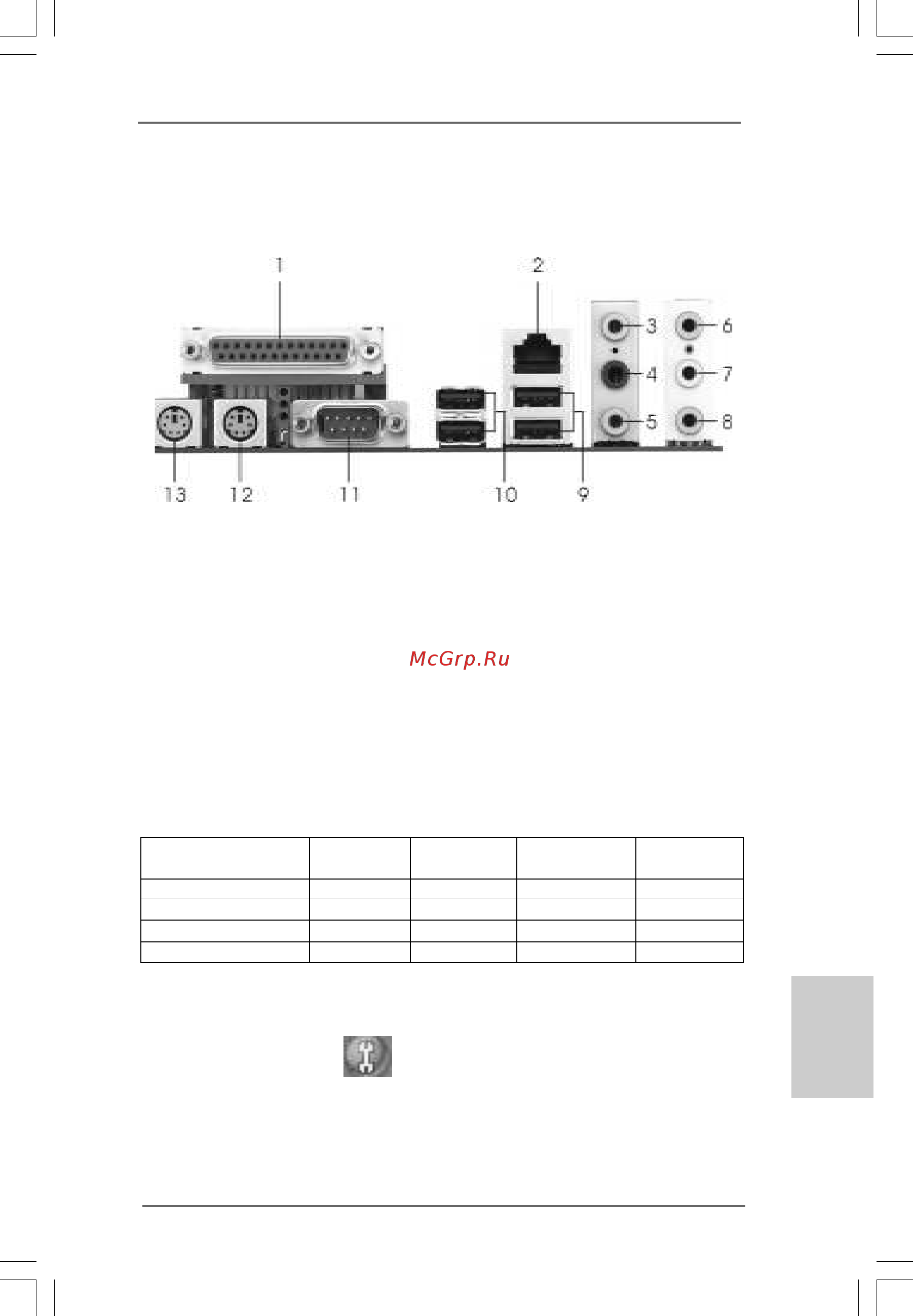

HD 8CH I/O PHD 8CH I/O P

HD 8CH I/O P

anelanel

anel

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.
