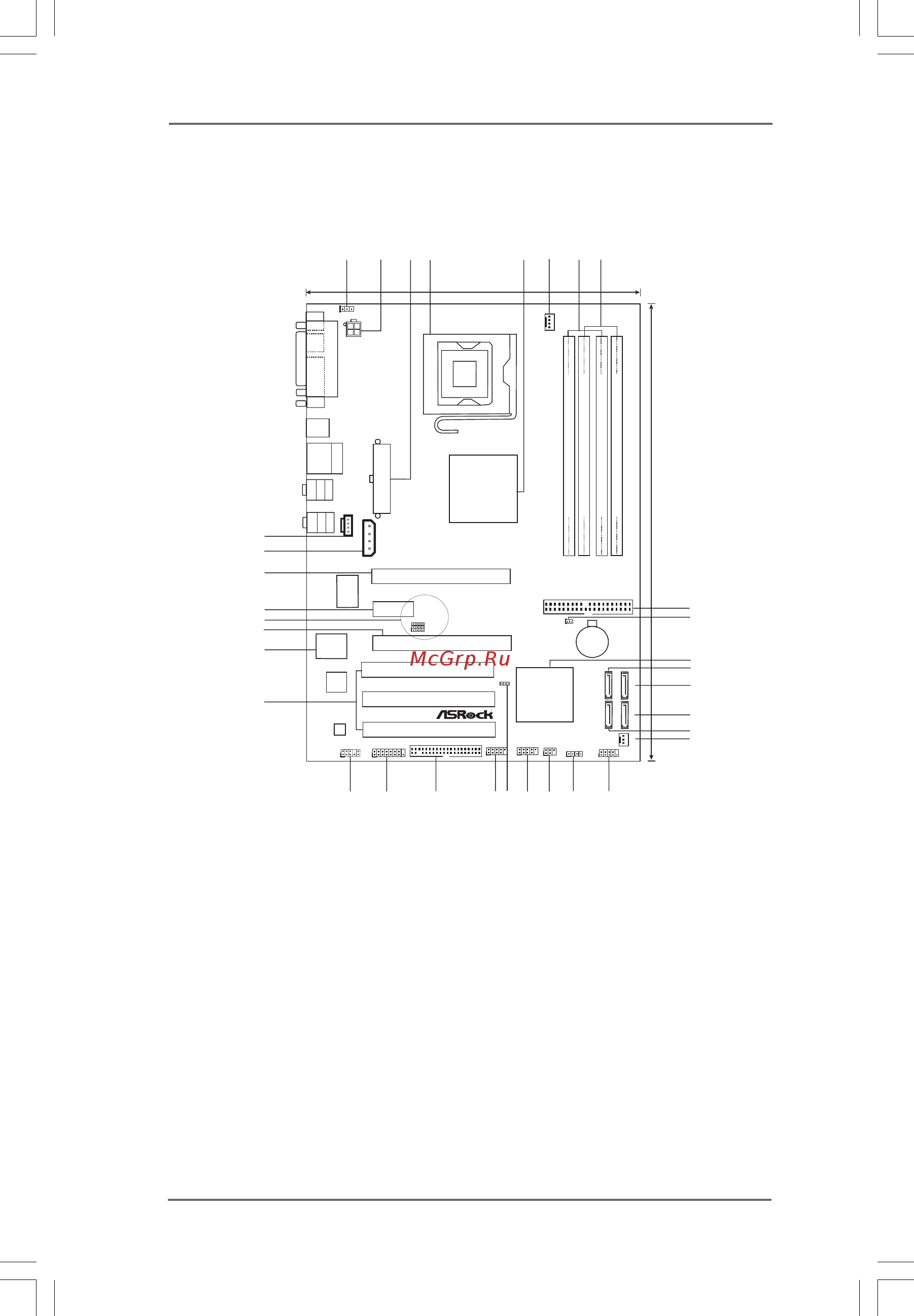

1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout
Intel
925X
Chipset
Intel
ICH6R
ATXPWR1
CD1
ATX 12 V1
1
PS2_USB_PWR1
PARALLEL PORT
COM1
PS2
Mouse
PS2
Keyboard
USB 2.0
T: USB 2
B: USB3
USB 2.0
T: USB0
B: USB1
Top :
RJ-45
Top:
REAR SPK
Center:
SIDE SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Super
I/O
4Mb
BIOS
PCI
LAN
AUDIO
CODEC
PCIE1
PCIE2
CPU_FAN1
CMOS
Battery
SLI/XFIRE_PWR1
AGI_EXPRESS
PCI 1
PCI 2
PCI 3
`
PCI
EXPRESS
1
PCIEX1_EN4
PCIEX1_EN3
PCIEX1_EN2
PCIEX1_EN1
775XFire-RAID
DDRII533
Dual Channel
FSB800
USB2.0
7.1CH HD
IDE1
SATA_3
SATA_2
SATA_0
SATA_1
CLRCMOS1
1
IR1
1
CHA_FAN1
FLOPPY1
1
HD_AUDIO1
HDLED RESET
PLED PWRBTN
USB45
1
SPEAKER1
1
PANEL1
1
1
USB67
11
GAME1
1
30.5cm (12.0 in)
21.8cm (8.6 in)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
24
25
23
17
18
19
20
21
22
26
27
28
29
30
31
32
DDR_II DIMM1 (64/72 bit, 240-pin module)
DDR_II DIMM2 (64/72 bit, 240-pin module)
DDR_II DIMM3 (64/72 bit, 240-pin module)
DDR_II DIMM4 (64/72 bit, 240-pin module)
RoHS
Cedar Mill
FSB800
1
PCIEX1_EN5
28
1 PS2_USB_PWR1 Jumper 16 Chassis Fan Connector (CHA_FAN1)
2 ATX 12V Connector (ATX12V1) 17 System Panel Header (PANEL1)
3 ATX Power Connector (ATXPWR1) 18 Chassis Speaker Header (SPEAKER 1)
4 775-Pin CPU Socket 19 Infrared Module Connector (IR1)
5 North Bridge Controller 20 USB 2.0 Header (USB67, Blue)
6 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB45, Blue)
7 2 x 240-pin DDRII DIMM Slots 22 Floppy Connector (FLOPPY1)
(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 Game Port Header (GAME1)
8 2 x 240-pin DDRII DIMM Slots 24 Front Panel Audio Header (HD_AUDIO1)
(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 PCI Slots (PCI1- 3)
9 IDE1 Connector (IDE1, Blue) 26 BIOS FWH Chip
10 Clear CMOS Jumper (CLRCMOS1) 27 AGI Express Slot (PCI Express x 4)
11 South Bridge Controller 28 PCIEX1_EN1 - 5
12 Serial ATA Connector 2 (SATA_2, black) 29 PCI Express x 1 Slot (PCIE2)
13 Serial ATA Connector 3 (SATA_3, black) 30 PCI Express x 16 Slot (PCIE1)
14 Serial ATA Connector 1 (SATA_1, blue) 31 SLI / XFIRE Power Connector
15 Serial ATA Connector 0 (SATA_0, blue) 32 Internal Audio Connector: CD1 (Black)
