ASRock 775XFire-RAID [11/49] 1 1 1 1 hd 8ch i o hd 8ch i o hd 8ch i o hd 8ch i o hd 8ch i o panel panel panel panel panel

1111

1.51.5

1.5

HD 8CH I/OHD 8CH I/O

HD 8CH I/O

PanelPanel

Panel

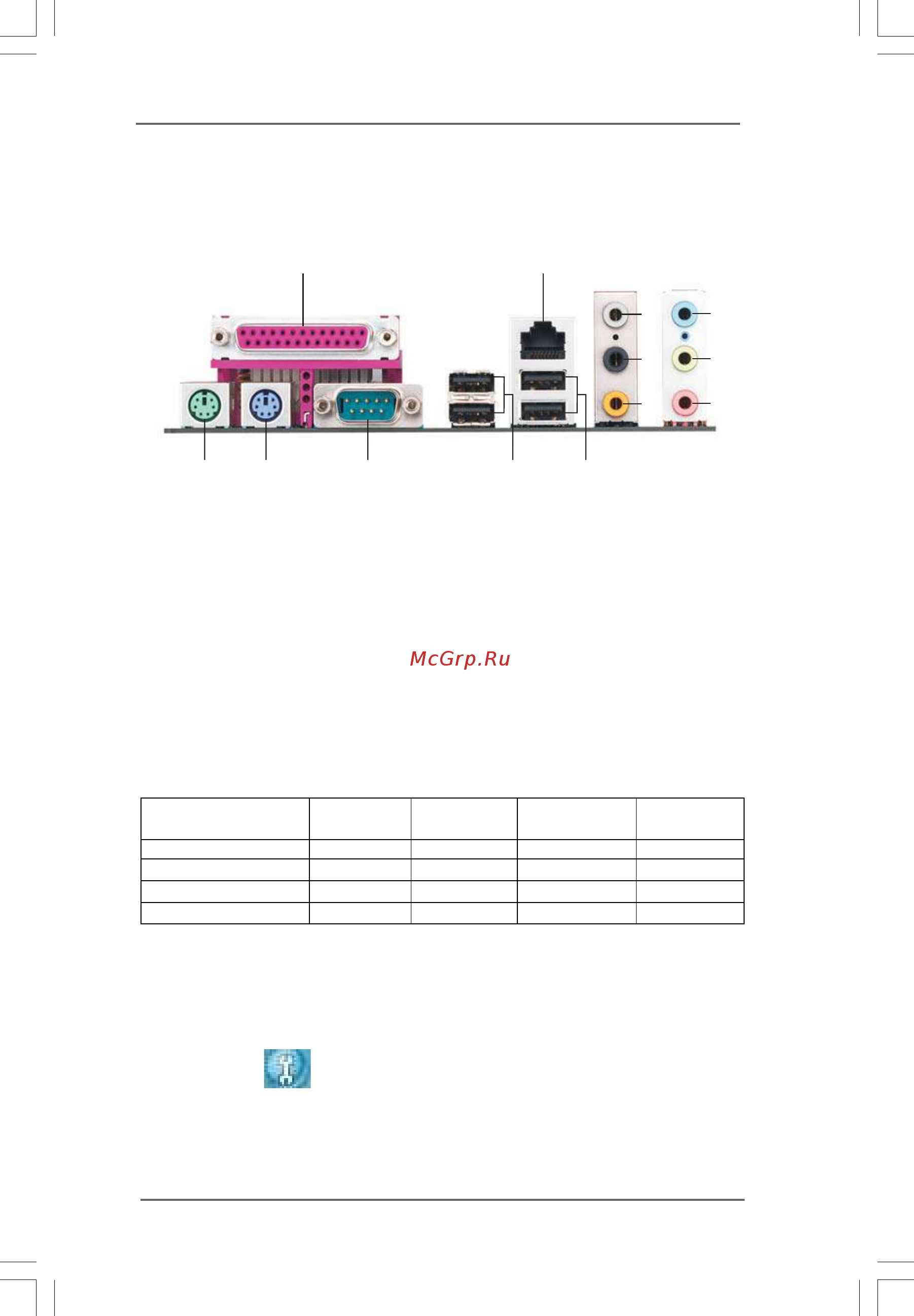

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6VVV--

8VVVV

910

* If you use 8-channel audio and enable Multi-Streaming function, “Side Speaker” will be disabled

. Therefore, only 6-channel audio function will work but not 8-channel audio. To enable Multi-

Streaming function, you need to connect a front panel audio cable to the front panel audio

header. After restarting your computer, you will find “Mixer” tool on your system. Please select

“Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose

“2CH”, “4CH”, or “6CH”, and then you are allowed to select “Realtek HDA Primary output” to use

Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to

use front panel audio to share Side Speaker.
