ASRock P4i945GC Motherboard

EnglishEnglish

English

I/O PI/O P

I/O P

anelanel

anel

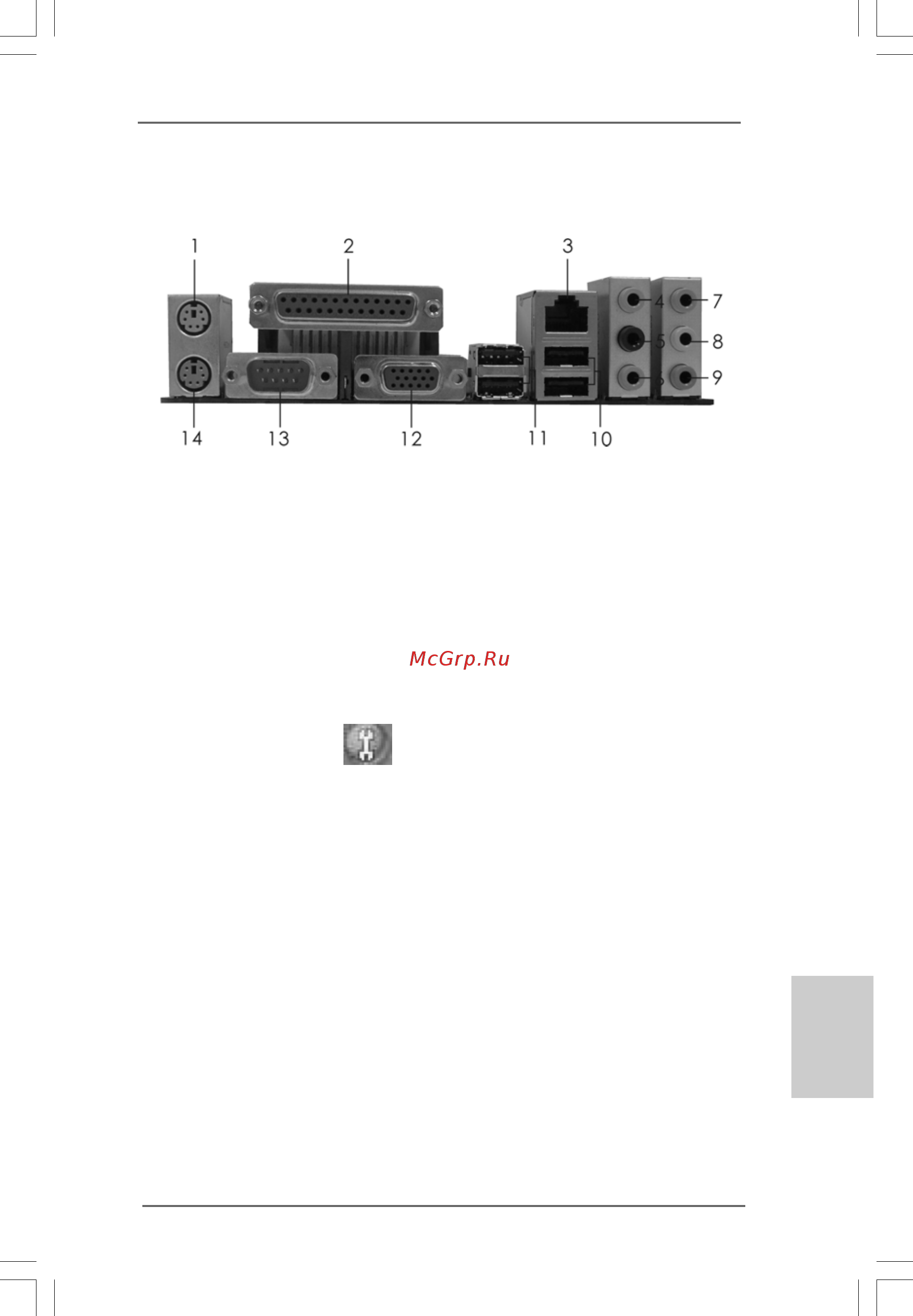

1 PS/2 Mouse Port (Green) * 8 Front Speaker (Lime)

2 Parallel Port 9 Microphone (Pink)

3 RJ-45 Port 10 USB 2.0 Ports (USB01)

4 Side Speaker (Gray) 11 USB 2.0 Ports (USB23)

5 Rear Speaker (Black) 12 Serial Port: COM1

6 Central / Bass (Orange) 13 VGA Port

7 Line In (Light Blue) 14 PS/2 Keyboard Port (Purple)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.
