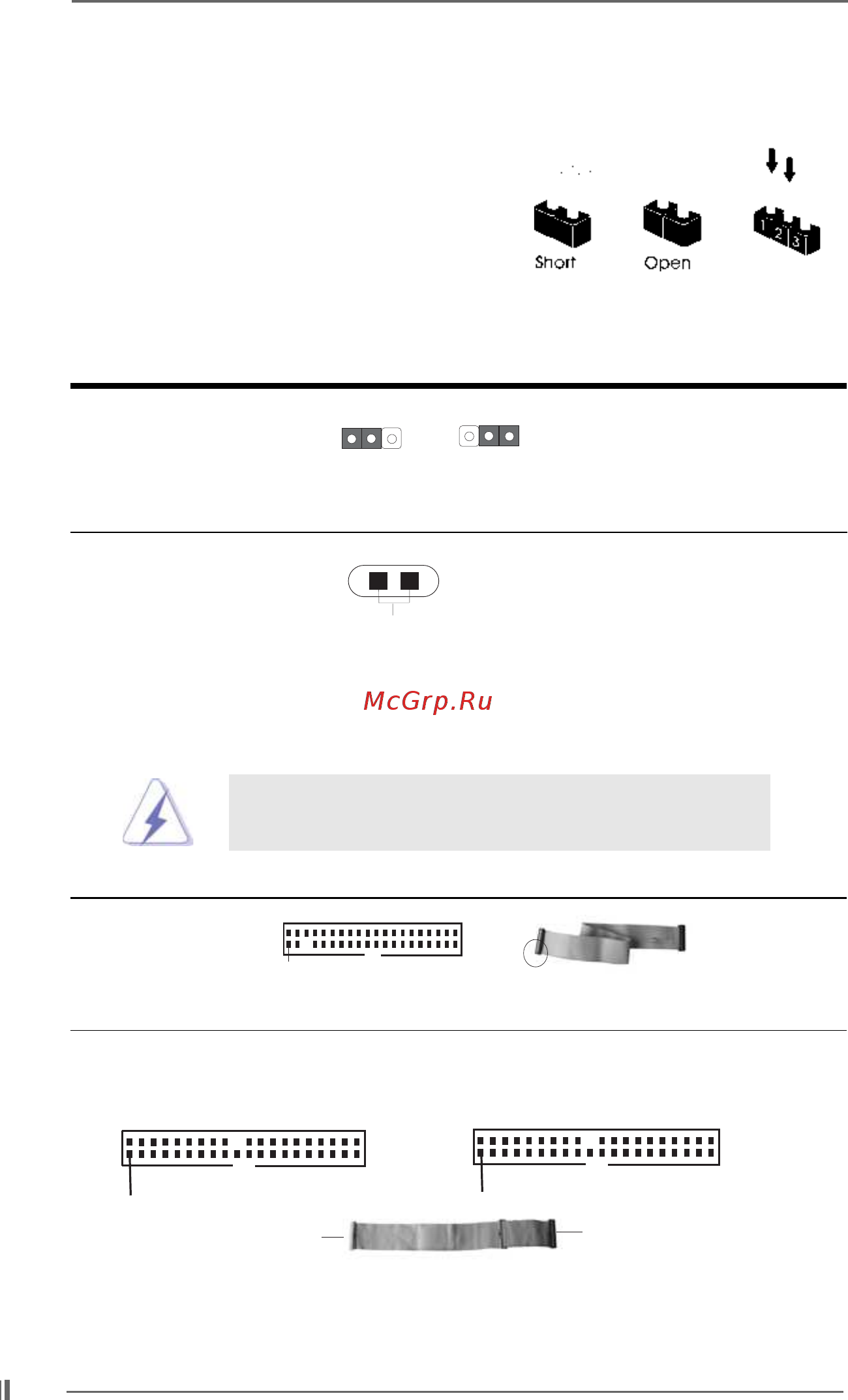

2.7 Jumpers Setup2.7 Jumpers Setup

2.7 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “SHORT”. If no jumper

cap is placed on pins, the jumper is “OPEN”.

The illustration shows a 3-pin jumper whose

pin1 and pin2 are “SHORT” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.6/p.7 item 22) +5VSB (standby) for PS/2

+5V +5VSB or USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current.

CLRCMOS Disconnect the power cord,

(see p.6/p.7 item 17) then short the solder points

to clear CMOS by using

metal material, e.g., a paper

clip.

2.8 Connectors2.8 Connectors

2.8 Connectors

Connectors are NOT jumpers. DO NOT place jumper

caps over these connectors.

Connector Figure Description

FDD connector

(33-pin FLOPPY1)

(see p.6/p.7 item 10)

Note: Match the red marking on the floppy ribbon cable with Pin1

Solder points

FLOPPY1

Pin1

Red marking

80-Pin ATA 100/133 cable

Connect to the IDE devices

Connect to the motherboard

BlackBlue

IDE1

PIN1

IDE2

PIN1

Primary IDE connector (Blue)

(39-pin IDE1)

(see p.6/p.7 item 7)

Secondary IDE connector (Black)

(39-pin IDE2)

(see p.6/p.7 item 8)
