English
35
X570 Phantom Gaming X

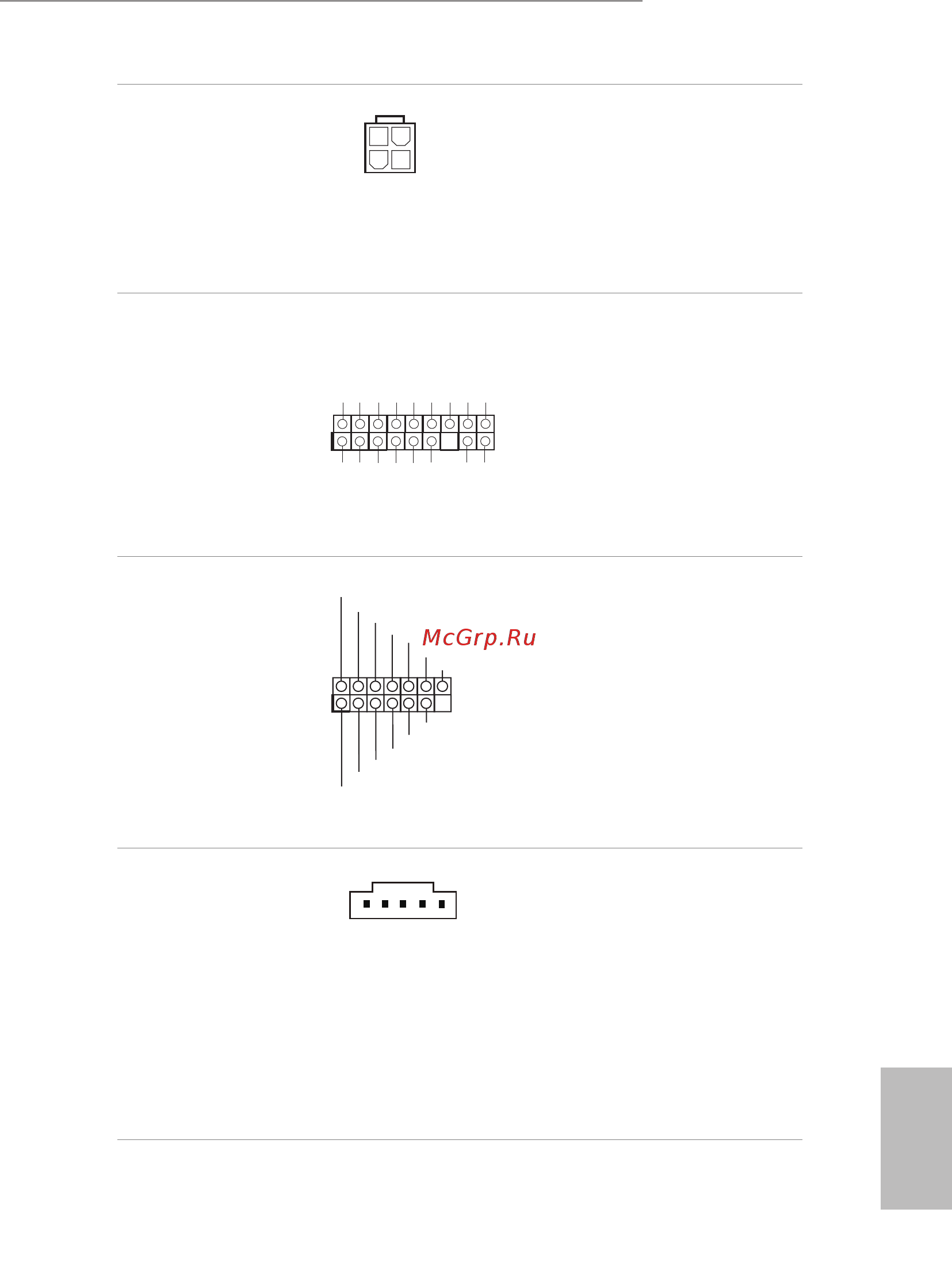

ATX 12V Power
Connector
(4-pin ATX12V2)
(see p.8, No. 2)
Please connect an ATX
12V power supply to this
connector.
*e power supply plug
ts into this connector in
only one orientation.
LPC/TPM Header
(17-pin TPMS1)
(see p.8, No. 30)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.8, No. 33)
is connector supports SPI
Trusted Platform Module (TPM)
system, which can securely store
keys, digital certicates, pass-
words, and data. A TPM system
also helps enhance network
security, protects digital
identities, and ensures platform
integrity.
underbolt AIC
Connector
(5-pin TB1)
(see p.8, No. 31)
Please connect a underbolt™
add-in card (AIC) to the
underbolt AIC connector via
the GPIO cable.
*Please install the underbolt™
AIC card to PCIE5 (default
slot).
*For the further information,
please visit www.asrock.com.
1
GN D
SM B_DATA_MAIN
L A D2
L A D1
GN D
S_ PWRDWN #
SE RIRQ #
GN
D
P CICL K
P CIRST #
L A D3
+3 V
L A D0
+3VS B
GN D
FR AM E
SM B_CLK_MAIN
1
1
SPI_DQ3
+3.3V
SPI_DQ2
SPI_CS0
Dummy
CLK
SPI_MISO
SPI_MOSI
GND
SPI_TPM_CS#
RST#
RSMRST#
TPM_PIRQ
