M-Audio DELTA 44 [4/39] Quick guide to getting started

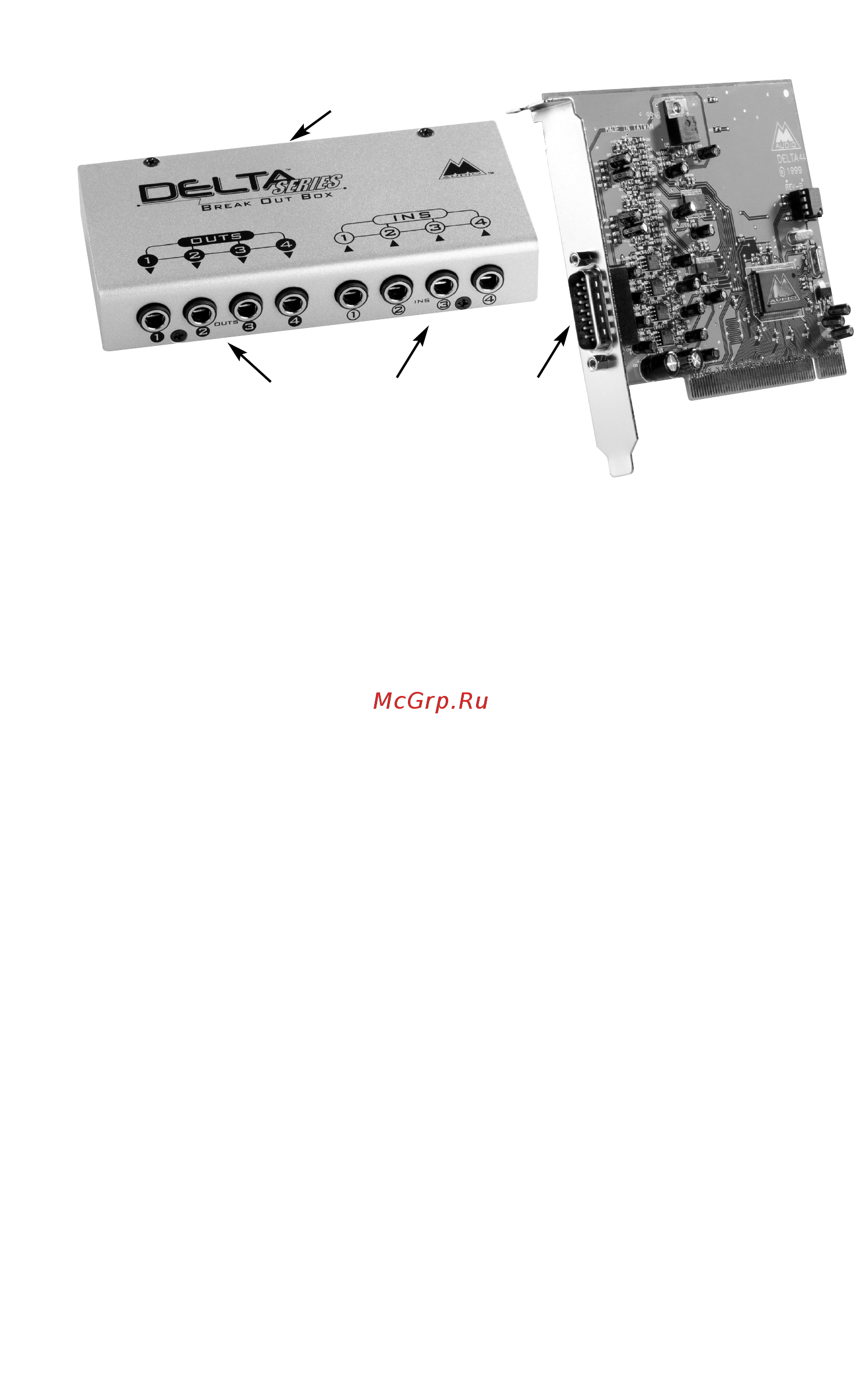

Break-Out Box Front Panel:

1. Analog OUTS 1-4: These jacks output analog audio to a variety of external

sources. Each jack is 1/4” TRS (Tip-Ring-Sleeve) and is compatible with 1/4”

TRS (balanced) or TS (Tip-Sleeve unbalanced) connections.

2. Analog INS 1-4: These jacks input analog audio from a variety of external

sources. Each jack is 1/4” TRS (Tip-Ring-Sleeve) and is compatible with 1/4”

TRS (balanced) or TS (Tip-sleeve unbalanced) connections.

Break-Out Box Back Panel:

3. Host Cable connector: This 15-pin D-sub connector is used to attach the external

break-out box to the PCI host card, using the supplied host cable.

PCI Host Adapter Card:

4. Host Cable connector: This 15-pin D-sub connector attaches to the supplied host

cable to allow communication between the PCI host card and the break-out box.

Quick Guide to Getting Started

Here is a list of the steps required to get your Delta 44 up and running:

1. Physically install the card in your computer and connect it to the Delta 44 break-

out box (see ‘Hardware Installation’).
