M-Audio DELTA 44 [6/39] Delta driver software installation

With your computer turned off:

9. Place the Delta 44 break-out box on a desktop in a convenient but secure place,

or mount the unit in a 19” rack-mount chassis. Rack mounting may be

accomplished with a universal rack-mount tray, using a 5mm screw through the

tray and into the mounting hole on the bottom of the Delta 44 break-out box.

10. Connect one end of the supplied host cable to the 15-pin D-sub connector on the

break-out box.

11. Connect the other end of the host cable to the 15-pin D-sub connector on the

Delta 44 PCI Host card that now resides in your computer.

Delta Driver & Software Installation

The Delta 44 system includes a “Drivers CD” for Windows 98/95/NT and

Macintosh, containing all Windows drivers, Macintosh drivers (including all ASIO

drivers), and Delta Control Panel software. To install these on your system, please

follow these steps:

Windows 98 Installation

1. After installing the Delta 44 hardware, boot your system and start Windows.

During the Windows boot procedure, the new hardware will be automatically

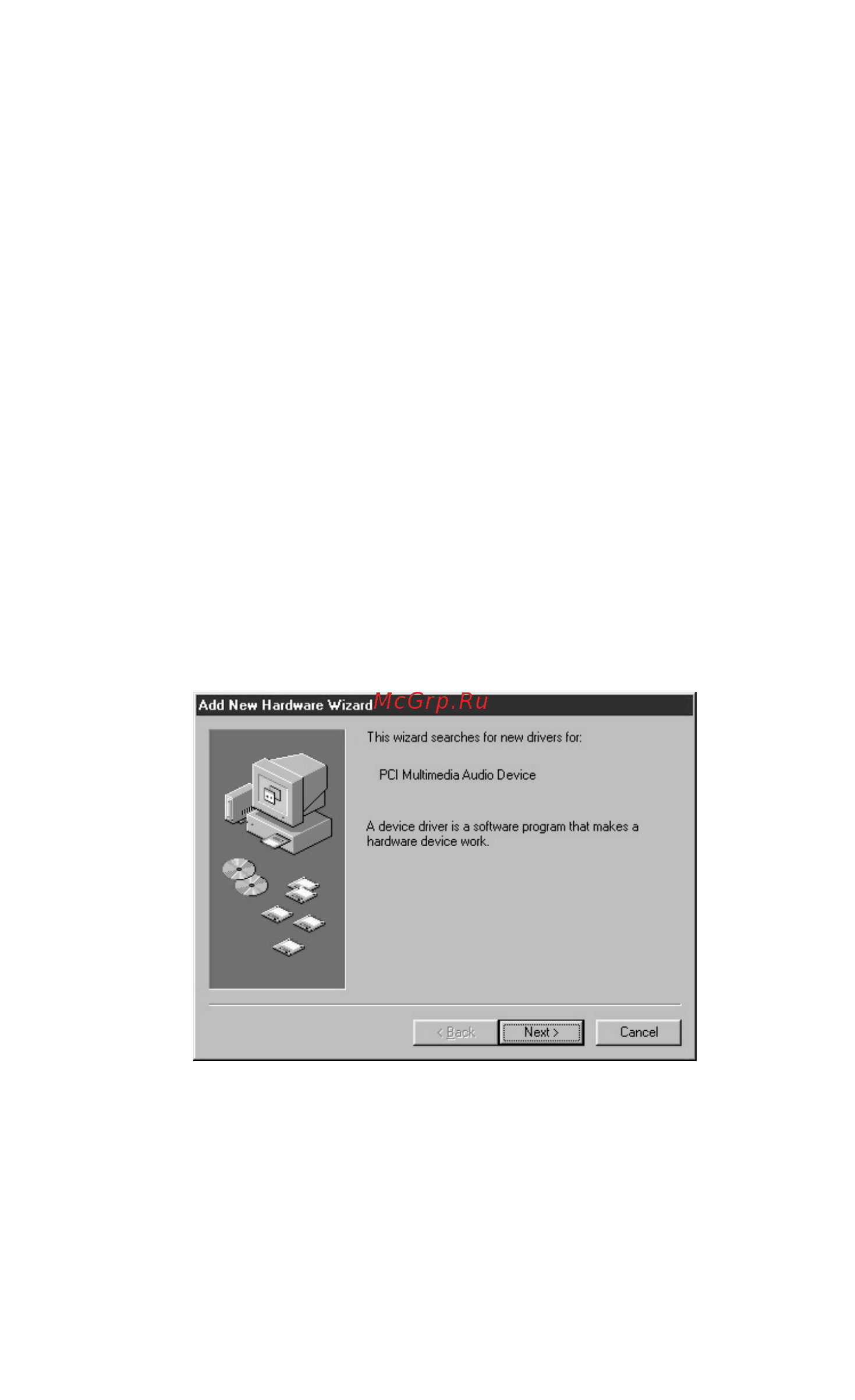

detected by the ‘Add New Hardware Wizard’, as shown here. Click ‘Next>’.

2. The ‘Add New Hardware Wizard’ will now ask how to locate the driver.

“Search for the best driver for your device” is already selected. Click ‘Next>’.

3. Windows will give you a selection of locations to search. Make sure that only

“Choose a Path” is checked, or click on the check box to do so. Insert the Drivers

CD into your CD ROM drive. Type in the drive letter of your CD drive (we will

assume here that it is D:\) and the path to the Delta drivers, which will be

D:\DeltaSeries\Delta9X. Click ‘Next>’.

4. The ‘Wizard’ reports that its Windows driver file search has found the M Audio

Delta 44. Click ‘Next>’.
